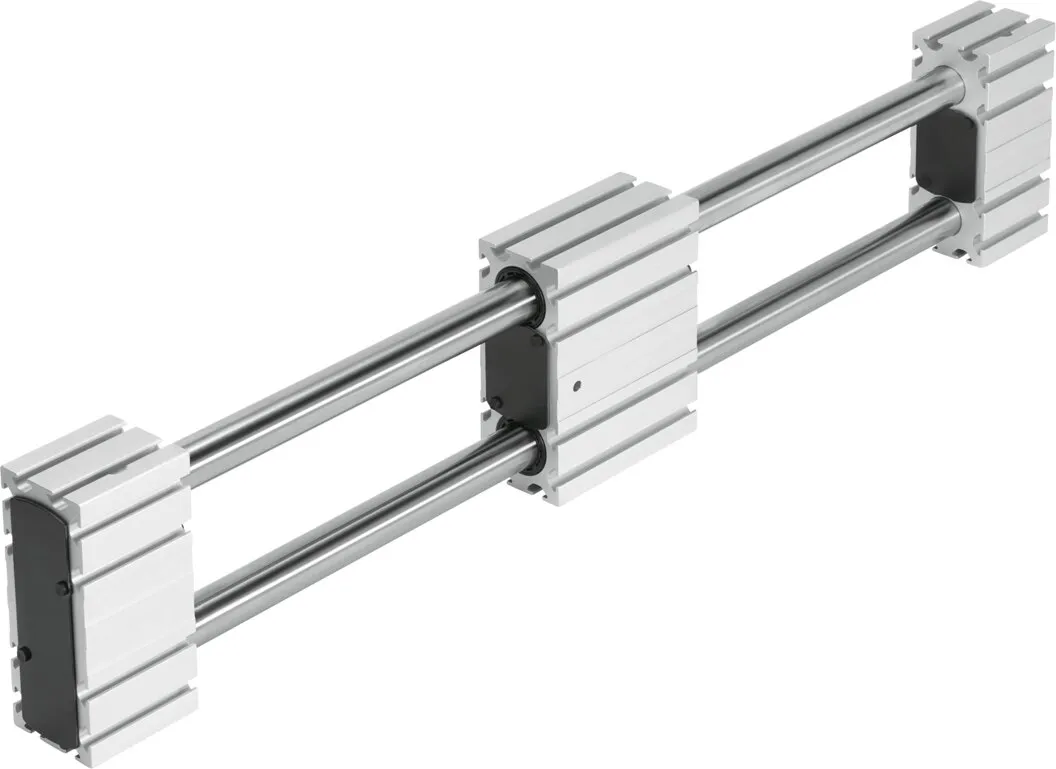

Festo ELFR-…-55- –
For toothed belt axes ELGR-TB (drive axes) , For spindle/toothed belt axes ELGA (drive axes) , For supporting forces and torques in multi-axis applications , High torsional resistance
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For toothed belt axes ELGR-TB (drive axes) , For spindle/toothed belt axes ELGA (drive axes) , For supporting forces and torques in multi-axis applications , High torsional resistance
Specification
| Working Stroke | 50, 1500 mm |
|---|---|
| Size | 55 |
| Mounting Position | optional |
| Guide | Plain-bearing guide, Recirculating ball bearing guide |
| Design | Passive guide axis |
| Symbol | 00992984 |
| Max. Acceleration | 50 m/s² |
| Max. Speed | 1, 3 m/s |
| Corrosion Resistance Class Crc | 0 – No corrosion stress |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Degree Of Protection | IP20 |
| Ambient Temperature | -10, 50 °C |
| 2Nd Moment Of Area Iy | 38300 mm⁴ |
| 2Nd Moment Of Area Iz | 41180 mm⁴ |
| Max. Force Fy | 300 N |
| Max. Force Fz | 300 N |
| Max. Idle Running Transfer Resistance | 10 N |
| Reference Service Life | 5000 km |
| Basic Weight For Mm Stroke | 4550 g |
| Additional Weight Per 10 Mm Stroke | 77 g |
| Material Profile | Wrought aluminium alloy, Anodised |
| Note On Materials | RoHS-compliant |
| Material Drive Cover | Wrought aluminium alloy, Anodised |
| Material Guide Rail | Steel |
| Material Slide | Wrought aluminium alloy, Anodised |
