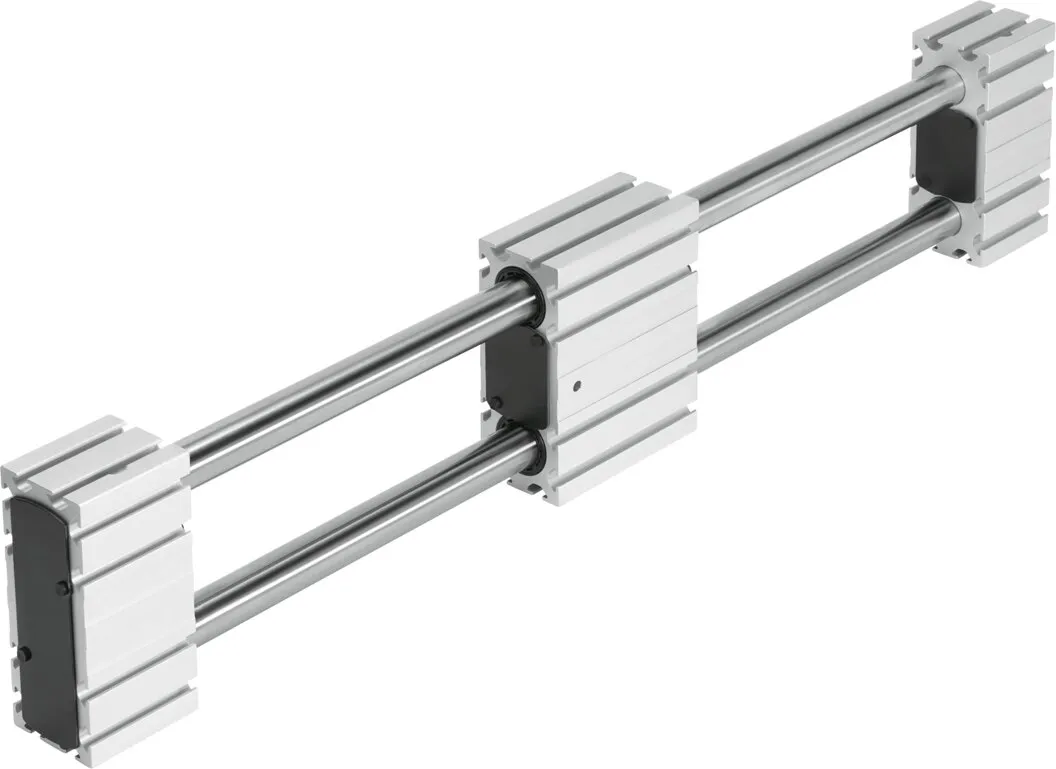

Festo ELFR-…-45- –
For toothed belt axes ELGR-TB (drive axes) , For spindle/toothed belt axes ELGA (drive axes) , For supporting forces and torques in multi-axis applications , High torsional resistance
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For toothed belt axes ELGR-TB (drive axes) , For spindle/toothed belt axes ELGA (drive axes) , For supporting forces and torques in multi-axis applications , High torsional resistance
Specification
| Working Stroke |
50, 1000 mm |
|---|---|
| Size |
45 |
| Mounting Position |
optional |
| Guide |
Plain-bearing guide, Recirculating ball bearing guide |
| Design |
Passive guide axis |
| Symbol |
00992984 |
| Max. Acceleration |
50 m/s² |
| Max. Speed |
1, 3 m/s |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Degree Of Protection |
IP20 |
| Ambient Temperature |
-10, 50 °C |
| 2Nd Moment Of Area Iy |
15710 mm⁴ |
| 2Nd Moment Of Area Iz |
17940 mm⁴ |
| Max. Force Fy |
100 N |
| Max. Force Fz |
100 N |
| Max. Idle Running Transfer Resistance |
6 N |
| Reference Service Life |
5000 km |
| Basic Weight For Mm Stroke |
2670 g |
| Additional Weight Per 10 Mm Stroke |
49 g |
| Material Profile |
Wrought aluminium alloy, Anodised |
| Note On Materials |
RoHS-compliant |
| Material Drive Cover |
Wrought aluminium alloy, Anodised |
| Material Guide Rail |
Steel |
| Material Slide |
Wrought aluminium alloy, Anodised |
