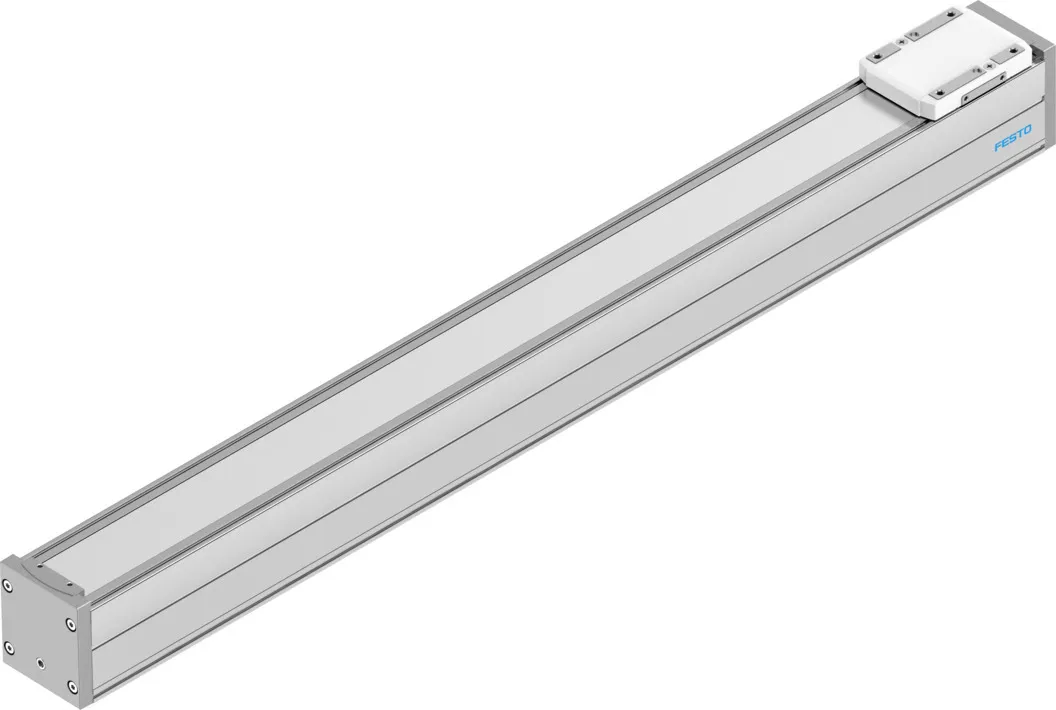

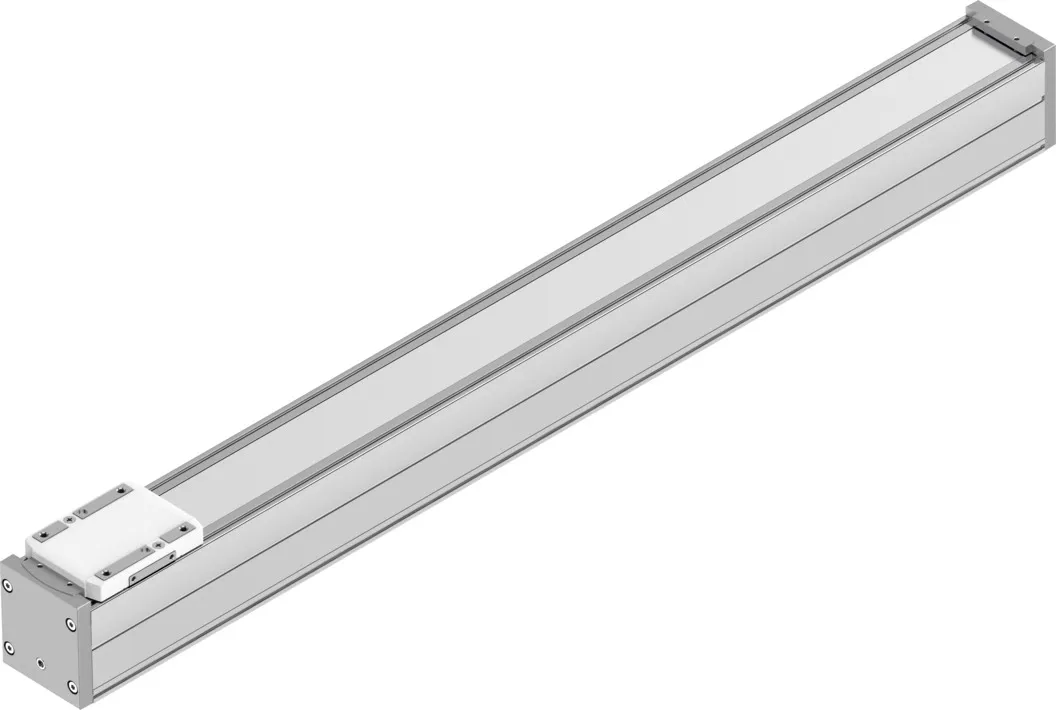

Festo ELFC-KF-80-800
Toothed belt axes with recirculating ball bearing guide ELGA-BS-KF/ELGA-TB-KF (drive axes) , Driveless linear guide unit with guide and freely movable slide unit , For supporting forces and torques in…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Toothed belt axes with recirculating ball bearing guide ELGA-BS-KF/ELGA-TB-KF (drive axes) , Driveless linear guide unit with guide and freely movable slide unit , For supporting forces and torques in multi-axis applications , High torsional resistance , Reduced vibrations with dynamic loads
Specification
| Working Stroke | 800 mm |
|---|---|
| Size | 80 |
| Mounting Position | optional |
| Guide | Recirculating ball bearing guide |
| Design | Guidance |
| Symbol | 00992984 |
| Position Detection | Via proximity switch, Via inductive sensors |
| Max. Acceleration | 15 m/s² |
| Max. Speed | 1.5 m/s |
| Duty Cycle | 100% |
| Corrosion Resistance Class Crc | 0 – No corrosion stress |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Suitability For The Production Of Li Ion Batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom Class | Class 7 according to ISO 14644-1 |
| Degree Of Protection | IP40 |
| Ambient Temperature | 50 °C |
| 2Nd Moment Of Area Iy | 1370000 mm⁴ |
| 2Nd Moment Of Area Iz | 1660000 mm⁴ |
| Max. Force Fy | 5543 N |
| Max. Force Fz | 5543 N |
| Max. Moment Mx | 59.8 Nm |
| Max. Moment My | 56.2 Nm |
| Max. Moment Mz | 56.2 Nm |
| Max. Force Fy Total Axis | 900 N |
| Max. Force Fz Total Axis | 2700 N |
| Max. Moment Mx Total Axis | 59.8 Nm |
| Max. Moment My Total Axis | 56.2 Nm |
| Max. Moment Mz Total Axis | 56.2 Nm |
| Torsional Mass Moment Of Inertia It | 90500 mm⁴ |
| Displacement Force | 15 N |
| Reference Service Life | 5000 km |
| Maintenance Interval | Life-time lubrication |
| Fy At Theoretical Life Value Of 100 Km (Only Guide Consideration) | 20400 N |
| Fz At Theoretical Life Value Of 100 Km (Only Guide Consideration) | 20400 N |
| Mx At Theoretical Life Value Of 100 Km (Only Guide Consideration) | 220 Nm |
| My At Theoretical Life Value Of 100 Km (Only Guide Consideration) | 207 Nm |
| Mz At Theoretical Life Value Of 100 Km (Only Guide Consideration) | 207 Nm |
| Moving Mass | 815 g |
| Basic Weight For Mm Stroke | 1905 g |
| Additional Weight Per 10 Mm Stroke | 73 g |
| Dynamic Deflection (Moving Load) | 0.05% of the axis length, max. 0.5 mm |
| Static Deflection (Load In Standstill) | 0.1% of the axis length |
| Material End Cap | Painted die cast aluminium |
| Material Profile | Anodised wrought aluminium alloy |
| Note On Materials | RoHS-compliant |
| Material Cover Tape | High-alloy stainless steel |
| Material Guide Slide | Steel |
| Material Guide Rail | Steel |
| Material Slide | Die-cast aluminium |
