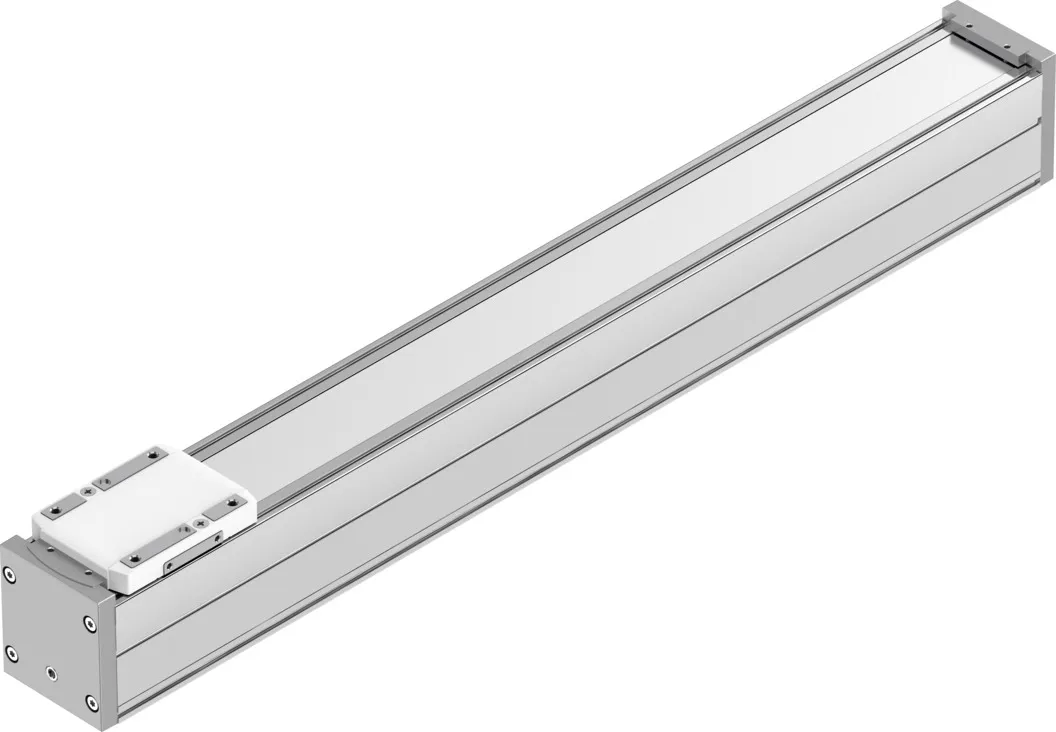

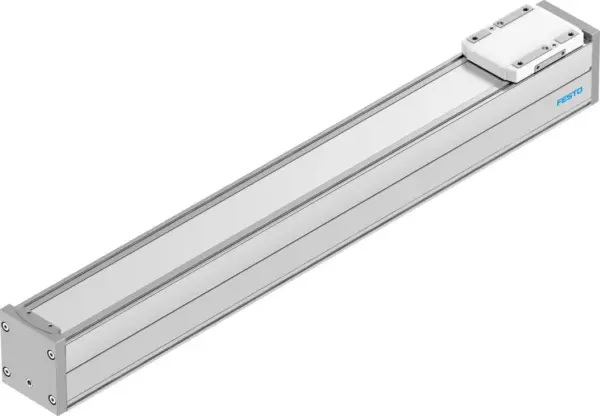

Festo ELFC-KF-80-600
Toothed belt axes with recirculating ball bearing guide ELGA-BS-KF/ELGA-TB-KF (drive axes) , Driveless linear guide unit with guide and freely movable slide unit , For supporting forces and torques in…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Toothed belt axes with recirculating ball bearing guide ELGA-BS-KF/ELGA-TB-KF (drive axes) , Driveless linear guide unit with guide and freely movable slide unit , For supporting forces and torques in multi-axis applications , High torsional resistance , Reduced vibrations with dynamic loads
Specification
| Working Stroke |
600 mm |
|---|---|
| Size |
80 |
| Mounting Position |
optional |
| Guide |
Recirculating ball bearing guide |
| Design |
Guidance |
| Symbol |
00992984 |
| Position Detection |
Via proximity switch, Via inductive sensors |
| Max. Acceleration |
15 m/s² |
| Max. Speed |
1.5 m/s |
| Duty Cycle |
100% |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Suitability For The Production Of Li Ion Batteries |
Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom Class |
Class 7 according to ISO 14644-1 |
| Degree Of Protection |
IP40 |
| Ambient Temperature |
50 °C |
| 2Nd Moment Of Area Iy |
1370000 mm⁴ |
| 2Nd Moment Of Area Iz |
1660000 mm⁴ |
| Max. Force Fy |
5543 N |
| Max. Force Fz |
5543 N |
| Max. Moment Mx |
59.8 Nm |
| Max. Moment My |
56.2 Nm |
| Max. Moment Mz |
56.2 Nm |
| Max. Force Fy Total Axis |
900 N |
| Max. Force Fz Total Axis |
2700 N |
| Max. Moment Mx Total Axis |
59.8 Nm |
| Max. Moment My Total Axis |
56.2 Nm |
| Max. Moment Mz Total Axis |
56.2 Nm |
| Torsional Mass Moment Of Inertia It |
90500 mm⁴ |
| Displacement Force |
15 N |
| Reference Service Life |
5000 km |
| Maintenance Interval |
Life-time lubrication |
| Fy At Theoretical Life Value Of 100 Km (Only Guide Consideration) |
20400 N |
| Fz At Theoretical Life Value Of 100 Km (Only Guide Consideration) |
20400 N |
| Mx At Theoretical Life Value Of 100 Km (Only Guide Consideration) |
220 Nm |
| My At Theoretical Life Value Of 100 Km (Only Guide Consideration) |
207 Nm |
| Mz At Theoretical Life Value Of 100 Km (Only Guide Consideration) |
207 Nm |
| Moving Mass |
815 g |
| Basic Weight For Mm Stroke |
1905 g |
| Additional Weight Per 10 Mm Stroke |
73 g |
| Dynamic Deflection (Moving Load) |
0.05% of the axis length, max. 0.5 mm |
| Static Deflection (Load In Standstill) |
0.1% of the axis length |
| Material End Cap |
Painted die cast aluminium |
| Material Profile |
Anodised wrought aluminium alloy |
| Note On Materials |
RoHS-compliant |
| Material Cover Tape |
High-alloy stainless steel |
| Material Guide Slide |
Steel |
| Material Guide Rail |
Steel |
| Material Slide |
Die-cast aluminium |
