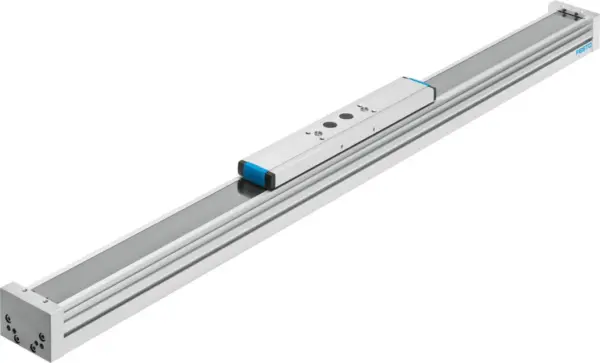

Festo ELFA-RF-70- –
For toothed belt axis with roller bearing guide ELGA-TB-RF (drive axes) , Driveless linear guide unit with guide and freely movable slide unit , For supporting forces and torques in multi-axis applica…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For toothed belt axis with roller bearing guide ELGA-TB-RF (drive axes) , Driveless linear guide unit with guide and freely movable slide unit , For supporting forces and torques in multi-axis applications , High torsional resistance , Reduced vibrations with dynamic loads
Specification
| Working Stroke |
50, 7000 mm |
|---|---|
| Size |
70 |
| Mounting Position |
optional |
| Guide |
Roller bearing guide |
| Design |
Guidance |
| Symbol |
00992984 |
| Max. Acceleration |
50 m/s² |
| Max. Speed |
10 m/s |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Degree Of Protection |
IP40 |
| Ambient Temperature |
-10, 60 °C |
| 2Nd Moment Of Area Iy |
139140 mm⁴ |
| 2Nd Moment Of Area Iz |
433100 mm⁴ |
| Max. Force Fy |
500 N |
| Max. Force Fz |
500 N |
| Max. Idle Running Transfer Resistance |
25 N |
| Max. Moment Mx |
11 Nm |
| Max. Force Fy Total Axis |
500 N |
| Max. Force Fz Total Axis |
500 N |
| Max. Moment Mx Total Axis |
11 Nm |
| Reference Service Life |
10000 km |
| Fy At Theoretical Life Value Of 100 Km (Only Guide Consideration) |
2320 N |
| Fz At Theoretical Life Value Of 100 Km (Only Guide Consideration) |
2320 N |
| Mx At Theoretical Life Value Of 100 Km (Only Guide Consideration) |
51 Nm |
| Additional Weight Per 10 Mm Stroke |
30.54 g |
| Dynamic Deflection (Moving Load) |
0.05% of the axis length, max. 0.5 mm |
| Static Deflection (Load In Standstill) |
0.1% of the axis length |
| Type Of Mounting |
With accessories |
| Material End Cap |
Wrought aluminium alloy, Anodised |
| Material Profile |
Wrought aluminium alloy, Anodised |
| Note On Materials |
RoHS-compliant |
| Material Cover Tape |
Stainless steel strip |
| Material Guide |
Steel |
| Material Slide |
Wrought aluminium alloy, Anodised |
