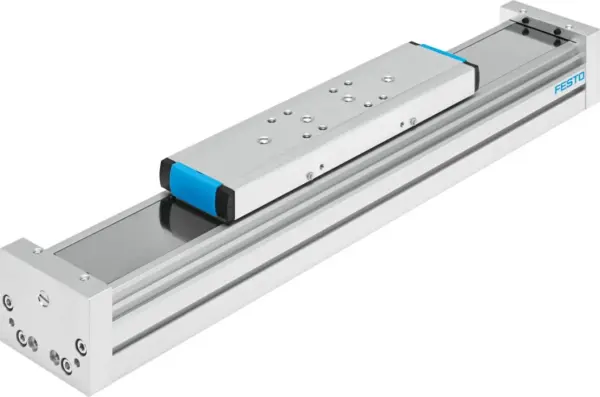

Festo ELFA-KF-80- –
Toothed belt axes with recirculating ball bearing guide ELGA-BS-KF/ELGA-TB-KF (drive axes) , Driveless linear guide unit with guide and freely movable slide unit , For supporting forces and torques in…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Toothed belt axes with recirculating ball bearing guide ELGA-BS-KF/ELGA-TB-KF (drive axes) , Driveless linear guide unit with guide and freely movable slide unit , For supporting forces and torques in multi-axis applications , High torsional resistance , Reduced vibrations with dynamic loads
Specification
| Working Stroke |
50, 8500 mm |
|---|---|
| Size |
80 |
| Mounting Position |
optional |
| Guide |
Recirculating ball bearing guide |
| Design |
Guidance |
| Symbol |
00992984 |
| Max. Acceleration |
50 m/s² |
| Max. Speed |
5 m/s |
| Duty Cycle |
100% |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Degree Of Protection |
IP40 |
| Ambient Temperature |
-10, 60 °C |
| 2Nd Moment Of Area Iy |
257180 mm⁴ |
| 2Nd Moment Of Area Iz |
913660 mm⁴ |
| Max. Force Fy |
2500 N |
| Max. Force Fz |
3050 N |
| Max. Idle Running Transfer Resistance |
12 N |
| Max. Moment Mx |
36 Nm |
| Max. Moment My |
228 Nm |
| Max. Moment Mz |
228 Nm |
| Max. Force Fy Total Axis |
2500 N |
| Max. Force Fz Total Axis |
3050 N |
| Max. Moment Mx Total Axis |
36 Nm |
| Max. Moment My Total Axis |
228 Nm |
| Max. Moment Mz Total Axis |
228 Nm |
| Fy At Theoretical Life Value Of 100 Km (Only Guide Consideration) |
9200 N |
| Fz At Theoretical Life Value Of 100 Km (Only Guide Consideration) |
11224 N |
| Mx At Theoretical Life Value Of 100 Km (Only Guide Consideration) |
132 Nm |
| My At Theoretical Life Value Of 100 Km (Only Guide Consideration) |
839 Nm |
| Mz At Theoretical Life Value Of 100 Km (Only Guide Consideration) |
839 Nm |
| Weight Of Slide |
1610 g |
| Weight Of Additional Slide |
1610 g |
| Basic Weight For Mm Stroke |
3740 g |
| Additional Weight Per 10 Mm Stroke |
49 g |
| Material Profile |
Wrought aluminium alloy, Anodised |
| Note On Materials |
RoHS-compliant |
| Material Cover Tape |
Stainless steel strip |
| Material Guide Slide |
Stainless steel |
| Material Guide Rail |
Stainless steel |
| Material Slide |
Wrought aluminium alloy, Anodised |
