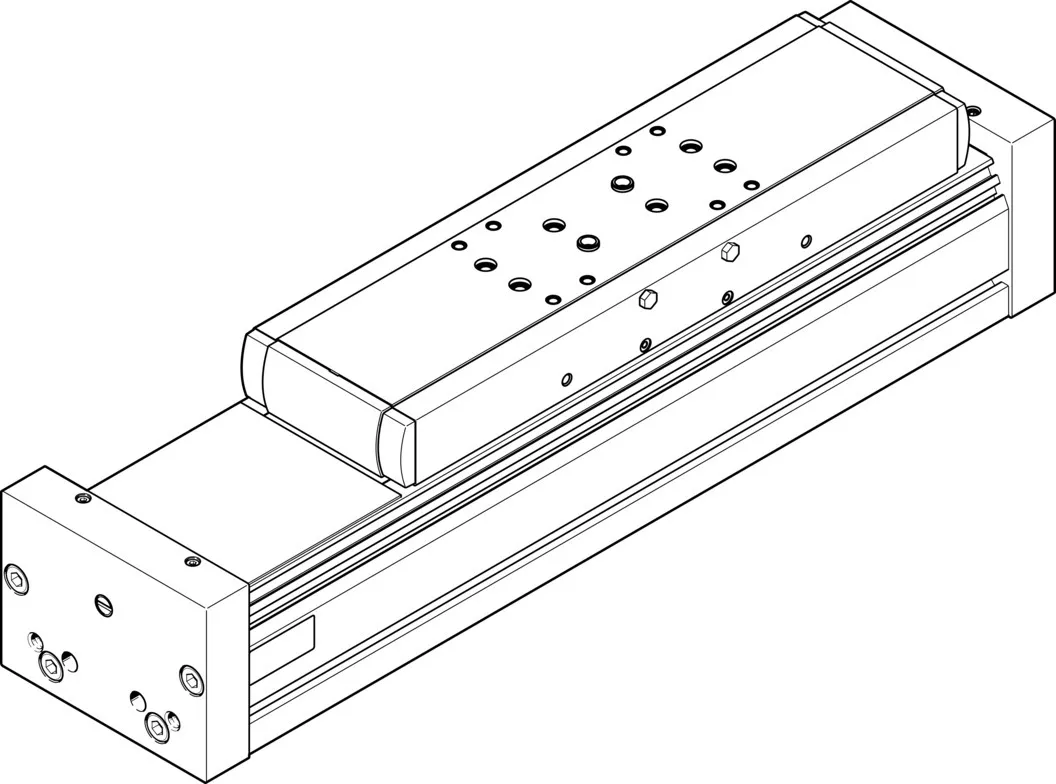

Toothed belt axes with recirculating ball bearing guide ELGA-BS-KF/ELGA-TB-KF (drive axes) , Driveless linear guide unit with guide and freely movable slide unit , For supporting forces and torques in…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Toothed belt axes with recirculating ball bearing guide ELGA-BS-KF/ELGA-TB-KF (drive axes) , Driveless linear guide unit with guide and freely movable slide unit , For supporting forces and torques in multi-axis applications , High torsional resistance , Reduced vibrations with dynamic loads
Specification
| Working Stroke | 50, 8500 mm |
|---|---|
| Size | 120 |
| Mounting Position | optional |
| Guide | Recirculating ball bearing guide |
| Design | Guidance |
| Symbol | 00992984 |
| Max. Acceleration | 50 m/s² |
| Max. Speed | 5 m/s |
| Duty Cycle | 100% |
| Corrosion Resistance Class Crc | 0 – No corrosion stress |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Degree Of Protection | IP40 |
| Ambient Temperature | -10, 60 °C |
| 2Nd Moment Of Area Iy | 1264580 mm⁴ |
| 2Nd Moment Of Area Iz | 4365790 mm⁴ |
| Max. Force Fy | 5500 N |
| Max. Force Fz | 6890 N |
| Max. Idle Running Transfer Resistance | 23 N |
| Max. Moment Mx | 104 Nm |
| Max. Moment My | 680 Nm |
| Max. Moment Mz | 680 Nm |
| Max. Force Fy Total Axis | 5500 N |
| Max. Force Fz Total Axis | 6890 N |
| Max. Moment Mx Total Axis | 104 Nm |
| Max. Moment My Total Axis | 680 Nm |
| Max. Moment Mz Total Axis | 680 Nm |
| Fy At Theoretical Life Value Of 100 Km (Only Guide Consideration) | 20240 N |
| Fz At Theoretical Life Value Of 100 Km (Only Guide Consideration) | 25355 N |
| Mx At Theoretical Life Value Of 100 Km (Only Guide Consideration) | 383 Nm |
| My At Theoretical Life Value Of 100 Km (Only Guide Consideration) | 2502 Nm |
| Mz At Theoretical Life Value Of 100 Km (Only Guide Consideration) | 2502 Nm |
| Weight Of Slide | 3600 g |
| Weight Of Additional Slide | 3600 g |
| Basic Weight For Mm Stroke | 8500 g |
| Additional Weight Per 10 Mm Stroke | 103 g |
| Material Profile | Wrought aluminium alloy, Anodised |
| Note On Materials | RoHS-compliant |
| Material Cover Tape | Stainless steel strip |
| Material Guide Slide | Tempered steel |
| Material Guide Rail | Tempered steel, Corrotect coated |
| Material Slide | Wrought aluminium alloy, Anodised |
