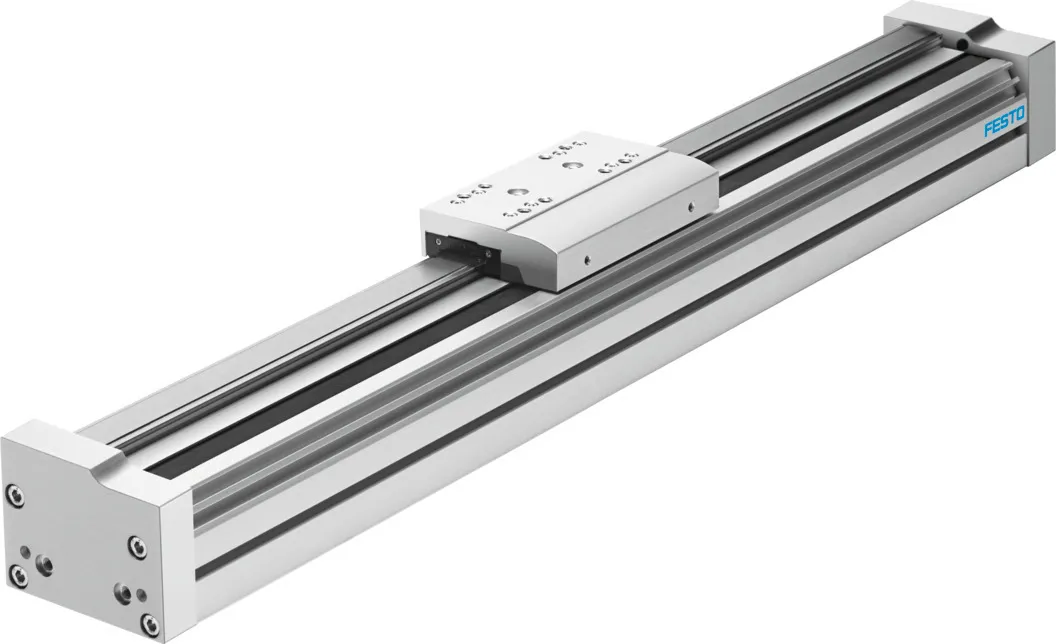

Festo EGC-70- -FA
For spindle/toothed belt axes ELGA (drive axes) , For supporting forces and torques in multi-axis applications , High torsional resistance
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For spindle/toothed belt axes ELGA (drive axes) , For supporting forces and torques in multi-axis applications , High torsional resistance
Specification
| Working Stroke | 50, 5000 mm |
|---|---|
| Size | 70 |
| Mounting Position | optional |
| Guide | Recirculating ball bearing guide |
| Design | Guidance |
| Max. Acceleration | 50 m/s² |
| Max. Speed | 5 m/s |
| Corrosion Resistance Class Crc | 0 – No corrosion stress |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Degree Of Protection | IP40 |
| Ambient Temperature | -10, 60 °C |
| 2Nd Moment Of Area Ix | 395000 mm⁴ |
| 2Nd Moment Of Area Iy | 577000 mm⁴ |
| Max. Force Fy | 1850 N |
| Max. Force Fz | 1850 N |
| Max. Idle Running Transfer Resistance | 15 N |
| Max. Moment Mx | 16 Nm |
| Max. Moment My | 51, 132 Nm |
| Max. Moment Mz | 51, 132 Nm |
| Max. Force Fy Total Axis | 1850 N |
| Max. Force Fz Total Axis | 1850 N |
| Max. Moment Mx Total Axis | 16 Nm |
| Max. Moment My Total Axis | 51, 132 Nm |
| Max. Moment Mz Total Axis | 51, 132 Nm |
| Torsional Mass Moment Of Inertia It | 240000 mm⁴ |
| Material Profile | Wrought aluminium alloy, Anodised |
| Note On Materials | RoHS-compliant |
| Material Cover Profile | ABS |
| Material Cover | Wrought aluminium alloy, Anodised |
| Material Guide Slide | Steel |
| Material Guide Rail | Steel |
| Material Slide | Wrought aluminium alloy, Anodised |
