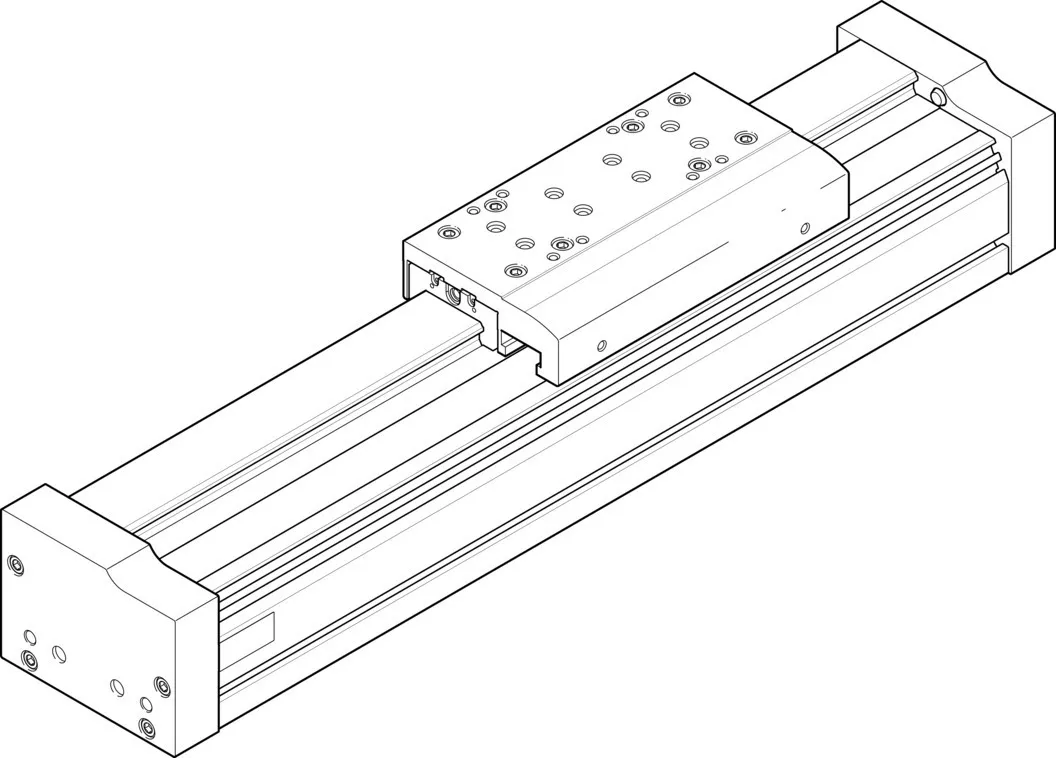

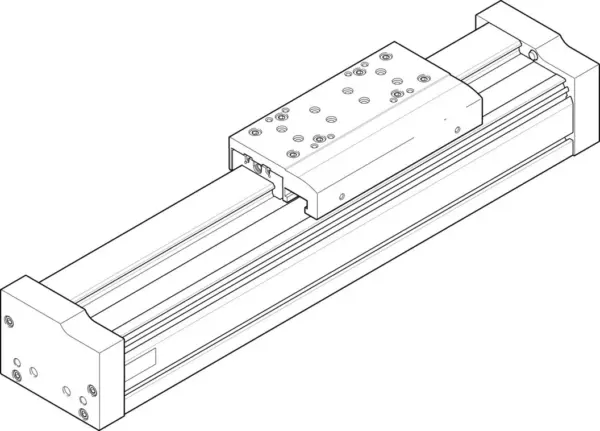

Festo EGC-185- -FA
For spindle/toothed belt axes ELGA (drive axes) , For supporting forces and torques in multi-axis applications , High torsional resistance
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For spindle/toothed belt axes ELGA (drive axes) , For supporting forces and torques in multi-axis applications , High torsional resistance
Specification
| Working Stroke |
50, 8500 mm |
|---|---|
| Size |
185 |
| Mounting Position |
optional |
| Guide |
Recirculating ball bearing guide |
| Design |
Guidance |
| Max. Acceleration |
50 m/s² |
| Max. Speed |
5 m/s |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Degree Of Protection |
IP40 |
| Ambient Temperature |
-10, 60 °C |
| 2Nd Moment Of Area Ix |
2.34E7 mm⁴ |
| 2Nd Moment Of Area Iy |
2.74E7 mm⁴ |
| Max. Force Fy |
15200 N |
| Max. Force Fz |
15200 N |
| Max. Idle Running Transfer Resistance |
15 N |
| Max. Moment Mx |
529 Nm |
| Max. Moment My |
1157, 1820 Nm |
| Max. Moment Mz |
1157, 1820 Nm |
| Max. Force Fy Total Axis |
15200 N |
| Max. Force Fz Total Axis |
15200 N |
| Max. Moment Mx Total Axis |
529 Nm |
| Max. Moment My Total Axis |
1157, 1820 Nm |
| Max. Moment Mz Total Axis |
1157, 1820 Nm |
| Torsional Mass Moment Of Inertia It |
1.41E7 mm⁴ |
| Pneumatic Connection, Clamping Unit |
M5 |
| Material Profile |
Wrought aluminium alloy, Anodised |
| Note On Materials |
RoHS-compliant |
| Material Cover Profile |
ABS |
| Material Cover |
Wrought aluminium alloy, Anodised |
| Material Guide Slide |
Steel |
| Material Guide Rail |
Steel |
| Material Slide |
Wrought aluminium alloy, Anodised |
