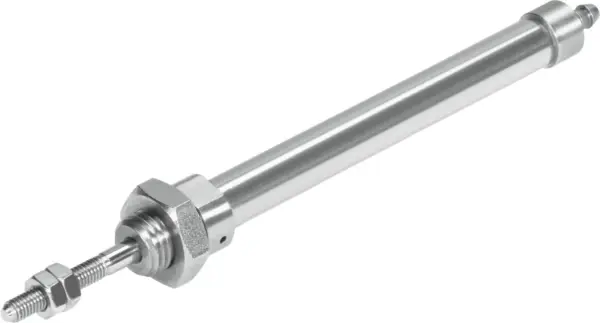

Festo EG-6-15-PK-3
Micro cylinder , Barbed fitting for plastic tubing with standard I.D. , Without position sensing
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Micro cylinder , Barbed fitting for plastic tubing with standard I.D. , Without position sensing
Specification
| Stroke |
15 mm |
|---|---|
| Piston Diameter |
6 mm |
| Cushioning |
On one side, Not adjustable |
| Mounting Position |
optional |
| Design |
Piston, Piston rod, Cylinder barrel |
| Position Detection |
Without |
| Symbol |
00991200 |
| Variants |
Piston rod at one end |
| Operating Pressure |
3, 7 bar |
| Mode Of Operation |
Pushing, Single-acting |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Ambient Temperature |
5, 60 °C |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Advance Stroke |
11.8 N |
| Theoretical Min. Spring Return Force |
2 N |
| Theoretical Max. Spring Return Force |
5.2 N |
| Product Weight |
20 g |
| Type Of Mounting |
Via lock nut |
| Pneumatic Connection |
PK-3 |
| Note On Materials |
RoHS-compliant |
| Material Cover |
High-alloy steel |
| Material Seals |
NBR |
| Material Piston Rod |
High-alloy stainless steel |
| Material Cylinder Barrel |
High-alloy stainless steel |
