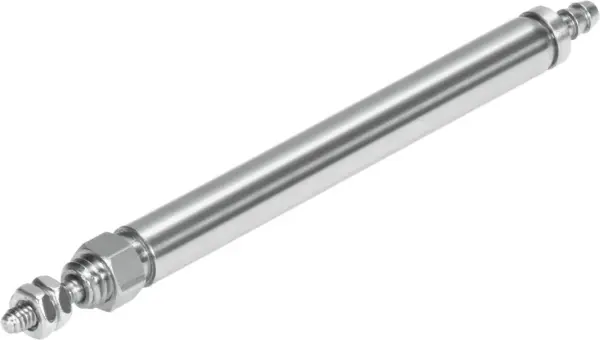

Festo EG-4-20-PK-2
Micro cylinder , Barbed fitting for plastic tubing with standard I.D. , Without position sensing
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Micro cylinder , Barbed fitting for plastic tubing with standard I.D. , Without position sensing
Specification
| Stroke | 20 mm |
|---|---|
| Piston Diameter | 4 mm |
| Cushioning | No cushioning |
| Mounting Position | optional |
| Design | Piston, Piston rod, Cylinder barrel |
| Position Detection | Without |
| Symbol | 00991200 |
| Variants | Piston rod at one end |
| Operating Pressure | 3.5, 7 bar |
| Mode Of Operation | Pushing, Single-acting |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Corrosion Resistance Class Crc | 1 – Low corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Ambient Temperature | 5, 60 °C |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Advance Stroke | 4.9 N |
| Theoretical Min. Spring Return Force | 1.5 N |
| Theoretical Max. Spring Return Force | 2.6 N |
| Product Weight | 6 g |
| Type Of Mounting | Via lock nut |
| Pneumatic Connection | PK-2 |
| Note On Materials | RoHS-compliant |
| Material Cover | High-alloy steel |
| Material Seals | TPE-U(PU) |
| Material Piston Rod | High-alloy steel |
| Material Cylinder Barrel | Nickel-plated brass |
