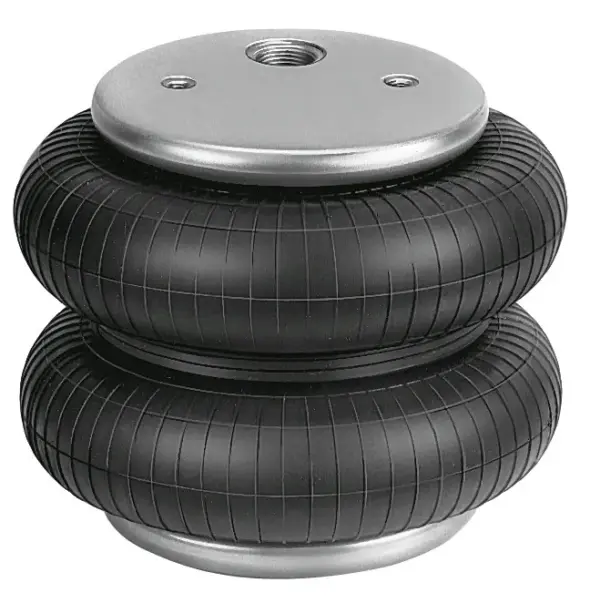

Festo EB-250-185
Use as a spring element or for reducing oscillations , Single- or double-bellows cylinder , High forces with a short stroke , Friction-free movement: no stick-slip effect , Use in dusty environments o…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Use as a spring element or for reducing oscillations , Single- or double-bellows cylinder , High forces with a short stroke , Friction-free movement: no stick-slip effect , Use in dusty environments or in water , Maintenance-free
Specification
| Size | 250 |
|---|---|
| Required Installation Diameter | 265 mm |
| Stroke | 185 mm |
| Max. Extended Height | 275 mm |
| Max. Angle Of Inclination | 25 deg |
| Max. Offset | 20 mm |
| Min. Installation Height | 75 mm |
| Mode Of Operation | Single-acting |
| Symbol | 00991205 |
| Operating Pressure | 8 bar |
| Operating Medium | Compressed air to ISO 8573-1:2010 [-:-:4] |
| Note On Operating And Pilot Medium | Lubricated operation not possible |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Ambient Temperature | -40, 70 °C |
| Reset Force | 200 N |
| Product Weight | 3000 g |
| Type Of Mounting | Via female thread |
| Pneumatic Connection | G3/4 |
| Note On Materials | RoHS-compliant |
| Material Bellows | NR/BR |
| Material Housing | Steel, Galvanised |
