Festo EAMM-U-87-T46-82AA-147

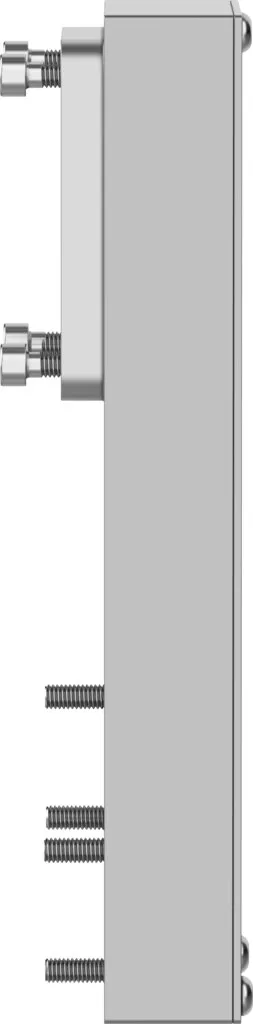

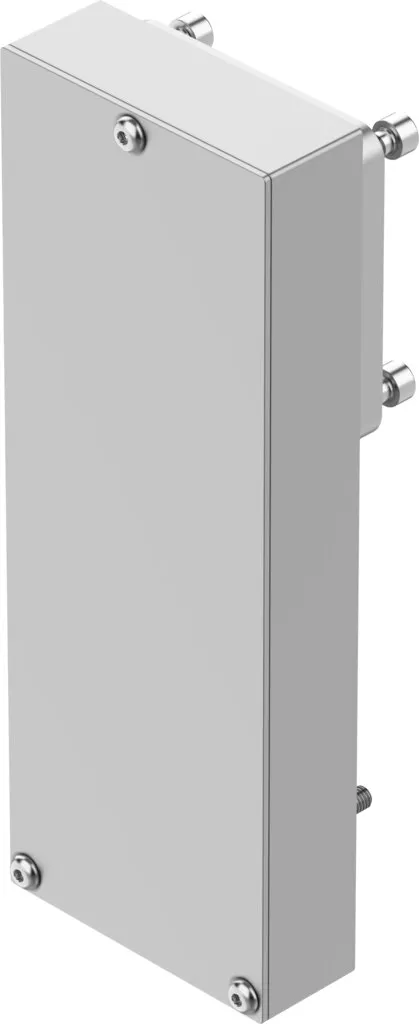

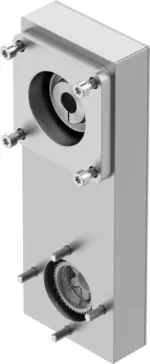

Parallel kit-EAMM-U-87-T46-82AA-147
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Size |
87 |
|---|---|
| Centre To Centre Distance |
147 mm |
| Mounting Position |
optional |
| Gear Unit Ratio |
1:1 |
| Max. Rotational Speed |
3000 1/min |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Storage Temperature |
-20, 60 °C |
| Relative Air Humidity |
0 – 95% |
| Degree Of Protection |
IP40 |
| Ambient Temperature |
50 °C |
| Mass Moment Of Inertia |
41.2 kgmm² |
| Frictional Torque Independent Of Load |
0.22 Nm |
| Transmittable Torque |
3 Nm |
| Product Weight |
1145 g |
| Interface Code, Actuator |
T46 |
| Interface Code, Motor In |
82AA |
| Note On Materials |
RoHS-compliant |
