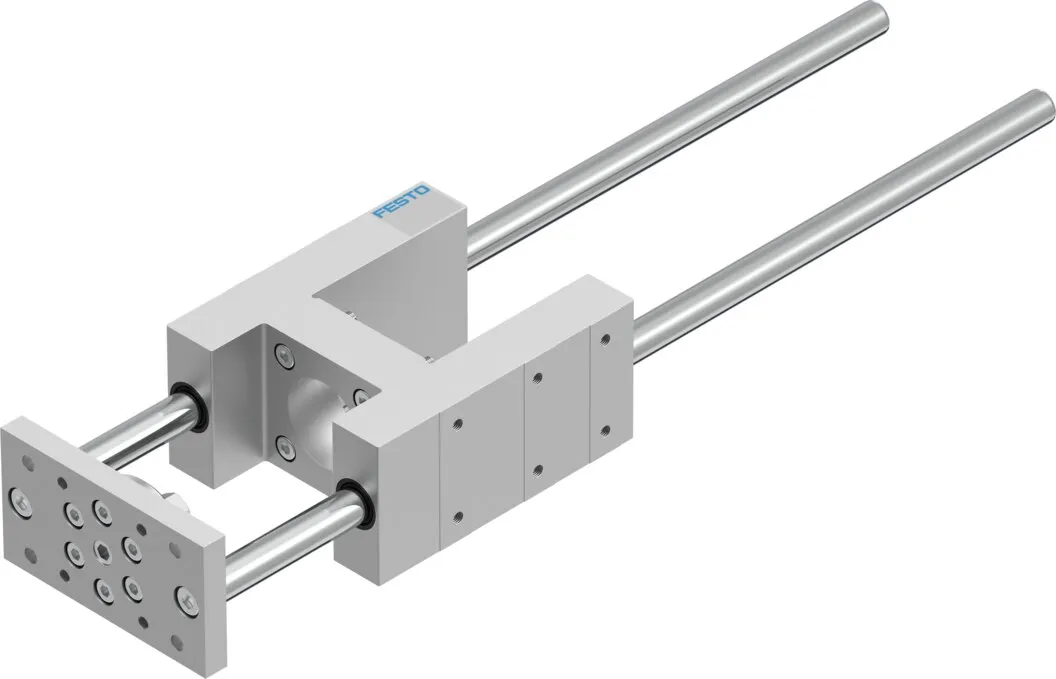

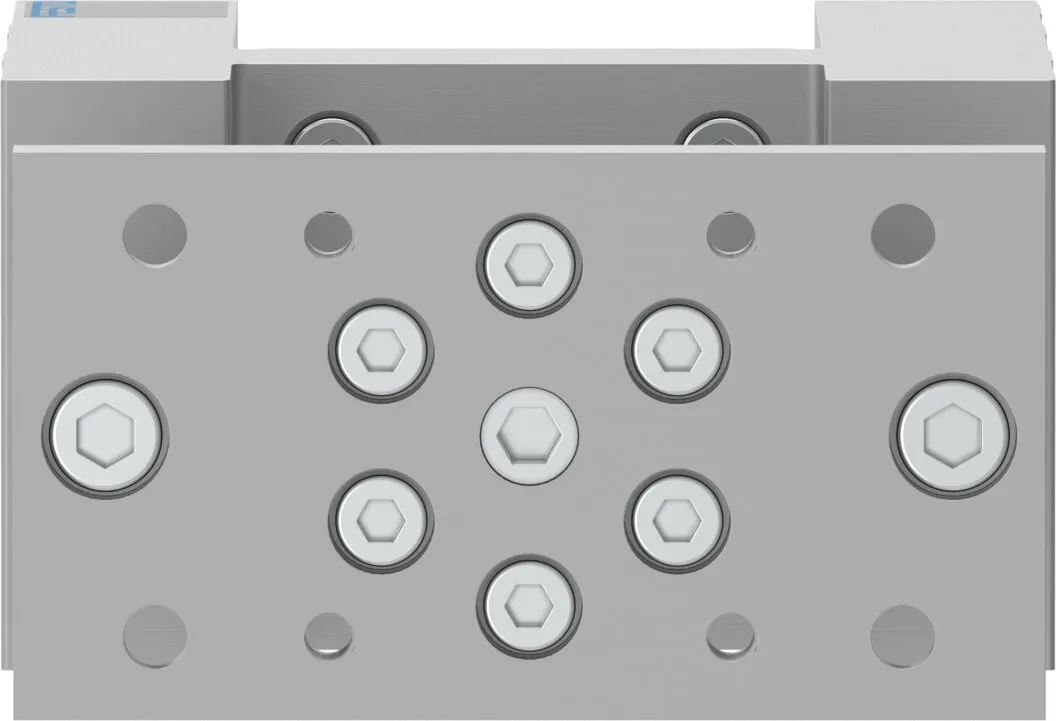

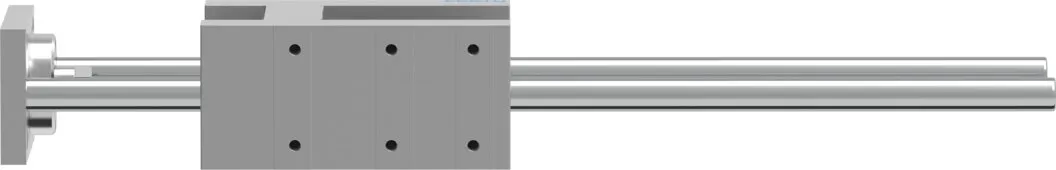

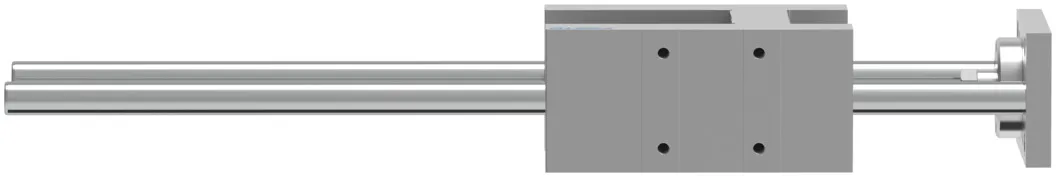

Festo EAGF-V2-KF-63-400
For electric cylinders EPCC, EPCO and ESBF , For absorbing high process forces and torques , High guide precision
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For electric cylinders EPCC, EPCO and ESBF , For absorbing high process forces and torques , High guide precision
Specification
| Size |
63 |
|---|---|
| Stroke |
400 mm |
| Mounting position |
optional |
| Guide |
Recirculating ball bearing guide |
| Design |
Guidance |
| Corrosion resistance class CRC |
0 – No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Ambient temperature |
-20, 80 °C |
| Max. force Fy |
1260 N |
| Max. force Fy static |
1600 N |
| Max. force Fz |
1260 N |
| Max. force Fz static |
1600 N |
| Max. moment Mx |
75 Nm |
| Max. torque Mx static |
95 Nm |
| Max. moment My |
90 Nm |
| Max. torque My static |
115 Nm |
| Max. moment Mz |
90 Nm |
| Max. torque Mz static |
115 Nm |
| Displacement force |
15 N |
| Moving mass |
4525 g |
| Product weight |
7485 g |
| Centre of gravity at 0 mm stroke |
48 mm |
| Centre of gravity additional of moving mass per 10 mm |
4.1 mm |
| Type of mounting |
Via female thread |
| Note on materials |
RoHS-compliant |
| Material guide component |
Tempered steel |
| Material housing |
Anodised |
| Material yoke plate |
Steel |
