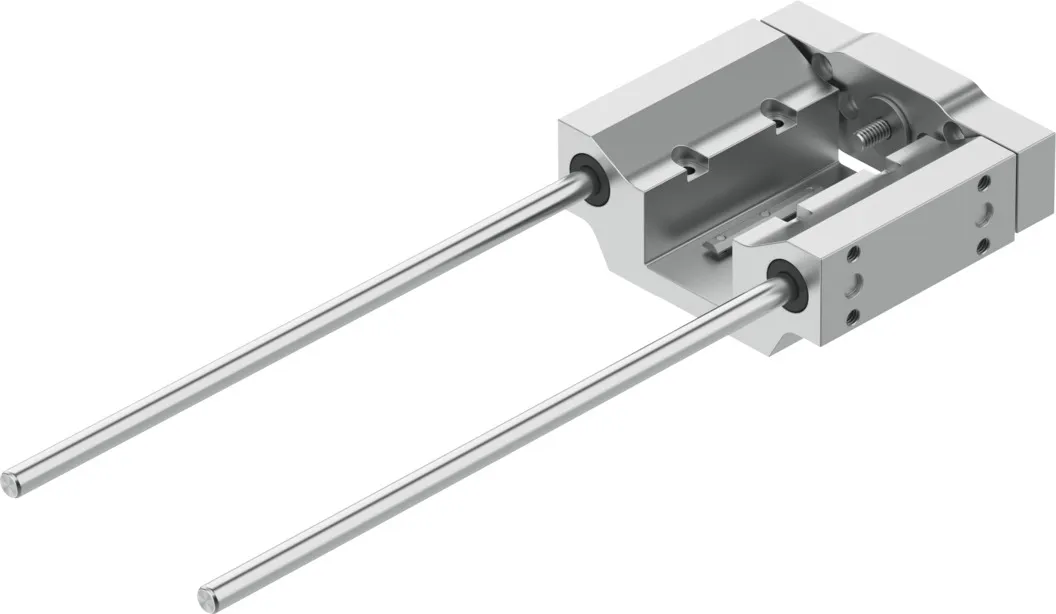

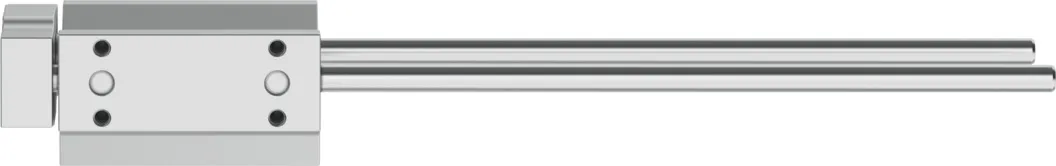

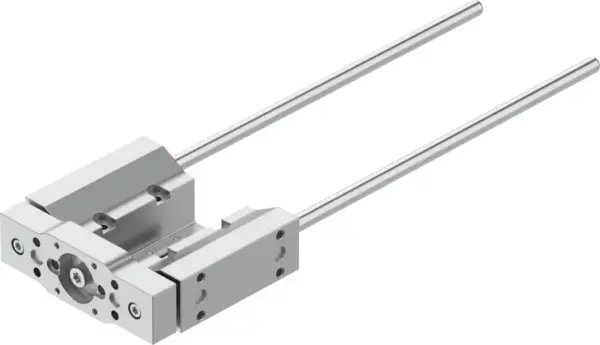

Festo EAGF-P2-KF-32-150
For electric cylinders EPCC, EPCO and ESBF , For absorbing high process forces and torques , High guide precision
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For electric cylinders EPCC, EPCO and ESBF , For absorbing high process forces and torques , High guide precision
Specification
| Size |
32 |
|---|---|
| Stroke |
150 mm |
| Mounting position |
optional |
| Guide |
Recirculating ball bearing guide |
| Design |
Guidance |
| Max. acceleration |
25 m/s² |
| Max. speed |
1 m/s |
| Corrosion resistance class CRC |
0 – No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Degree of protection |
IP40 |
| Ambient temperature |
60 °C |
| Max. force Fy |
160 N |
| Max. force Fy static |
355 N |
| Max. force Fz |
160 N |
| Max. force Fz static |
355 N |
| Max. moment Mx |
6 Nm |
| Max. torque Mx static |
13 Nm |
| Max. moment My |
4 Nm |
| Max. torque My static |
9 Nm |
| Max. moment Mz |
4 Nm |
| Max. torque Mz static |
9 Nm |
| Displacement force |
1.6 N |
| Moving mass for 0 mm stroke |
170 g |
| Basic weight for 0 mm stroke |
613 g |
| Additional weight per 10 mm stroke |
7.9 g |
| Additional moving mass per 10 mm stroke |
7.9 g |
| Centre of gravity at 0 mm stroke |
26 mm |
| Centre of gravity additional of moving mass per 10 mm |
4.3 mm |
| Type of mounting |
Via female thread |
| Note on materials |
RoHS-compliant |
| Material guide component |
Tempered steel, Hard-chrome-plated |
| Material housing |
Anodised |
| Material yoke plate |
Wrought aluminium alloy, Anodised |
