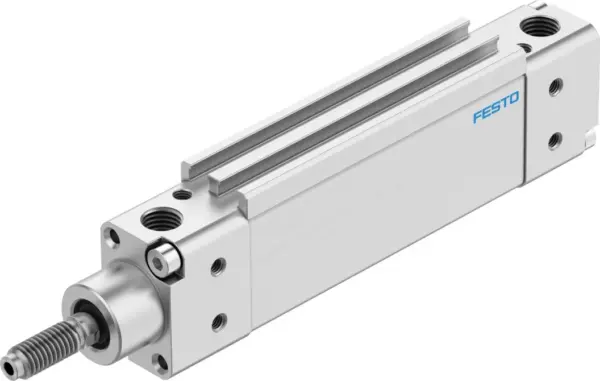

Festo DZH-20-125-PPV-A
Flat design , Protected against rotation thanks to special piston shape , Ideal for manifold assembly , Wide variety of mounting and attachment options , Piston rod with male thread , For position sen…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Flat design , Protected against rotation thanks to special piston shape , Ideal for manifold assembly , Wide variety of mounting and attachment options , Piston rod with male thread , For position sensing
Specification
| Stroke |
125 mm |
|---|---|
| Piston Diameter |
20 mm, Equivalent diameter |
| Piston Rod Thread |
M8 |
| Torsional Backlash At Piston Rod +/ |
2.6 deg |
| Cushioning |
Pneumatic cushioning, adjustable at both ends |
| Mounting Position |
optional |
| Mode Of Operation |
Double-acting |
| Design |
Piston, Piston rod, Profile barrel |
| Position Detection |
Via proximity switch |
| Symbol |
00991235 |
| Variants |
Piston rod at one end |
| Protection Against Torque/Guide |
Oval piston |
| Operating Pressure |
1, 10 bar |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Ambient Temperature |
-20, 80 °C |
| Cushioning Length |
17 mm |
| Max. Torque For Protection Against Torsion |
0.6 Nm |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Return Stroke |
158 N |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Advance Stroke |
188 N |
| Moving Mass |
121 g |
| Product Weight |
433 g |
| Additional Weight Per 10 Mm Stroke |
15.9 g |
| Basic Weight For Mm Stroke |
234 g |
| Type Of Mounting |
Via female thread, With accessories |
| Pneumatic Connection |
G1/8 |
| Note On Materials |
RoHS-compliant |
| Material Cover |
Aluminium |
| Material Seals |
TPE-U(PU) |
| Material Housing |
Aluminium |
| Material Piston Seal |
TPE-U(PU) |
| Material Piston Rod |
High-alloy steel |
