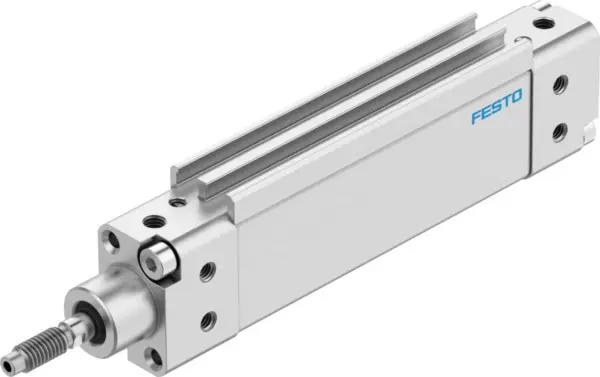

Festo DZH-16-50-PPV-A
Flat design , Protected against rotation thanks to special piston shape , Ideal for manifold assembly , Wide variety of mounting and attachment options , Piston rod with male thread , For position sen…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Flat design , Protected against rotation thanks to special piston shape , Ideal for manifold assembly , Wide variety of mounting and attachment options , Piston rod with male thread , For position sensing
Specification
| Stroke |
50 mm |
|---|---|
| Piston diameter |
16 mm, Equivalent diameter |
| Piston rod thread |
M6 |
| Torsional backlash at piston rod +/- |
3.1 deg |
| Cushioning |
Pneumatic cushioning, adjustable at both ends |
| Mounting position |
optional |
| Mode of operation |
Double-acting |
| Design |
Piston, Piston rod, Profile barrel |
| Position detection |
Via proximity switch |
| Symbol |
00991235 |
| Variants |
Piston rod at one end |
| Protection against torque/guide |
Oval piston |
| Operating pressure |
1, 10 bar |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Ambient temperature |
-20, 80 °C |
| Cushioning length |
14 mm |
| Max. torque for protection against torsion |
0.5 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
104 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
121 N |
| Moving mass |
49 g |
| Product weight |
209 g |
| Additional weight per 10 mm stroke |
12 g |
| Basic weight for 0 mm stroke |
148 g |
| Type of mounting |
Via female thread, With accessories |
| Pneumatic connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material cover |
Aluminium |
| Material seals |
TPE-U(PU) |
| Material housing |
Aluminium |
| Material piston seal |
TPE-U(PU) |
| Material piston rod |
High-alloy steel |
