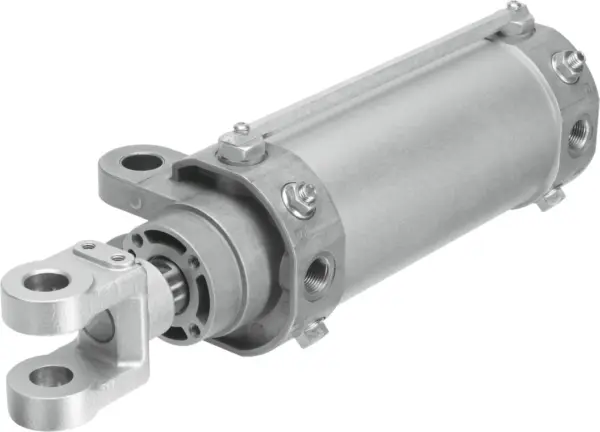

Festo DW-80-100-Y-A
For clamping components during the welding process , Double-acting , Easy to mount thanks to swivel bearing on the bearing cap , Integrated flow control , Integrated end-position cushioning , Rod wipe…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For clamping components during the welding process , Double-acting , Easy to mount thanks to swivel bearing on the bearing cap , Integrated flow control , Integrated end-position cushioning , Rod wiper seal to protect against welding spatter , Asian automotive standard for car body production
Specification
| Stroke |
100 mm |
|---|---|
| Piston diameter |
80 mm |
| Piston rod thread |
M20x1.5 |
| Broad rod clevis/swivel mounting |
28 mm |
| Cushioning |
Pneumatic cushioning, adjustable at both ends |
| Mounting position |
optional |
| Design |
Piston, Piston rod with rod clevis, Swivel mounting on bearing cap, Cylinder barrel |
| Speed regulation |
Integrated flow control at both ends |
| Position detection |
Via proximity switch |
| Piston-rod end |
Male thread with rod clevis |
| Operating pressure |
1, 10 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
0 – No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Ambient temperature |
-10, 60 °C |
| Impact energy in end positions |
1.8 J |
| Cushioning length |
30 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
2721 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
3016 N |
| Moving mass for 0 mm stroke |
1651 g |
| Additional moving mass per 10 mm stroke |
39 g |
| Basic weight for 0 mm stroke |
4185 g |
| Additional weight per 10 mm stroke |
65 g |
| Alternative connections |
See product drawing |
| Type of mounting |
Via swivel mounting on bearing cap, With accessories |
| Pneumatic connection |
Rc3/8 |
| Material rod clevis |
Cast steel, Tempered steel |
| Note on materials |
RoHS-compliant |
| Material wiper |
Bronze |
| Material cover |
Die-cast aluminium, Anodised |
| Material seals |
NBR |
| Material piston rod |
Tempered steel, Hard-chrome-plated |
| Material cylinder barrel |
Wrought aluminium alloy, Anodised |
