Festo DSNU-S-25- –

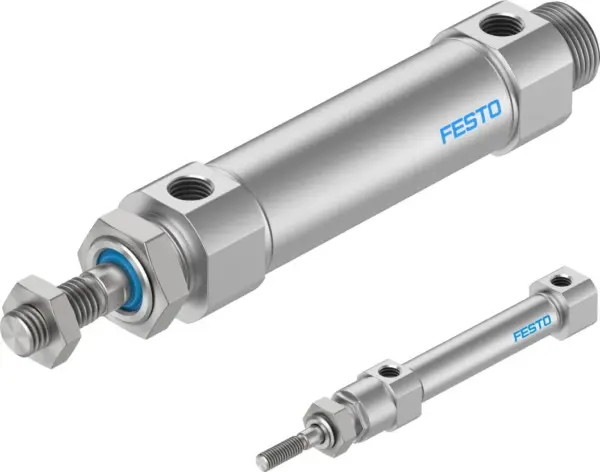

Short variant of ISO cylinder DSNU , Quick and easy installation, even in tight spaces , Light weight , Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts opti…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short variant of ISO cylinder DSNU , Quick and easy installation, even in tight spaces , Light weight , Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes , Piston rod with male thread , For position sensing , Variants recommended for production systems for manufacturing lithium-ion batteries , Sustainable in production thanks to reduced use of materials
Specification
| Stroke |
1, 200 mm |
|---|---|
| Piston diameter |
25 mm |
| Cushioning |
Elastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning |
| Mounting position |
optional |
| Design |
Piston, Piston rod, Cylinder barrel |
| Position detection |
Via proximity switch |
| Symbol |
00991217 |
| Variants |
Extended male piston rod thread, Piston rod with female thread, Extended piston rod, Axial supply port, Swivel mounting, end cap, Lateral supply port, Mounting thread, end cap, Shortened male piston rod thread |
| Operating pressure |
0.6, 10 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Ambient temperature |
-20, 80 °C |
| Impact energy in end positions |
0.3 J |
| Cushioning length |
17 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
247.4 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
294.5 N |
| Moving mass for 0 mm stroke |
63.6 g |
| Additional moving mass per 10 mm stroke |
6 g |
| Basic weight for 0 mm stroke |
180.2 g |
| Additional weight per 10 mm stroke |
11 g |
| Type of mounting |
With accessories |
| Pneumatic connection |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material cover |
Anodised wrought aluminium alloy |
| Material seals |
TPE-U(PU) |
| Material piston rod |
High-alloy stainless steel |
| Material cylinder barrel |
High-alloy stainless steel |
