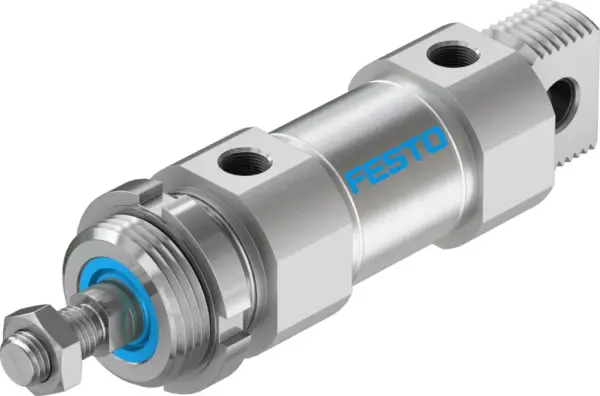

Festo DSNU-40- -F1A-
Wide range of variants for customised applications , Good running performance and long service life , Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optima…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Wide range of variants for customised applications , Good running performance and long service life , Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes , Piston rod with female or male thread , For position sensing
Specification
| Stroke |
1, 500 mm |
|---|---|
| Piston diameter |
40 mm |
| Piston rod thread |
M12x1.25 |
| Cushioning |
Elastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends |
| Mounting position |
optional |
| Design |
Piston, Piston rod, Cylinder barrel |
| Position detection |
Via proximity switch |
| Symbol |
00991217 |
| Variants |
Extended male piston rod thread, Piston rod with female thread, Custom thread on the piston rod, Piston rod with male thread shortened at one end, Extended piston rod, Axial supply port, Lateral supply port, Through piston rod |
| Operating pressure |
1, 10 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
0 – No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries |
Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature |
-20, 80 °C |
| Impact energy in end positions |
0.7 J |
| Cushioning length |
18 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
633.3 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
752.9 N |
| Moving mass for 0 mm stroke |
230 g |
| Additional moving mass per 10 mm stroke |
16 g |
| Basic weight for 0 mm stroke |
661 g |
| Additional weight per 10 mm stroke |
24 g |
| Type of mounting |
With accessories |
| Pneumatic connection |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material cover |
Anodised wrought aluminium alloy |
| Material seals |
TPE-U(PU) |
| Material piston rod |
High-alloy stainless steel |
| Material cylinder barrel |
High-alloy stainless steel |
