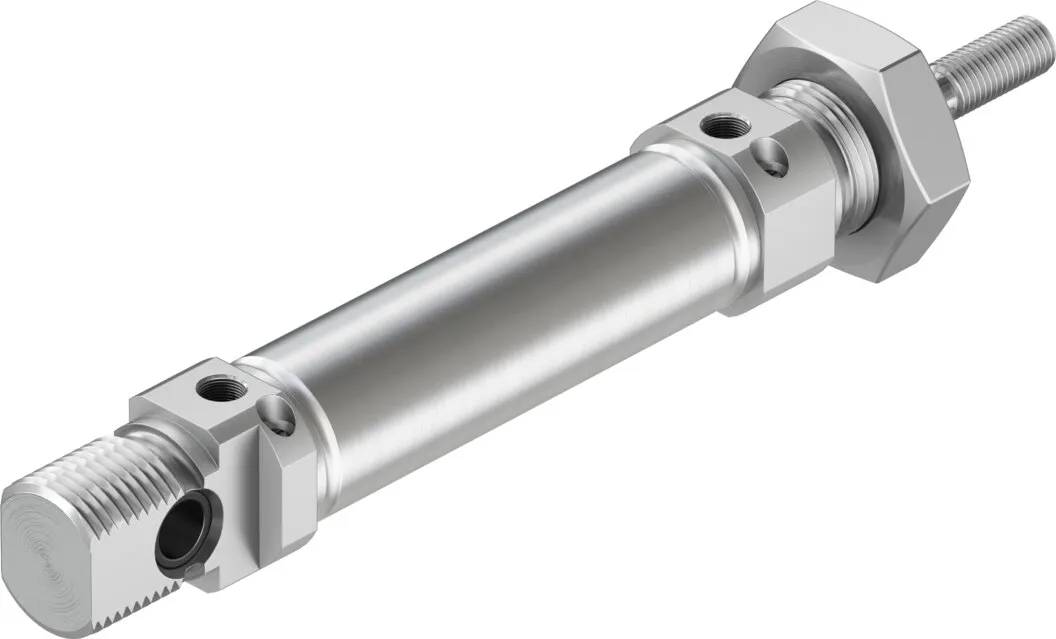

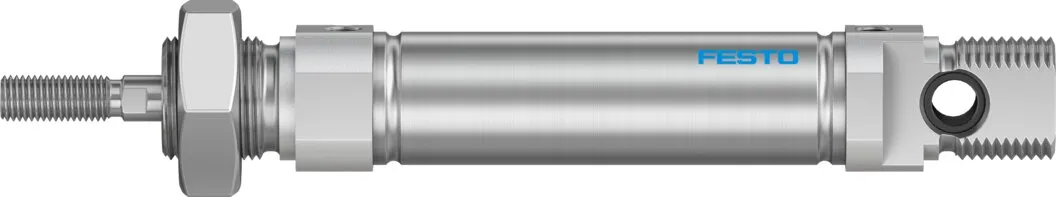

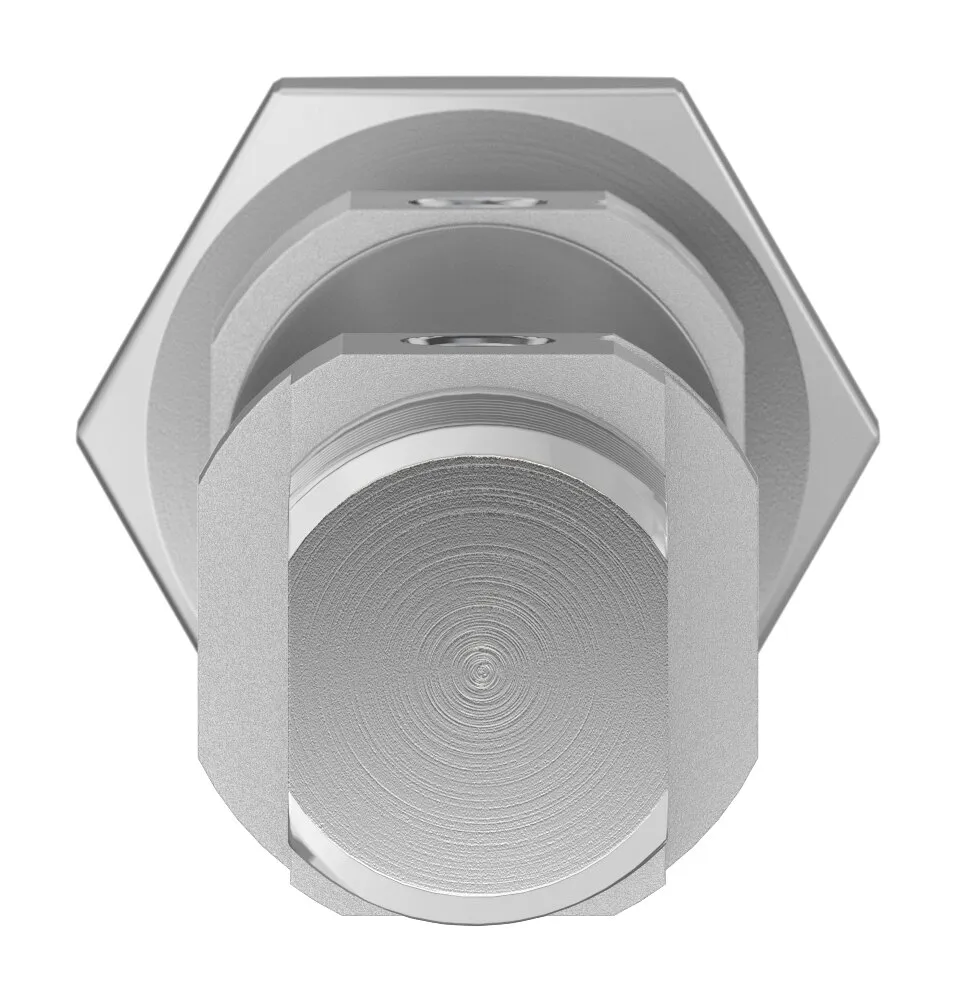

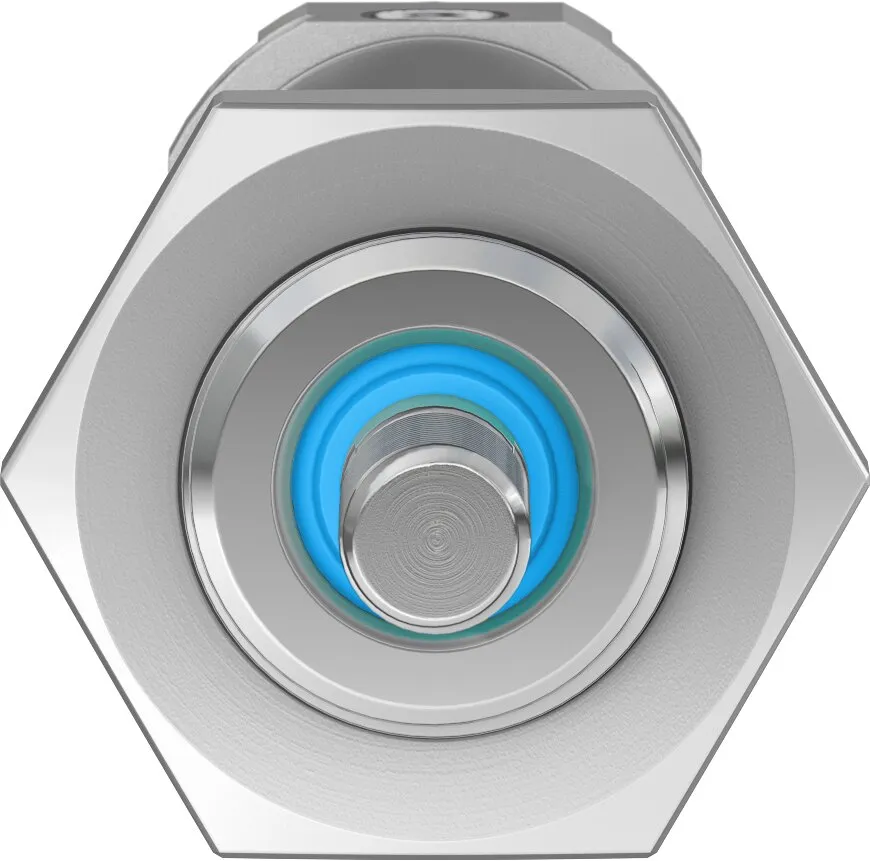

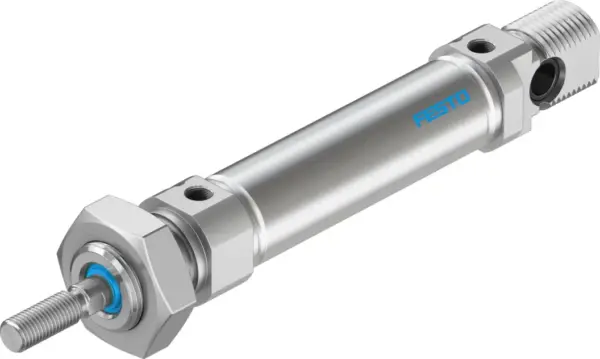

Festo DSNU-16-25-PPV-A
Wide range of variants for customised applications , Good running performance and long service life , Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optima…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Wide range of variants for customised applications , Good running performance and long service life , Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes , Piston rod with female or male thread , For position sensing
Specification
| Stroke |
25 mm |
|---|---|
| Piston diameter |
16 mm |
| Piston rod thread |
M6 |
| Cushioning |
Pneumatic cushioning, adjustable at both ends |
| Mounting position |
optional |
| Conforms to standard |
ISO 6432 |
| Piston-rod end |
Male thread |
| Design |
Piston, Piston rod, Cylinder barrel |
| Position detection |
Via proximity switch |
| Symbol |
00991235 |
| Variants |
Piston rod at one end |
| Operating pressure |
1, 10 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Cleanroom class |
Class 6 according to ISO 14644-1 |
| Ambient temperature |
-20, 80 °C |
| Impact energy in end positions |
0.15 J |
| Cushioning length |
12 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
103.7 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
120.6 N |
| Moving mass for 0 mm stroke |
23 g |
| Additional moving mass per 10 mm stroke |
2 g |
| Basic weight for 0 mm stroke |
89.9 g |
| Additional weight per 10 mm stroke |
4.6 g |
| Type of mounting |
With accessories |
| Pneumatic connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material cover |
Wrought aluminium alloy, Colourless anodised |
| Material seals |
NBR, TPE-U(PU) |
| Material piston rod |
High-alloy stainless steel |
| Material cylinder barrel |
High-alloy stainless steel |
