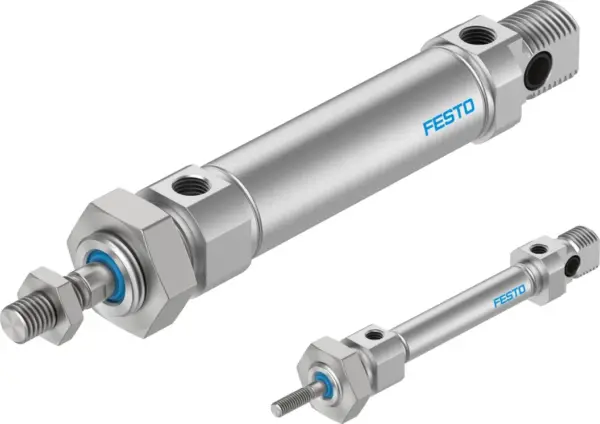

Festo DSNU-12- –
Piston rod can be clamped in any position , The piston rod can also be held for long periods with alternating loads, fluctuating operation pressure or loss of pressure , For position sensing
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Piston rod can be clamped in any position , The piston rod can also be held for long periods with alternating loads, fluctuating operation pressure or loss of pressure , For position sensing
Specification
| Stroke | 1, 200 mm |
|---|---|
| Piston diameter | 12 mm |
| Cushioning | Elastic cushioning rings/plates at both ends, Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 6432 |
| Design | Piston, Piston rod, Cylinder barrel |
| Position detection | Via proximity switch |
| Variants | Advancing stroke adjustment, Weld spatter protection, Custom thread on the piston rod, Piston rod with external hexagon, Additional slide, standard, on left, Low friction for balancer applications, Bearing cap without mounting thread, Swivelling rod eye mounting on the end cap, Module for reaching a specific end position in case of a pressure failure, Transverse load increased, Reinforced piston rod, Uniform, slow movement, Low friction, Through, hollow piston rod, Additional PTFE piston guide |
| Protection against torque/guide | Square piston rod |
| Operating pressure | 1.5, 10 bar |
| Mode of operation | Double-acting |
| CE mark (see declaration of conformity) | To EU Explosion Protection Directive (ATEX) |
| UKCA marking (see declaration of conformity) | To UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB), EPL Gb (GB) |
| Explosion protection | Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| ATEX category gas | II 2G |
| ATEX category dust | II 2D |
| Explosion ignition protection type for gas | Ex h IIC T4 Gb |
| Explosion ignition protection type for dust | Ex h IIIC T120°C Db |
| Explosion ambient temperature | -20°C <= Ta <= +60°C |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 – Moderate corrosion stress, 3 – high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L, VDMA24364 zone III |
| Ambient temperature | -20, 120 °C |
| Impact energy in end positions | 0.035, 0.07 J |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 51, 68 N |
| Type of mounting | With accessories |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR, TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
