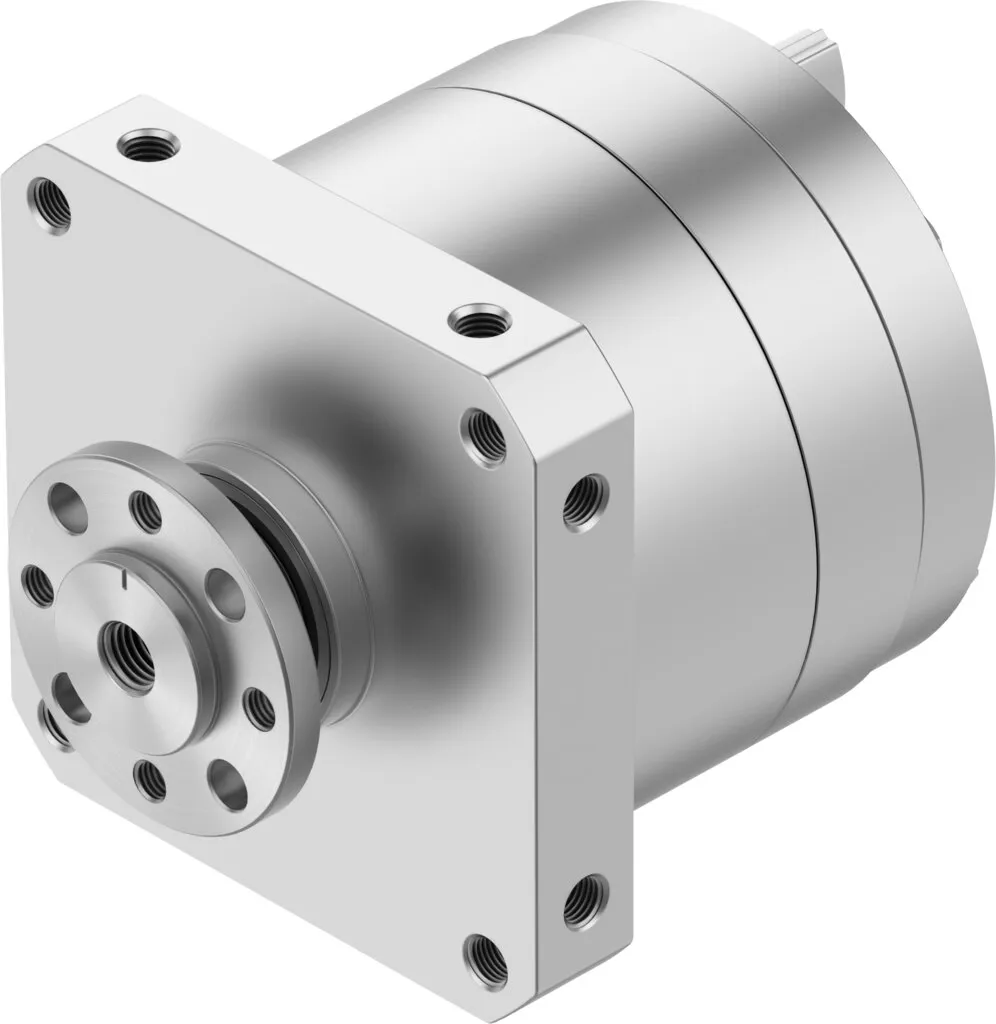

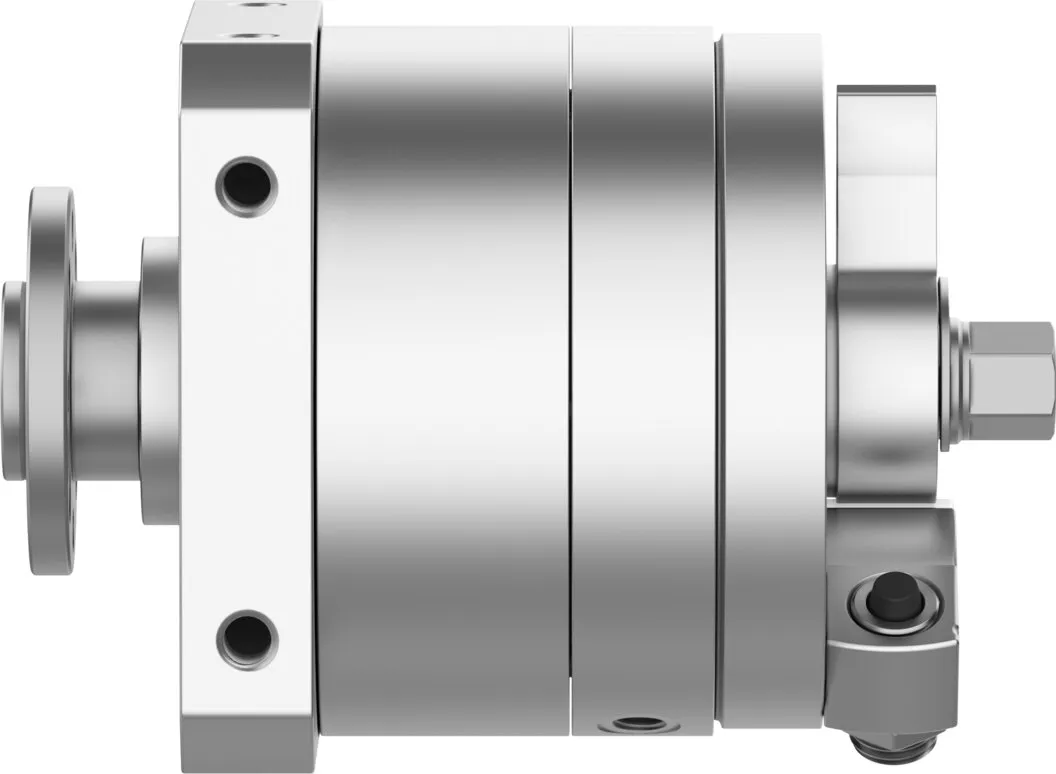

Festo DSM-T-40-270-P-FW-A-B
Semi-rotary vane drive , With spigot shaft, hollow flanged shaft, tandem rotary vane and spigot shaft, tandem rotary vane and flanged shaft or heavy-duty bearing (HD)
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Semi-rotary vane drive , With spigot shaft, hollow flanged shaft, tandem rotary vane and spigot shaft, tandem rotary vane and flanged shaft or heavy-duty bearing (HD)
Specification
| Size |
40 |
|---|---|
| Cushioning angle |
2 deg |
| Rotation angle adjustment range |
270 deg |
| Swivel angle |
270 deg |
| Permissible stop radius |
40 mm |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Fine adjustment |
-6 deg |
| Mode of operation |
Double-acting |
| Design |
Vane |
| Position detection |
Via proximity switch |
| Symbol |
00991265 |
| Operating pressure |
2, 10 bar |
| Max. swivel frequency at 0.6 MPa (6 bar, 87 psi) |
2 Hz |
| Repetition accuracy |
1 deg |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
0 – No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Ambient temperature |
-10, 60 °C |
| Max. stop force |
650 N |
| Max. axial force |
120 N |
| Max. radial force |
350 N |
| Theoretical torque at 0.6 MPa (6 bar, 87 psi) |
40 Nm |
| Permissible mass moment of inertia |
0.035 kgm² |
| Product weight |
4005 g |
| Type of mounting |
Via female thread |
| Pneumatic connection |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material drive shaft |
Steel, Nickel-plated |
| Material seals |
TPE-U(PU) |
| Material housing |
Wrought aluminium alloy |
