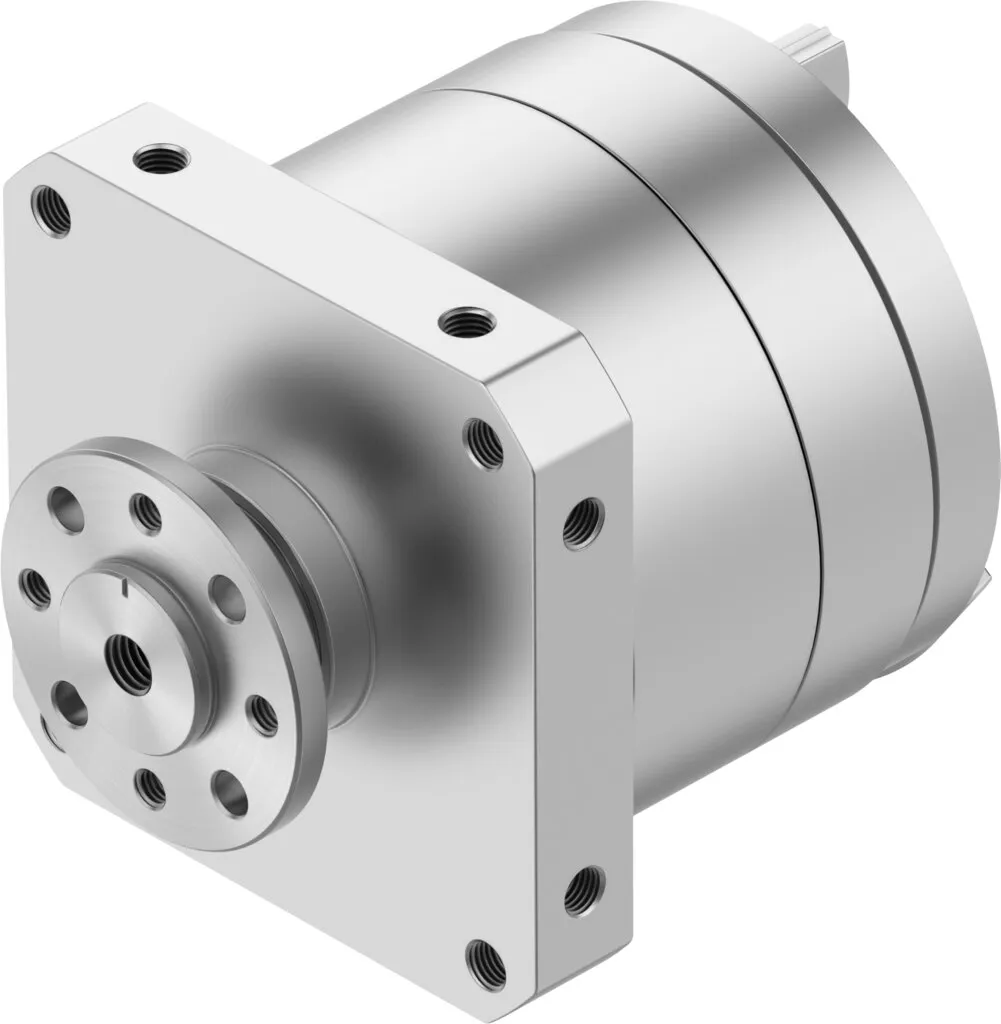

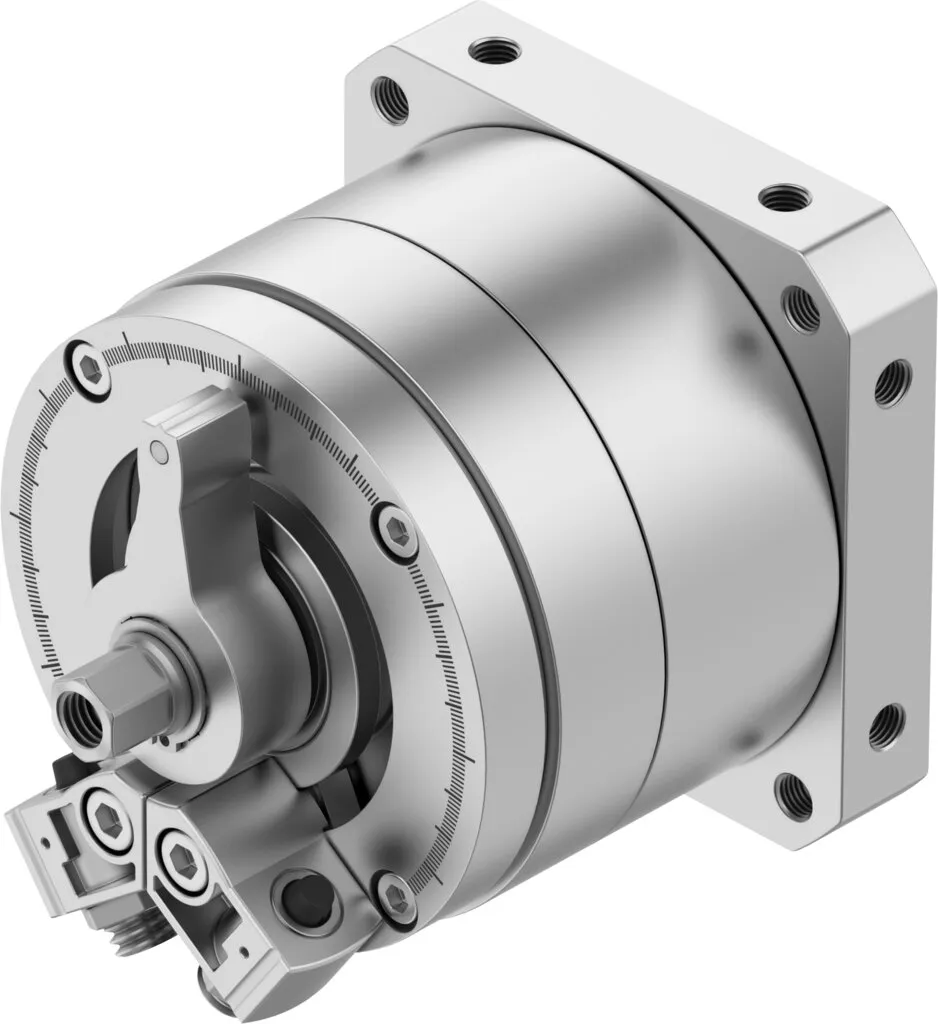

Festo DSM-T-32-270-P-FW-A-B

Semi-rotary vane drive , With spigot shaft, hollow flanged shaft, tandem rotary vane and spigot shaft, tandem rotary vane and flanged shaft or heavy-duty bearing (HD)

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Semi-rotary vane drive , With spigot shaft, hollow flanged shaft, tandem rotary vane and spigot shaft, tandem rotary vane and flanged shaft or heavy-duty bearing (HD)

Specification

Size32
Cushioning angle1.4 deg
Rotation angle adjustment range270 deg
Swivel angle270 deg
Permissible stop radius28 mm
CushioningElastic cushioning rings/plates at both ends
Mounting positionoptional
Fine adjustment-6 deg
Mode of operationDouble-acting
DesignVane
Position detectionVia proximity switch
Symbol00991265
Operating pressure2, 10 bar
Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)2 Hz
Repetition accuracy1 deg
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC0 – No corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature-10, 60 °C
Max. stop force480 N
Max. axial force75 N
Max. radial force200 N
Theoretical torque at 0.6 MPa (6 bar, 87 psi)20 Nm
Permissible mass moment of inertia0.025 kgm²
Product weight2115 g
Type of mountingVia female thread
Pneumatic connectionG1/8
Note on materialsRoHS-compliant
Material drive shaftSteel, Nickel-plated
Material sealsTPE-U(PU)
Material housingWrought aluminium alloy
