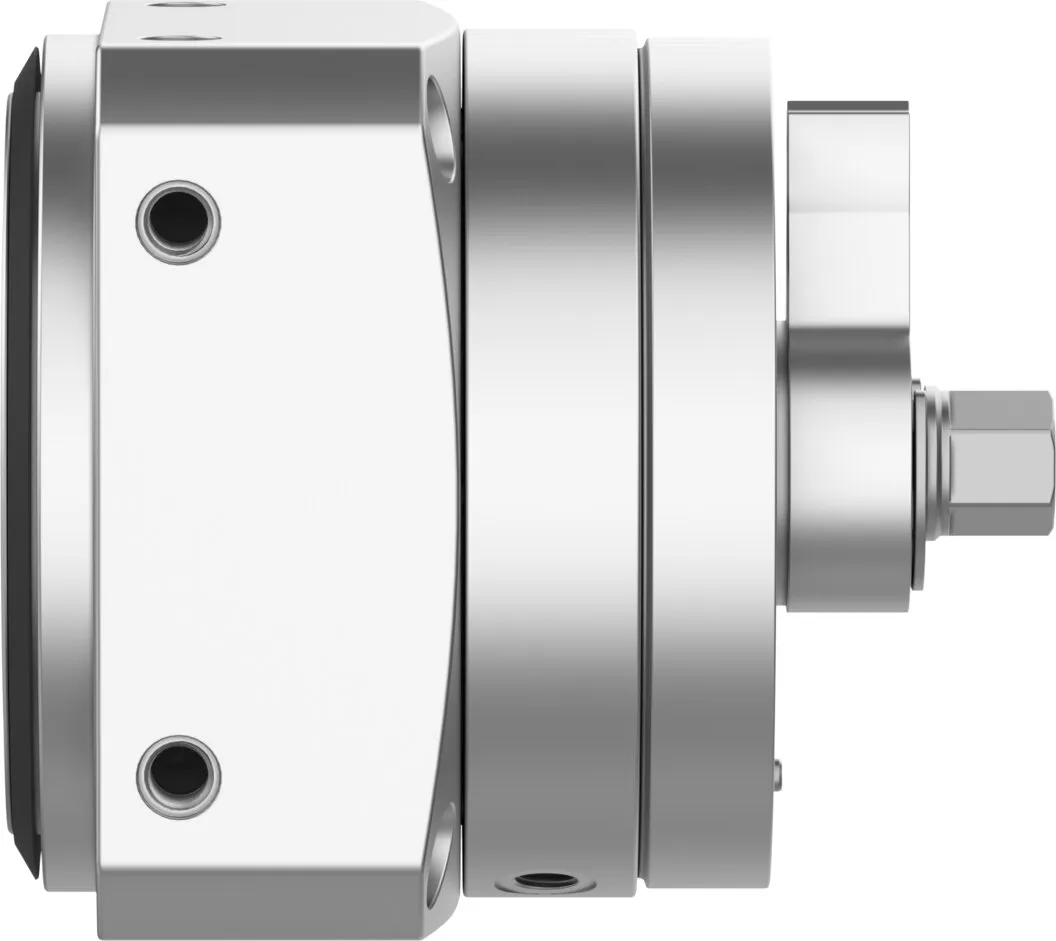

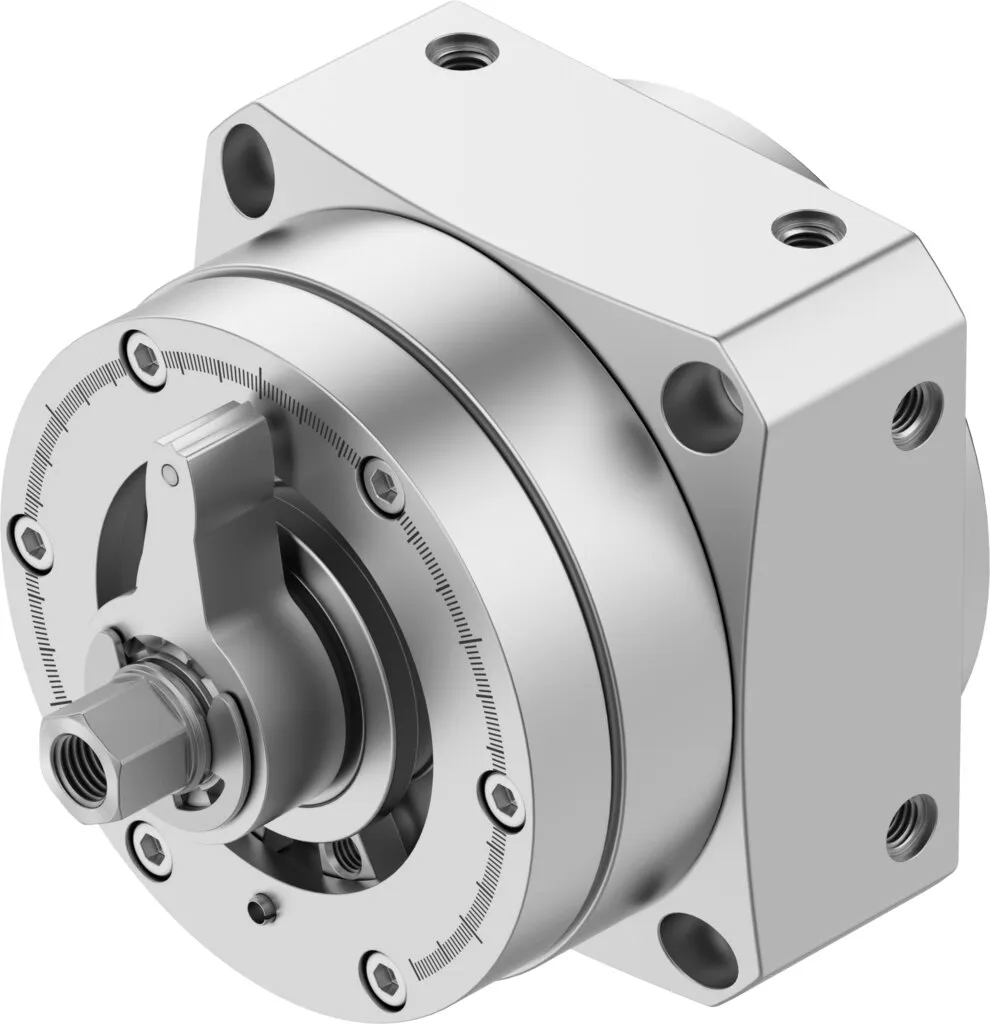

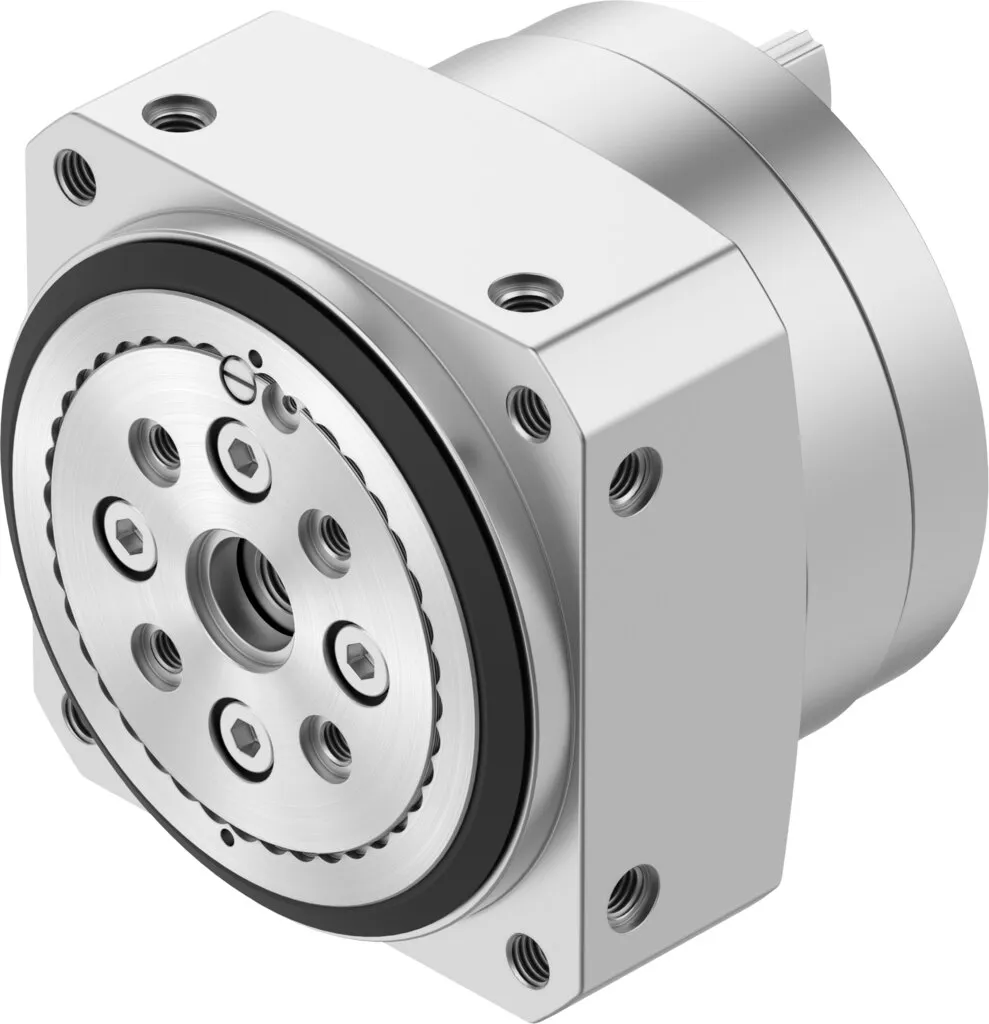

Festo DSM-40-270-HD-A-B
Semi-rotary vane drive , With spigot shaft, hollow flanged shaft, tandem rotary vane and spigot shaft, tandem rotary vane and flanged shaft or heavy-duty bearing (HD)
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Semi-rotary vane drive , With spigot shaft, hollow flanged shaft, tandem rotary vane and spigot shaft, tandem rotary vane and flanged shaft or heavy-duty bearing (HD)
Specification
| Size | 40 |
|---|---|
| Swivel angle | 270 deg |
| Permissible stop radius | 40 mm |
| Mounting position | optional |
| Mode of operation | Double-acting |
| Design | Vane |
| Position detection | Without |
| Symbol | 00991265 |
| Operating pressure | 2, 10 bar |
| Max. swivel frequency at 0.6 MPa (6 bar, 87 psi) | 1.5 Hz |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 0 – No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10, 60 °C |
| Max. stop force | 650 N |
| Max. axial force | 950 N |
| Max. radial force | 1200 N |
| Theoretical torque at 0.6 MPa (6 bar, 87 psi) | 20 Nm |
| Product weight | 3712 g |
| Type of mounting | Via female thread |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material drive shaft | Steel, Nickel-plated |
| Material seals | TPE-U(PU) |
| Material housing | Wrought aluminium alloy |
