Festo DSL-32- -270-CC-A-S20-KF-B
Rotary and linear motion can be controlled individually or simultaneously , High repetition accuracy , With plain or recirculating ball bearing guide , Through piston rod
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Rotary and linear motion can be controlled individually or simultaneously , High repetition accuracy , With plain or recirculating ball bearing guide , Through piston rod
Specification
| Cushioning angle | 12 deg |
|---|---|
| Rotation angle adjustment range | 246 deg |
| Stroke | 10, 100 mm |
| Piston diameter | 32 mm |
| Swivel angle | 246 deg |
| Cushioning | Shock absorber at both ends, Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Fine adjustment | -3 deg |
| Mode of operation | Double-acting |
| Design | Vane |
| Position detection | Via proximity switch |

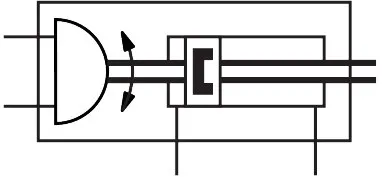

| Symbol | 00991269 |
| Variants | Through, hollow piston rod |
| Protection against torque/guide | Via ball bearings |
| Operating pressure | 2.5, 8 bar |
| Max. impact speed | 0.5 m/s |
| Max. swivel frequency at 0.6 MPa (6 bar, 87 psi) | 0.7 Hz |
| Rotary angle backlash | 0.05 deg |
| Repetition accuracy | 0.1 deg |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10, 60 °C |
| Dynamic load torque | 1 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 294 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 403.5 N |
| Theoretical torque at 0.6 MPa (6 bar, 87 psi) | 10 Nm |
| Permissible mass moment of inertia | 1.7E-4 kgm² |
| Product weight | 3280 g |
| Basic weight for 0 mm stroke | 3280 g |
| Additional weight per 10 mm stroke | 109 g |
| Type of mounting | Clamped in T-slot, Via male thread |
| Pneumatic connection | G1/8 |
| Material cover | Wrought aluminium alloy, Anodised |
| Material seals | TPE-U(PU) |
| Material housing | Smooth anodised |
| Material piston rod | Tempered steel |
