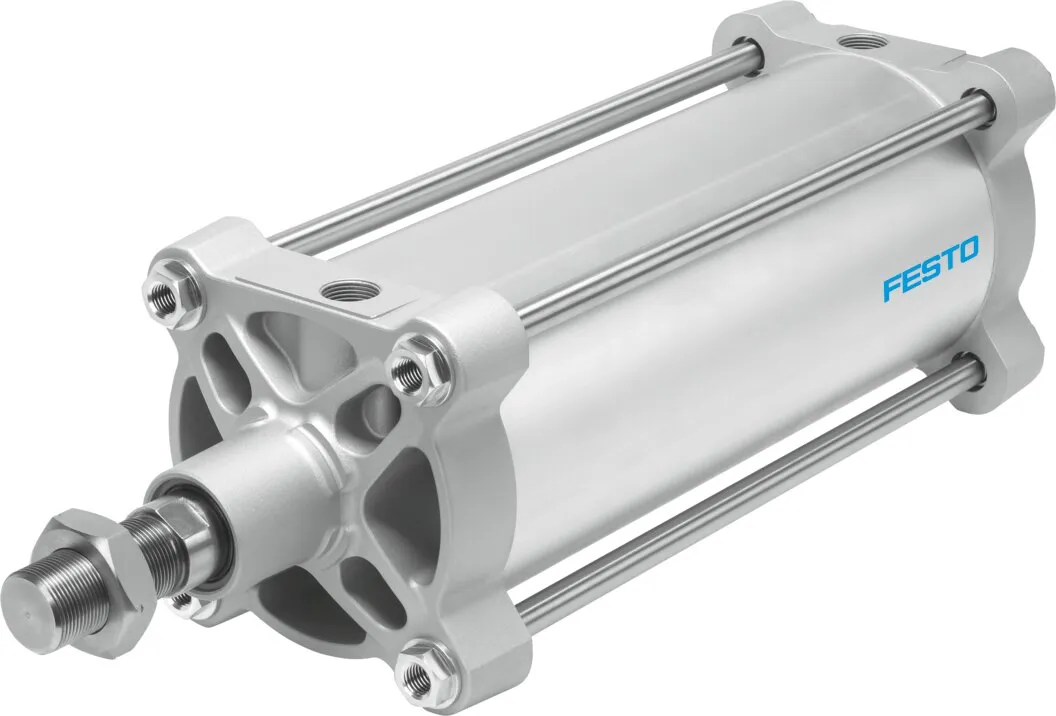

Festo DSBG-…-160- –
ISO 15552 (ISO 6431, VDMA 24562) , Sturdy tie rod design , Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes , Comprehensi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ISO 15552 (ISO 6431, VDMA 24562) , Sturdy tie rod design , Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes , Comprehensive range of mounting accessories for just about every type of installation , For position sensing , Sustainable thanks to extended life cycle and easier repairs
Specification
| Stroke |
1, 2700 mm |
|---|---|
| Piston diameter |
160 mm |
| Piston rod thread |
M36x2, M36, M30x2, M27x2, M27, M24, M20x1.5, M20, M16x1.5, M16 |
| Based on standard |
ISO 15552 |
| Cushioning |
Elastic cushioning rings/plates at both ends, Pneumatic cushioning, adjustable at both ends |
| Mounting position |
optional |
| Conforms to standard |
ISO 15552 |
| Piston-rod end |
Male thread, Female thread |
| Design |
Piston, Piston rod, Tie rod, Cylinder barrel |
| Position detection |
Via proximity switch |

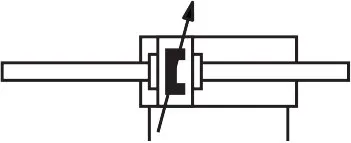

| Symbol |
00991217, 00991218, 00991235, 00991237 |
| Variants |
Extended male piston rod thread, Piston rod with female thread, Custom thread on the piston rod, Extended piston rod, Metal scraper, High corrosion protection, Through piston rod, Heat-resistant seals max. 120°C, Clamped swivel mounting position, Screwed-on swivel mounting position, Spacer bolt on end cap side, Spacer bolt on both sides, Spacer bolt on bearing cap side, Variable spacer bolt length, Temperature range 0 to 150°C, Shortened male piston rod thread, Piston rod at one end, For proximity switch |
| Operating pressure |
0.6, 10 bar |
| Mode of operation |
Double-acting |
| CE mark (see declaration of conformity) |
To EU Explosion Protection Directive (ATEX) |
| Explosion protection |
Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| ATEX category gas |
II 2G |
| ATEX category dust |
II 2D |
| Explosion ignition protection type for gas |
c T4 |
| Explosion ignition protection type for dust |
c T120°C |
| Explosion ambient temperature |
-20°C <= Ta <= +60°C |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress, 3 – high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L, VDMA24364 zone III |
| Ambient temperature |
-20, 150 °C |
| Impact energy in end positions |
2.3, 3.3 J |
| Cushioning length |
48 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
11310 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
11310, 12064 N |
| Pneumatic connection |
G3/4 |
| Note on materials |
RoHS-compliant |
| Material cover |
Cast aluminium, coated |
| Material piston seal |
FPM, NBR |
| Material piston |
Cast aluminium |
| Material piston rod |
High-alloy stainless steel, hard chrome-plated, High-alloy steel, High-alloy stainless steel |
| Material piston rod wiper |
FPM, NBR |
| Buffer seal material |
FPM, TPE-U(PU) |
| Material of cushioning boss |
Wrought aluminium alloy, POM |
| Material cylinder barrel |
Smooth-anodised wrought aluminium alloy |
| Material nut |
Galvanised steel, High-alloy stainless steel |
| Material rod wiper |
Brass |
| Material bearing |
Bronze, Metal polymer compound |
| Material collar nut |
Galvanised steel |
| Material tie rod |
High-alloy steel, High-alloy stainless steel |
| Material spacer bolt |
High-alloy steel, High-alloy stainless steel |
| Material swivel mounting |
Painted spheroidal graphite cast iron |
