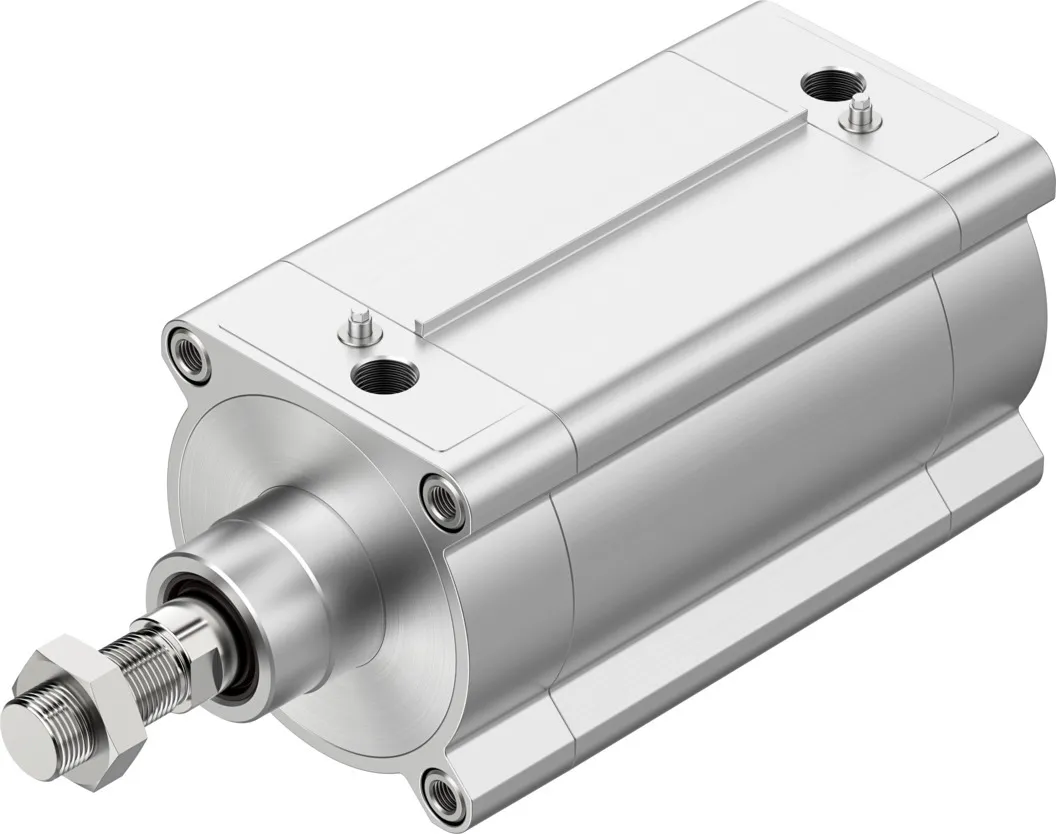

Festo DSBF-C-…-125- –
ISO 15552 , Increased corrosion protection , Easy-to-clean design , FDA-approved lubrication and sealing on the basic version , Long service life thanks to optional dry-running seal , Self-adjusting p…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ISO 15552 , Increased corrosion protection , Easy-to-clean design , FDA-approved lubrication and sealing on the basic version , Long service life thanks to optional dry-running seal , Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes , For position sensing , Sustainable thanks to extended life cycle and easier repairs
Specification
| Stroke |
1, 2800 mm |
|---|---|
| Piston diameter |
125 mm |
| Piston rod thread |
M27x2, M16 |
| Based on standard |
ISO 15552 |
| Cushioning |
Elastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends |
| Mounting position |
optional |
| Conforms to standard |
ISO 15552 |
| Piston-rod end |
Male thread, Female thread |
| Design |
Piston, Piston rod, Profile barrel |
| Position detection |
Via proximity switch |

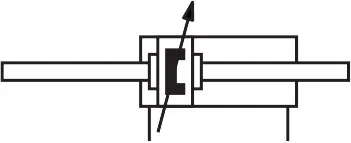

| Symbol |
00991217, 00991218, 00991235, 00991237, 00992970, 00992971 |
| Variants |
Extended male piston rod thread, Piston rod with female thread, Extended piston rod, Uniform, slow movement, Through piston rod, Heat-resistant seals max. 120°C, Temperature range 0 to 150°C, Temperature range -40 to 80°C |
| Operating pressure |
0.05, 10 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
3 – high corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L, VDMA24364 zone III |
| Suitable for use with food |
See supplementary material information |
| Ambient temperature |
-40, 150 °C |
| Impact energy in end positions |
1.65, 3.3 J |
| Cushioning length |
44, 45 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
6881 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
6681, 7363 N |
| Additional weight per piston rod extension of 10 mm |
63 g |
| Additional weight per piston rod thread extension of 10 mm |
41 g |
| Type of mounting |
Via female thread, With accessories |
| Pneumatic connection |
G1/2 |
| Note on materials |
RoHS-compliant |
| Material cover |
Coated die-cast aluminium |
| Material piston seal |
FPM, TPE-U(PU) |
| Material piston |
Wrought aluminium alloy |
| Material piston rod |
High-alloy stainless steel, hard chrome-plated, High-alloy stainless steel |
| Material piston rod wiper |
FPM, PE, TPE-U(PU) |
| Buffer seal material |
FPM, TPE-U(PU) |
| Material of cushioning boss |
Aluminium, POM |
| Material cylinder barrel |
Anodised wrought aluminium alloy |
| Material nut |
High-alloy stainless steel |
| Material rod wiper |
PTFE reinforced |
| Material bearing |
Bronze |
| Material collar screws |
Galvanised steel |
