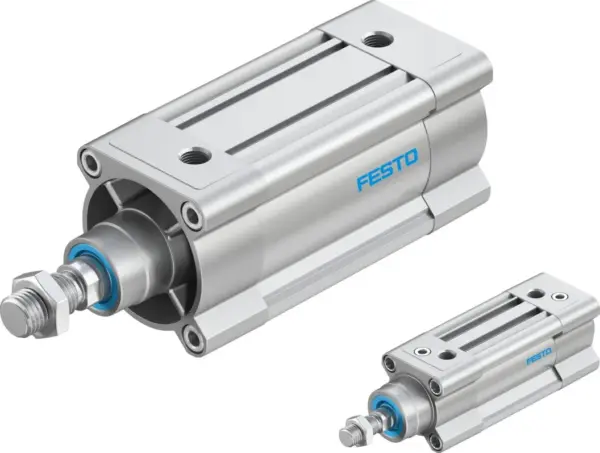

Festo DSBC-…-100- -F1A-
Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes , ISO 15552 (ISO 6431, VDMA 24562) , Sustainable thanks to extended life…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes , ISO 15552 (ISO 6431, VDMA 24562) , Sustainable thanks to extended life cycle and easier repairs , Standard profile with two sensor slots , Wide range of variants for customised applications , Comprehensive range of mounting accessories for just about every type of installation , For position sensing , Variants recommended for production systems for manufacturing lithium-ion batteries
Specification
| Stroke | 1, 2800 mm |
|---|---|
| Piston diameter | 100 mm |
| Piston rod thread | M20x1.5, M12 |
| Cushioning | Elastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread, Female thread |
| Design | Piston, Piston rod, Profile barrel |
| Position detection | Via proximity switch |

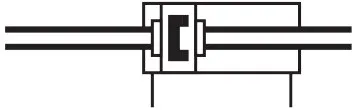

| Symbol | 00991217, 00991218, 00991235, 00991237, 00992970, 00992971 |
| Variants | Extended male piston rod thread, Piston rod with female thread, Extended piston rod, Through piston rod, Sensor slots on 3 profile sides, Piston rod at one end |
| Operating pressure | 0.4, 12 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | -20, 80 °C |
| Impact energy in end positions | 2.5 J |
| Cushioning length | 31 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 4418 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 4712 N |
| Additional weight per piston rod extension of 10 mm | 39 g |
| Additional weight per piston rod thread extension of 10 mm | 22 g |
| Type of mounting | Via female thread, With accessories |
| Pneumatic connection | G1/2 |
| Note on materials | RoHS-compliant |
| Material cover | Coated die-cast aluminium |
| Material piston seal | TPE-U(PU) |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material piston rod wiper | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) |
| Material of cushioning boss | POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Steel, nickel-plated |
| Material bearing | POM |
| Material collar screws | Steel, nickel-plated |
