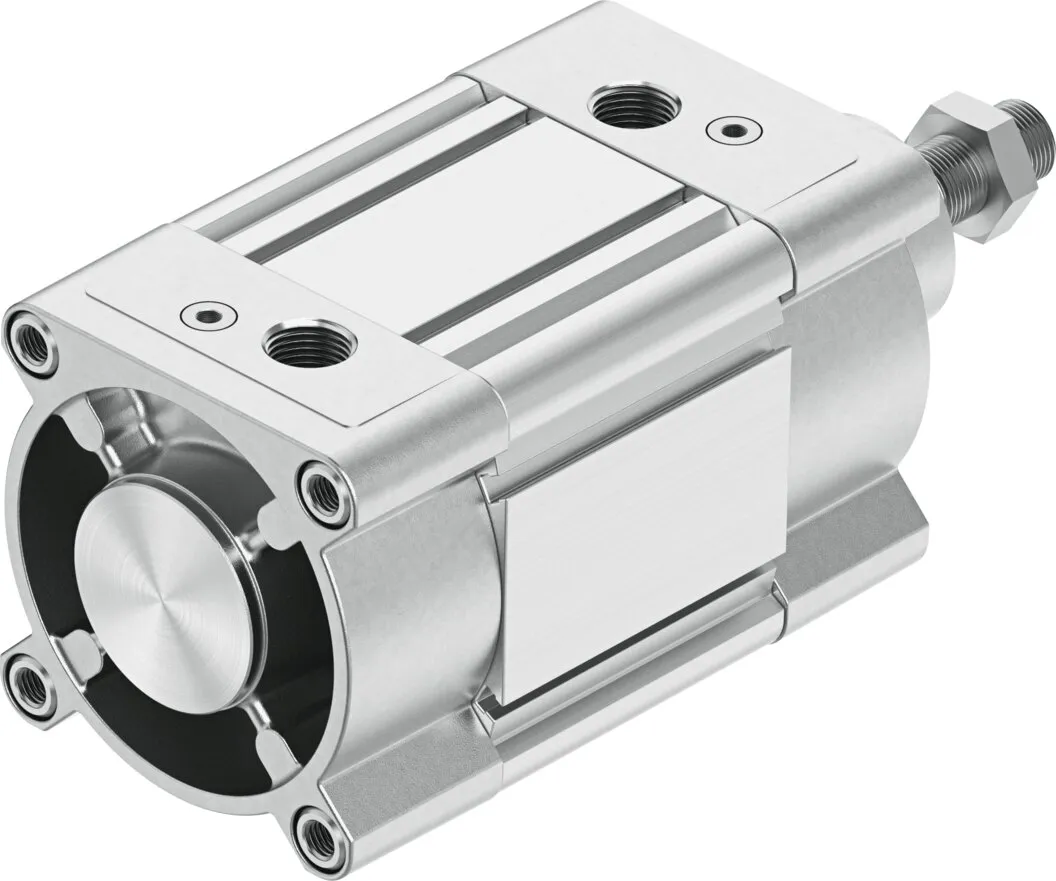

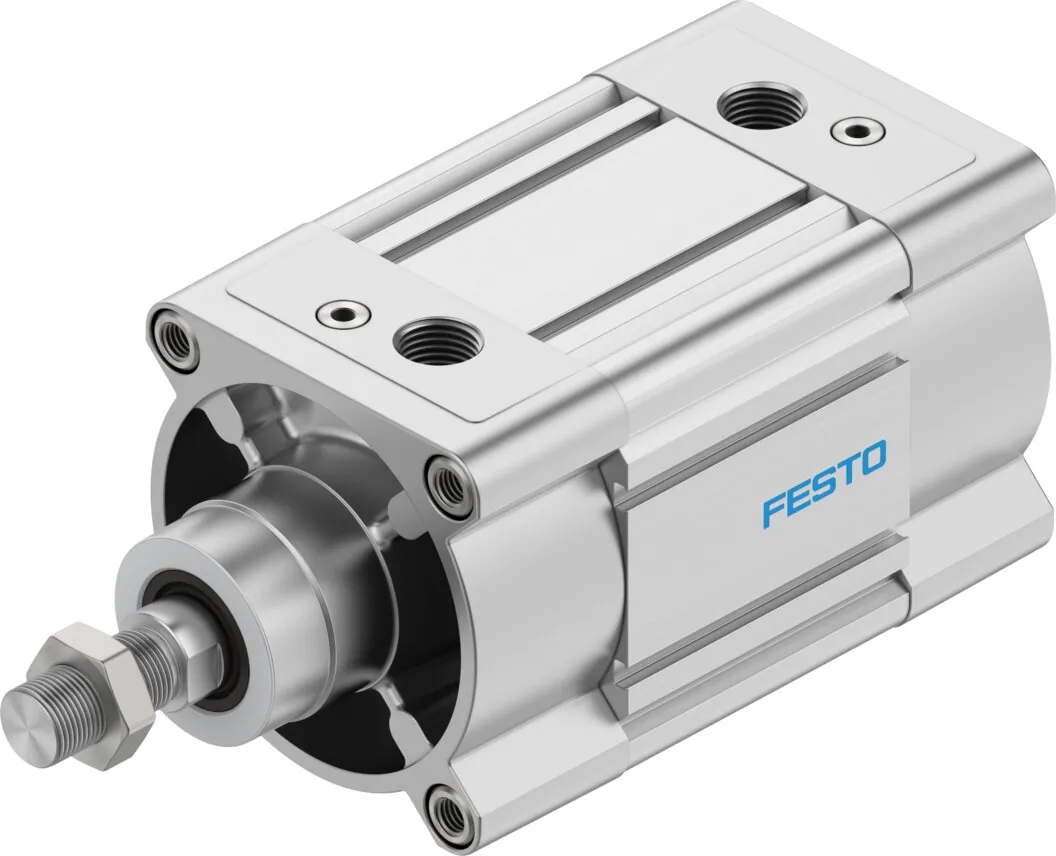

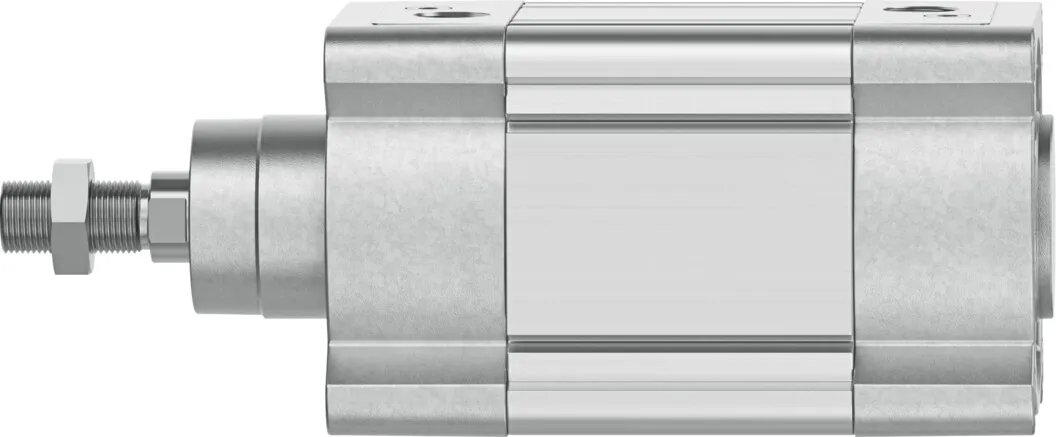

Festo DSBC-100-50-D3-PPVA-N3
Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes , ISO 15552 (ISO 6431, VDMA 24562) , Sustainable thanks to extended life…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes , ISO 15552 (ISO 6431, VDMA 24562) , Sustainable thanks to extended life cycle and easier repairs , Standard profile with two sensor slots , Wide range of variants for customised applications , Comprehensive range of mounting accessories for just about every type of installation , For position sensing , Variants recommended for production systems for manufacturing lithium-ion batteries
Specification
| Stroke |
50 mm |
|---|---|
| Piston diameter |
100 mm |
| Piston rod thread |
M20x1.5 |
| Cushioning |
Pneumatic cushioning, adjustable at both ends |
| Mounting position |
optional |
| Conforms to standard |
ISO 15552 |
| Piston-rod end |
Male thread |
| Design |
Piston, Piston rod, Profile barrel |
| Position detection |
Via proximity switch |
| Symbol |
00991235 |
| Variants |
Piston rod at one end |
| Operating pressure |
0.4, 12 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Ambient temperature |
-20, 80 °C |
| Impact energy in end positions |
2.5 J |
| Cushioning length |
31 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
4418 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
4712 N |
| Moving mass |
1195 g |
| Moving mass for 0 mm stroke |
1000 g |
| Additional moving mass per 10 mm stroke |
39 g |
| Product weight |
4553 g |
| Basic weight for 0 mm stroke |
3728 g |
| Additional weight per 10 mm stroke |
152 g |
| Type of mounting |
Via female thread, With accessories |
| Pneumatic connection |
G1/2 |
| Note on materials |
RoHS-compliant |
| Material cover |
Coated die-cast aluminium |
| Material piston seal |
TPE-U(PU) |
| Material piston |
Wrought aluminium alloy |
| Material piston rod |
High-alloy steel |
| Material piston rod wiper |
TPE-U(PU) |
| Buffer seal material |
TPE-U(PU) |
| Material of cushioning boss |
POM |
| Material cylinder barrel |
Smooth-anodised wrought aluminium alloy |
| Material nut |
Galvanised steel |
| Material rod wiper |
TPE-E |
| Material bearing |
Metal polymer compound |
| Material collar screws |
Galvanised steel |
