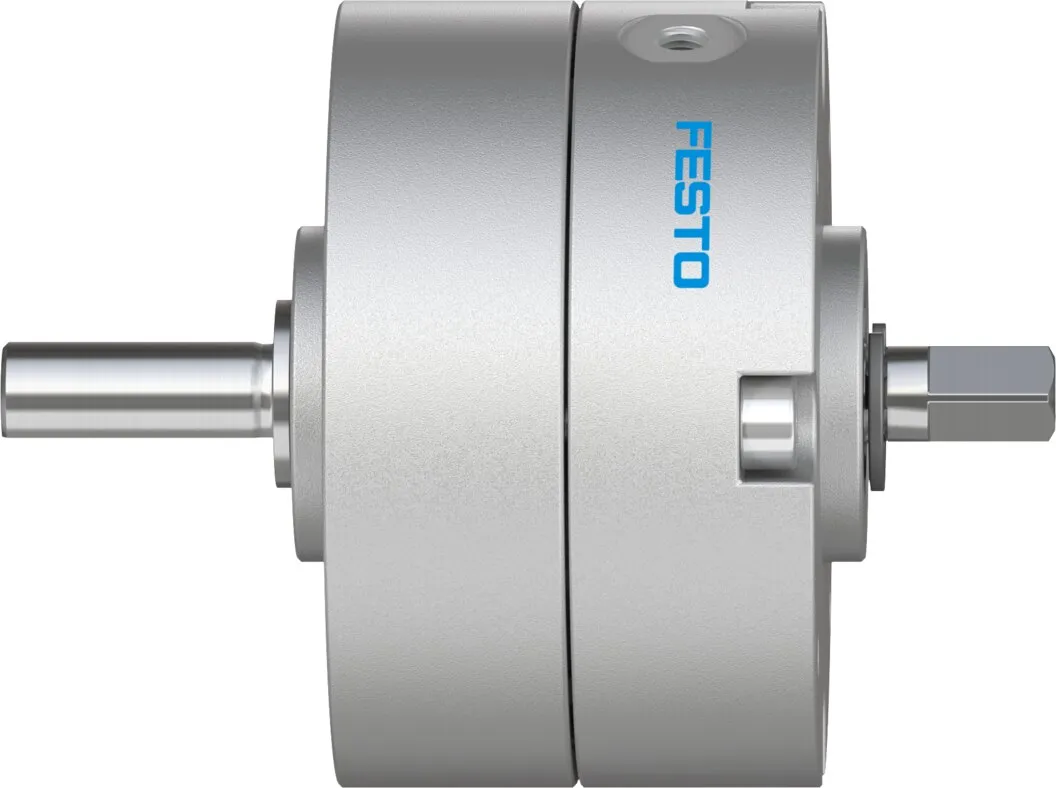

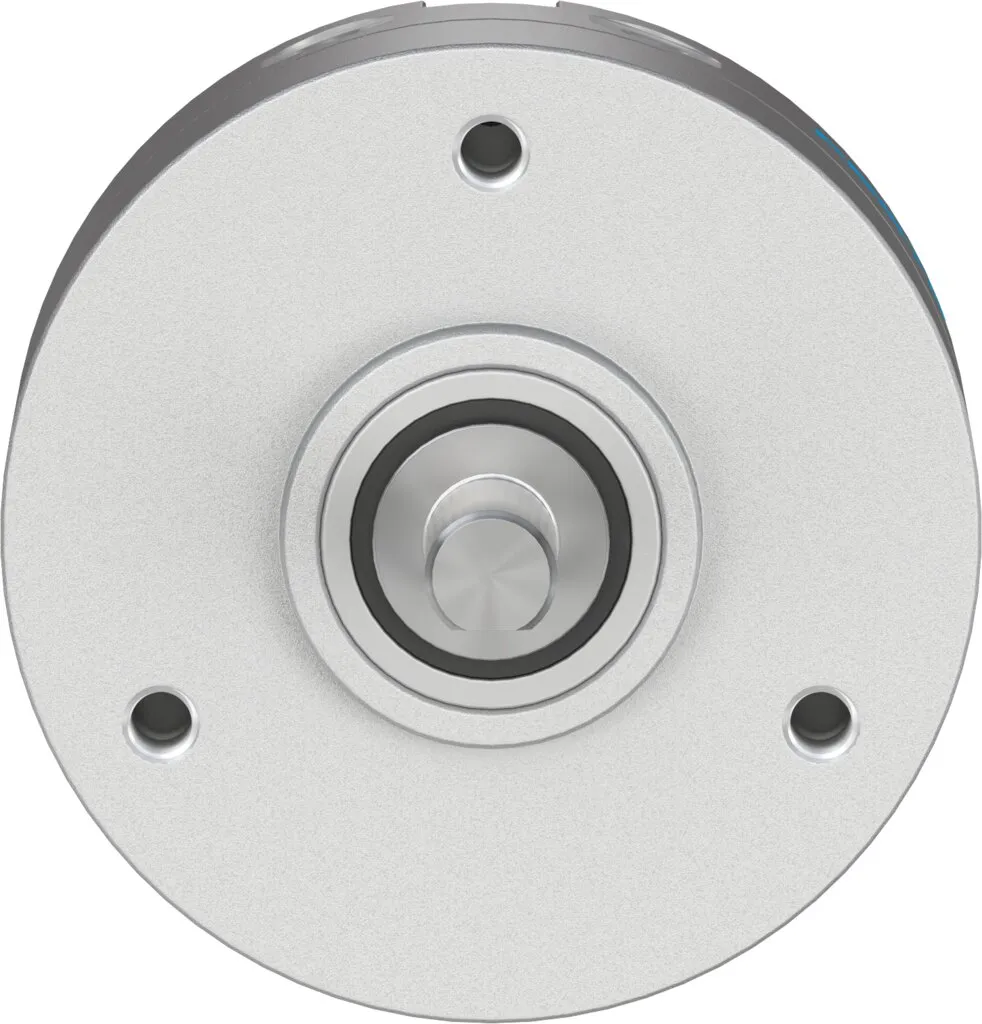

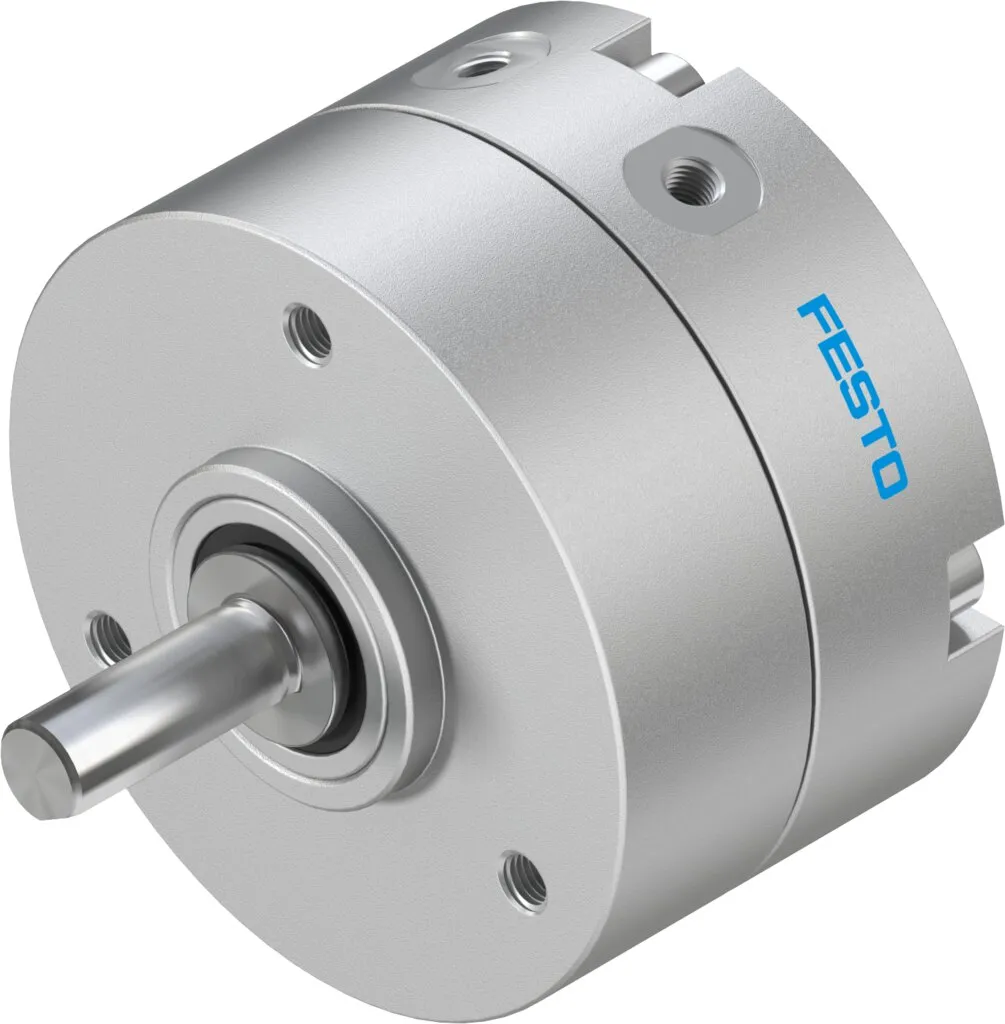

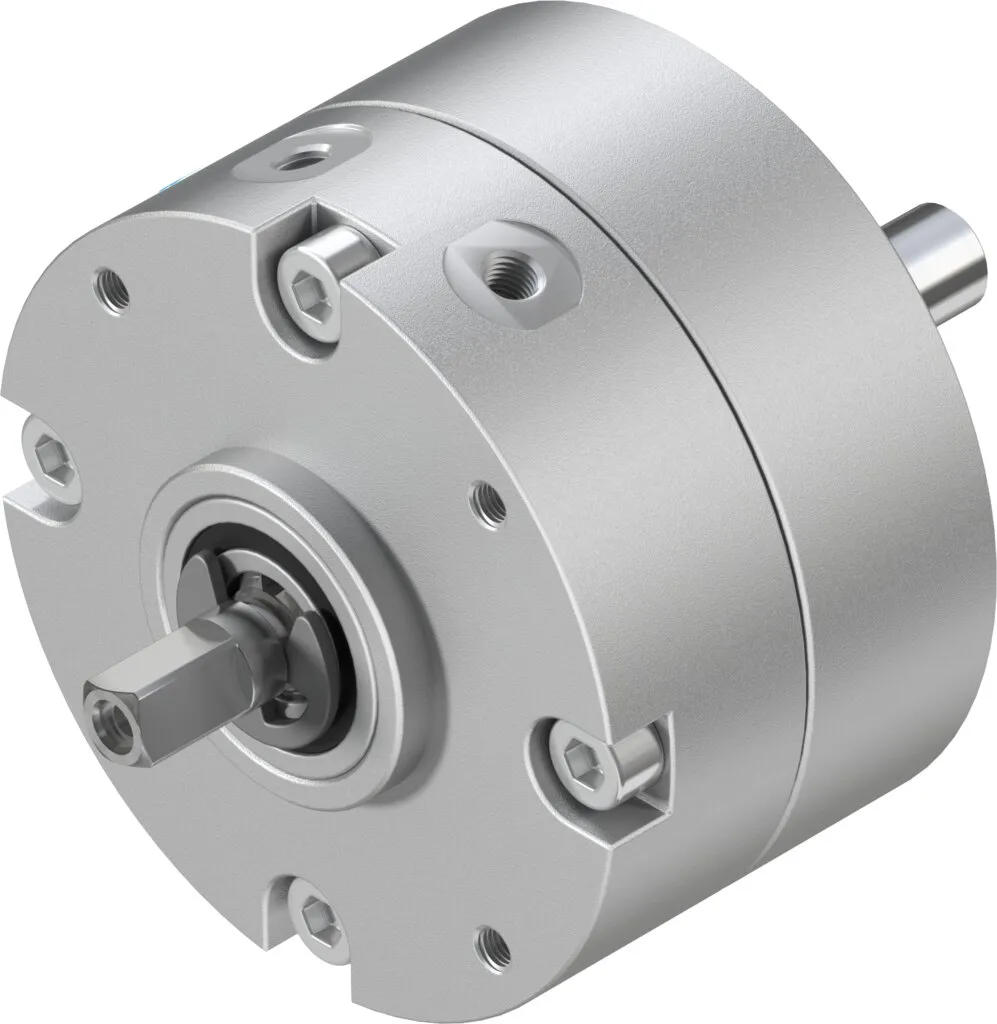

Festo DRVS-8-90-P-EX4
Double-acting semi-rotary drive with rotary vane , Lighter than other semi-rotary drives , Fixed swivel angle, adjustable swivel angle possible with the help of accessories , Housing protected against…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Double-acting semi-rotary drive with rotary vane , Lighter than other semi-rotary drives , Fixed swivel angle, adjustable swivel angle possible with the help of accessories , Housing protected against splash water and dust , Sustainable in production thanks to reduced use of materials
Specification
| Size |
8 |
|---|---|
| Cushioning angle |
0.5 deg |
| Swivel angle |
90 deg |
| Permissible stop radius |
10 mm |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Mode of operation |
Double-acting |
| Design |
Vane |
| Position detection |
Via proximity switch |
| Symbol |
00991265 |
| Variants |
Spigot shaft |
| Operating pressure |
3.5, 8 bar |
| Max. swivel frequency at 0.6 MPa (6 bar, 87 psi) |
3 Hz |
| Repetition accuracy |
1 deg |
| CE mark (see declaration of conformity) |
To EU Explosion Protection Directive (ATEX) |
| UKCA marking (see declaration of conformity) |
To UK EX instructions |
| Explosion protection certification outside the EU |
EPL Db (GB), EPL Gb (GB) |
| Explosion protection |
Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| ATEX category gas |
II 2G |
| ATEX category dust |
II 2D |
| Explosion ignition protection type for gas |
Ex h IIC T4 Gb X |
| Explosion ignition protection type for dust |
Ex h IIIC T120°C Db X |
| Explosion ambient temperature |
0 °C <= Ta <= +60 °C |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
1 – Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries |
Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom class |
Class 5 according to ISO 14644-1 |
| Ambient temperature |
60 °C |
| Max. stop force |
30 N |
| Max. axial force |
10 N |
| Max. radial force |
20 N |
| Theoretical torque at 0.6 MPa (6 bar, 87 psi) |
0.35 Nm |
| Permissible mass moment of inertia |
0.0013 kgm² |
| Product weight |
68 g |
| Type of mounting |
Via female thread |
| Pneumatic connection |
M3 |
| Note on materials |
RoHS-compliant |
| Material drive shaft |
High-alloy stainless steel |
| Material seals |
TPE-U(PU) |
| Material housing |
Anodised wrought aluminium alloy |
