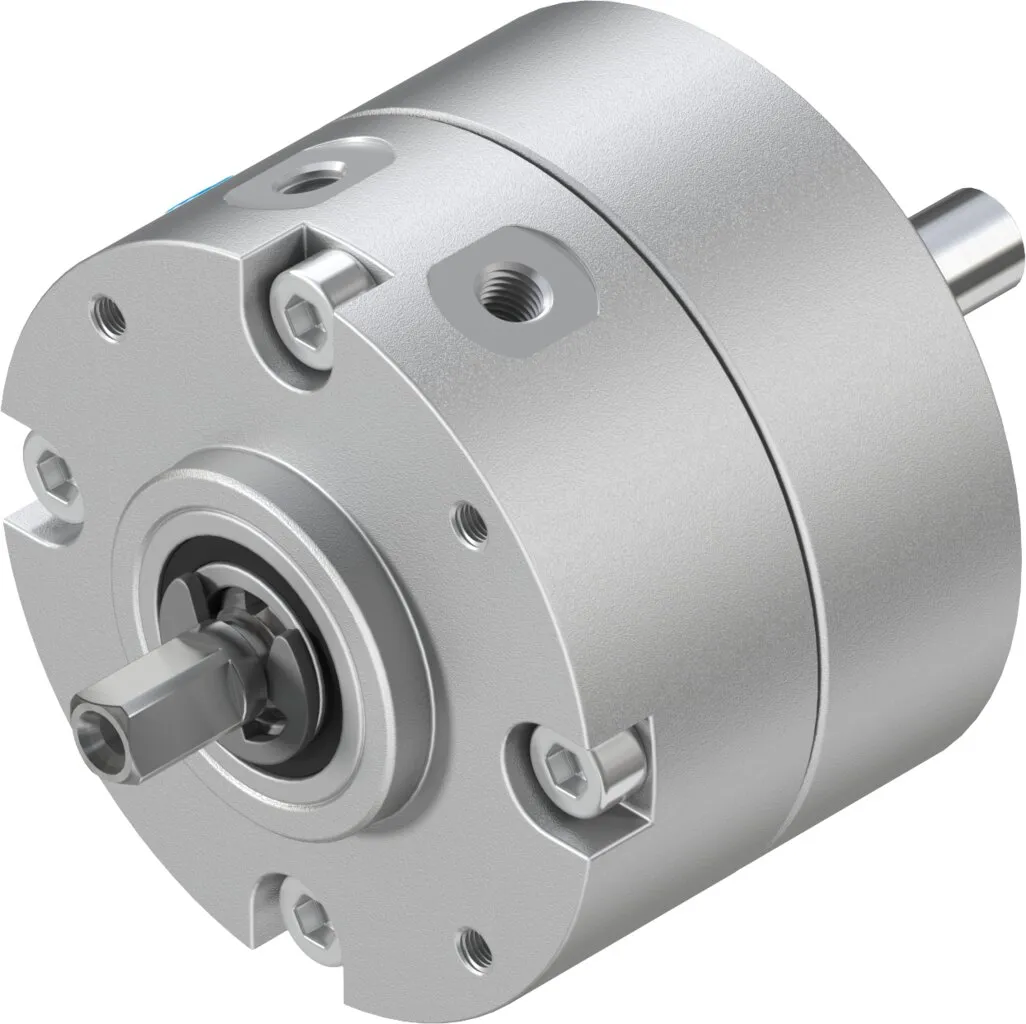

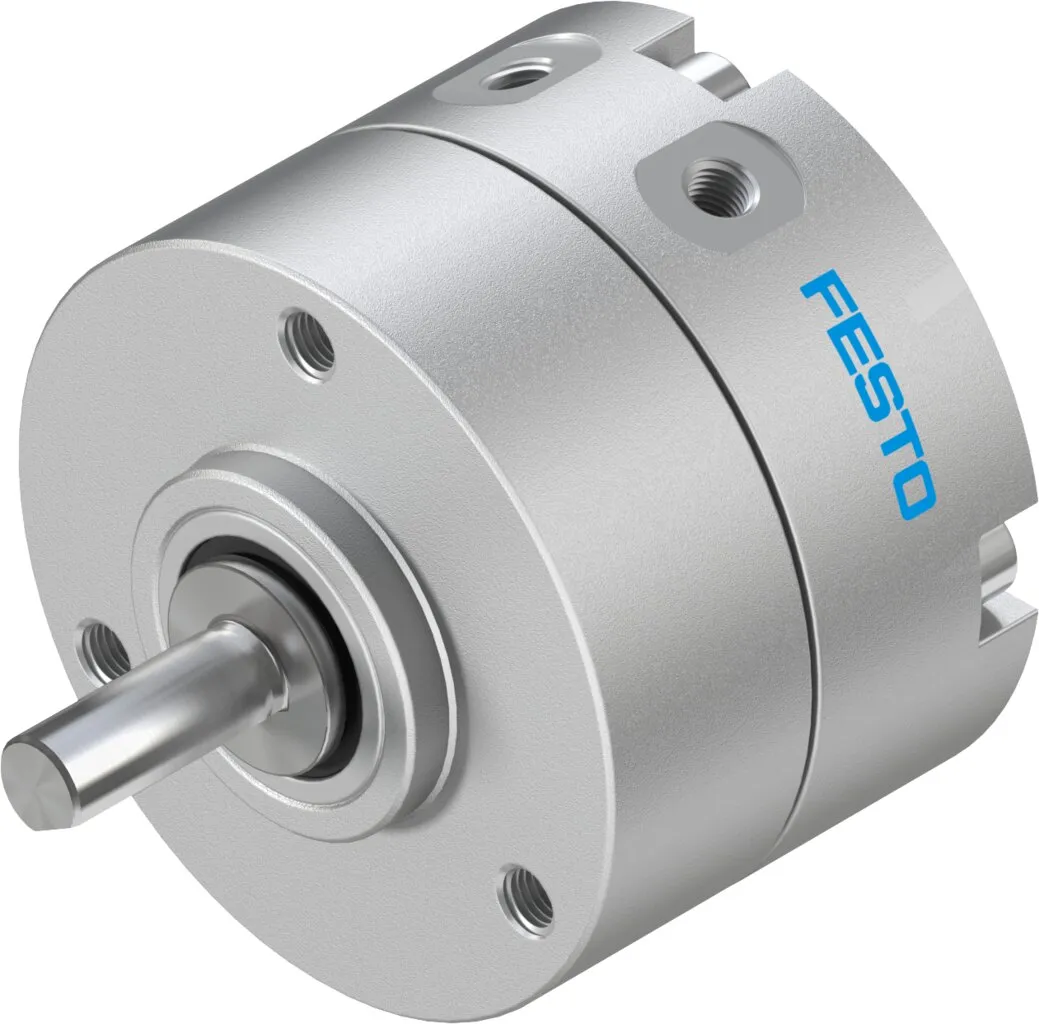

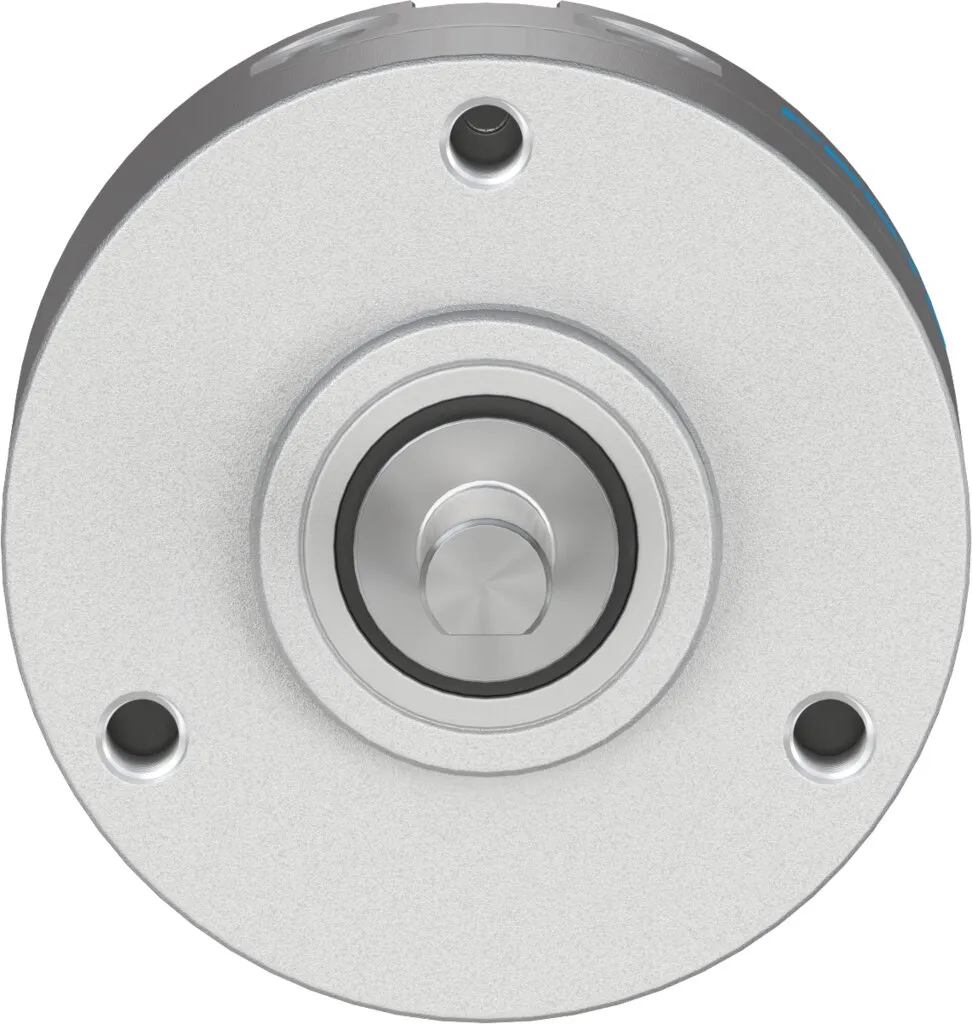

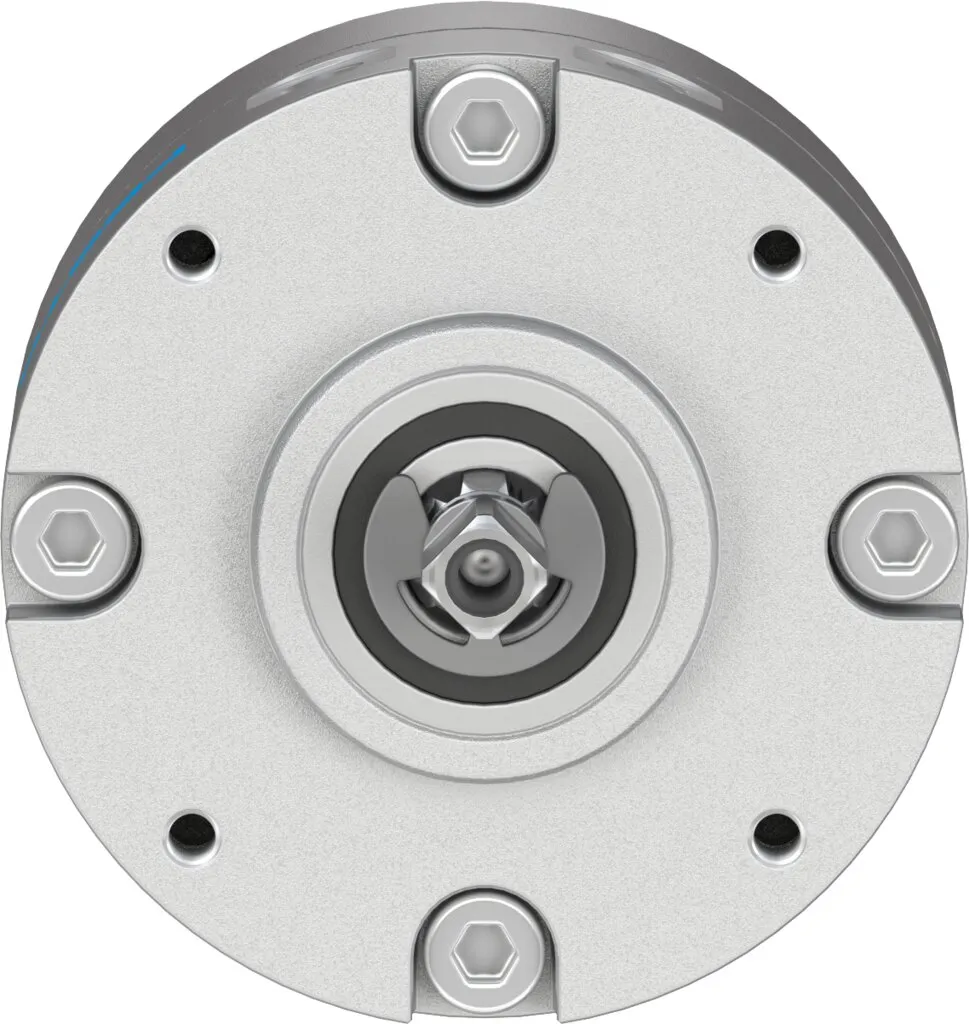

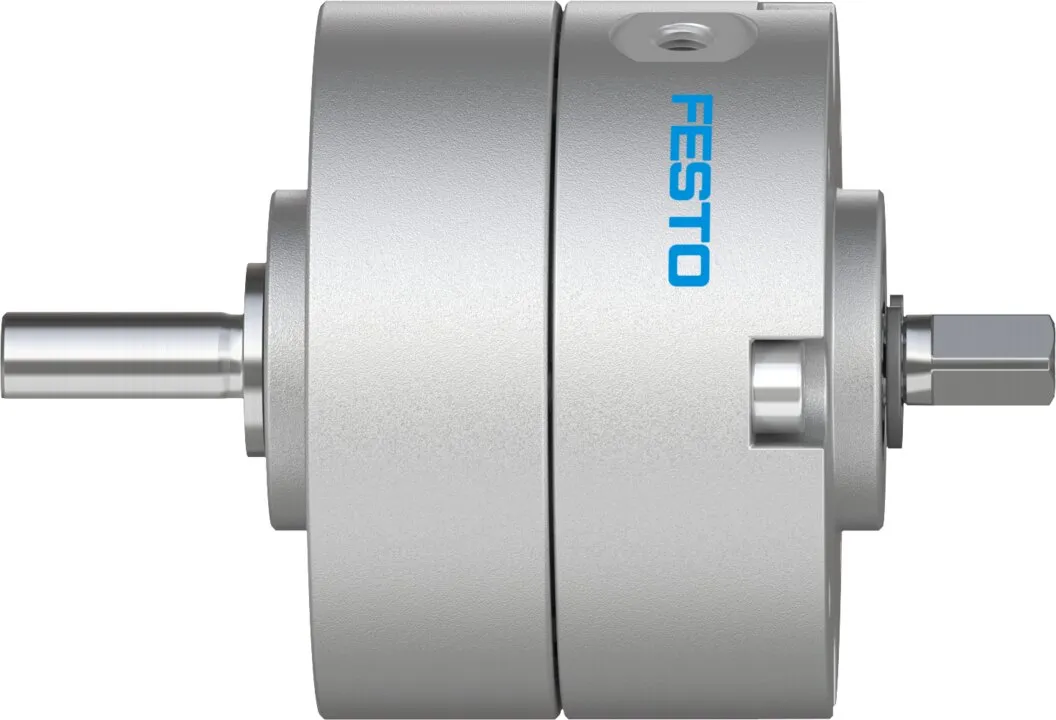

Festo DRVS-6-90-P
Double-acting semi-rotary drive with rotary vane , Lighter than other semi-rotary drives , Fixed swivel angle, adjustable swivel angle possible with the help of accessories , Housing protected against…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Double-acting semi-rotary drive with rotary vane , Lighter than other semi-rotary drives , Fixed swivel angle, adjustable swivel angle possible with the help of accessories , Housing protected against splash water and dust , Sustainable in production thanks to reduced use of materials
Specification
| Size | 6 |
|---|---|
| Cushioning angle | 0.5 deg |
| Swivel angle | 90 deg |
| Permissible stop radius | 10 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Mode of operation | Double-acting |
| Design | Vane |
| Position detection | Via proximity switch |
| Symbol | 00991265 |
| Variants | Spigot shaft |
| Operating pressure | 3.5, 8 bar |
| Max. swivel frequency at 0.6 MPa (6 bar, 87 psi) | 3 Hz |
| Repetition accuracy | 1 deg |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 5 according to ISO 14644-1 |
| Ambient temperature | 60 °C |
| Max. stop force | 15 N |
| Max. axial force | 10 N |
| Max. radial force | 15 N |
| Theoretical torque at 0.6 MPa (6 bar, 87 psi) | 0.15 Nm |
| Permissible mass moment of inertia | 6.5E-4 kgm² |
| Product weight | 38 g |
| Type of mounting | Via female thread |
| Pneumatic connection | M3 |
| Note on materials | RoHS-compliant |
| Material drive shaft | High-alloy stainless steel |
| Material seals | TPE-U(PU) |
| Material housing | Anodised wrought aluminium alloy |
