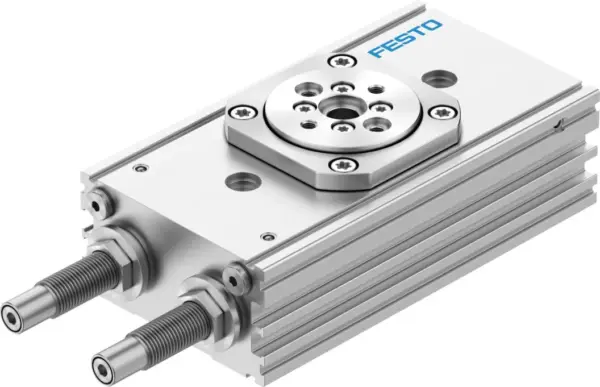

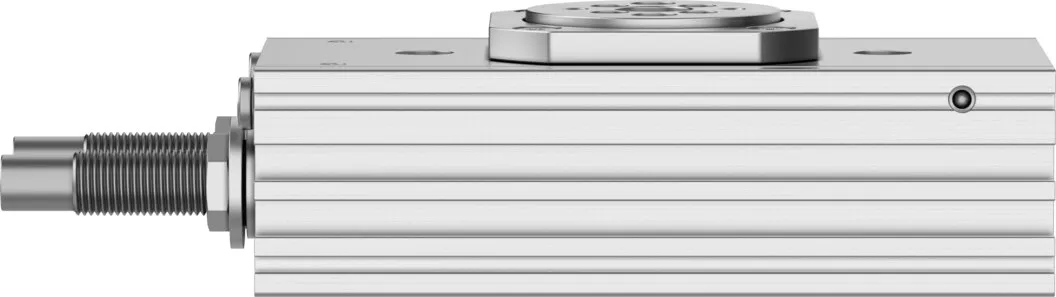

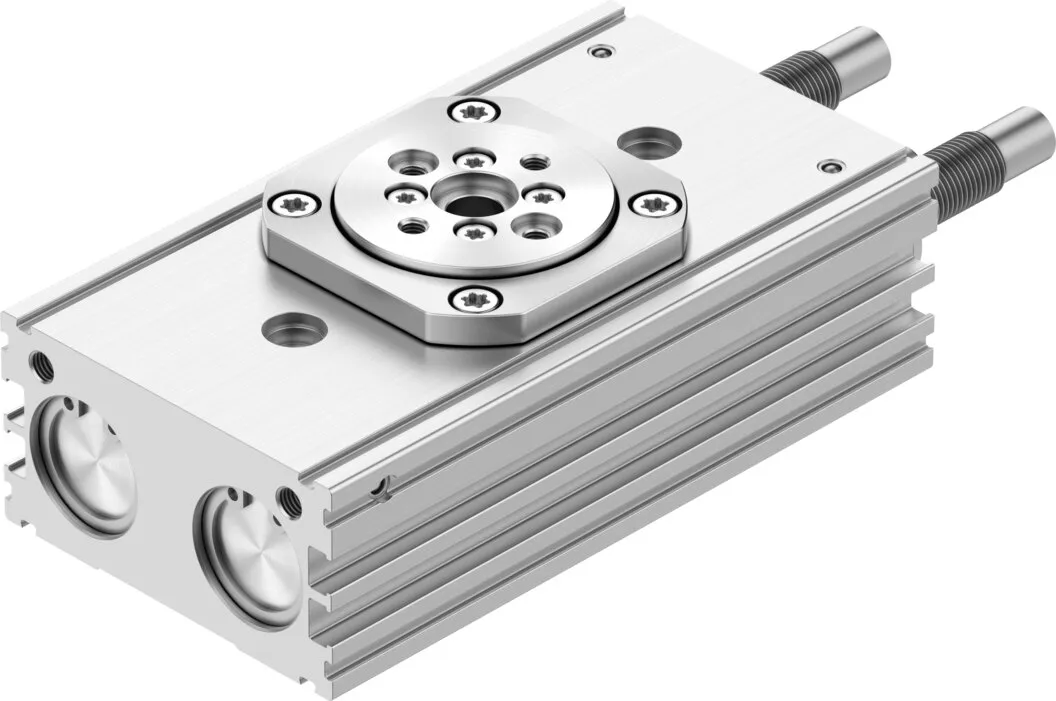

Festo DRRS-20-180-FH-Y9A
Twin-piston drive, power transmission via rack and pinion principle , Attractively priced semi-rotary drive for standard energy consumption (load capacity + speed) , For torque requirements up to 33 N…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Twin-piston drive, power transmission via rack and pinion principle , Attractively priced semi-rotary drive for standard energy consumption (load capacity + speed) , For torque requirements up to 33 Nm at 0.6 MPa , Recommended for production plants for manufacturing Li-ion batteries , Sustainable in production thanks to reduced use of materials
Specification
| Size | 20 |
|---|---|
| Cushioning angle | 32.8 deg |
| Setting range of swivel angle for each end position | +10/-100 deg |
| Axial eccentricity poppet valve | 0.07 mm |
| Swivel angle | 180 deg |
| Min. swivel angle | 80 deg |
| Max. swivel angle | 200 deg |
| Cushioning | Internal hydraulic cushioning normal |
| Mounting position | optional |
| Design | Rack and pinion |
| Position detection | Via proximity switch |
| Symbol | 00991265 |
| Operating pressure | 2, 8 bar |
| Repetition accuracy | 0.07 deg |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom class | Class 9 according to ISO 14644-1 |
| Storage temperature | -20, 60 °C |
| Ambient temperature | 60 °C |
| Theoretical torque at 0.6 MPa (6 bar, 87 psi) | 3.3 Nm |
| Permissible mass moment of inertia | 0.03 kgm² |
| Max. bending moment | 5 Nm |
| Max. axial load static | 350 N |
| Product weight | 790 g |
| Type of mounting | Via mounting kit, With through-hole, Via female thread |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material drive shaft | Tempered steel |
| Material seals | NBR, TPE-U(PU) |
| Material housing | Anodised aluminium |
| Flange shaft material | Wrought aluminium alloy |
| Pinion material | Tempered steel |
