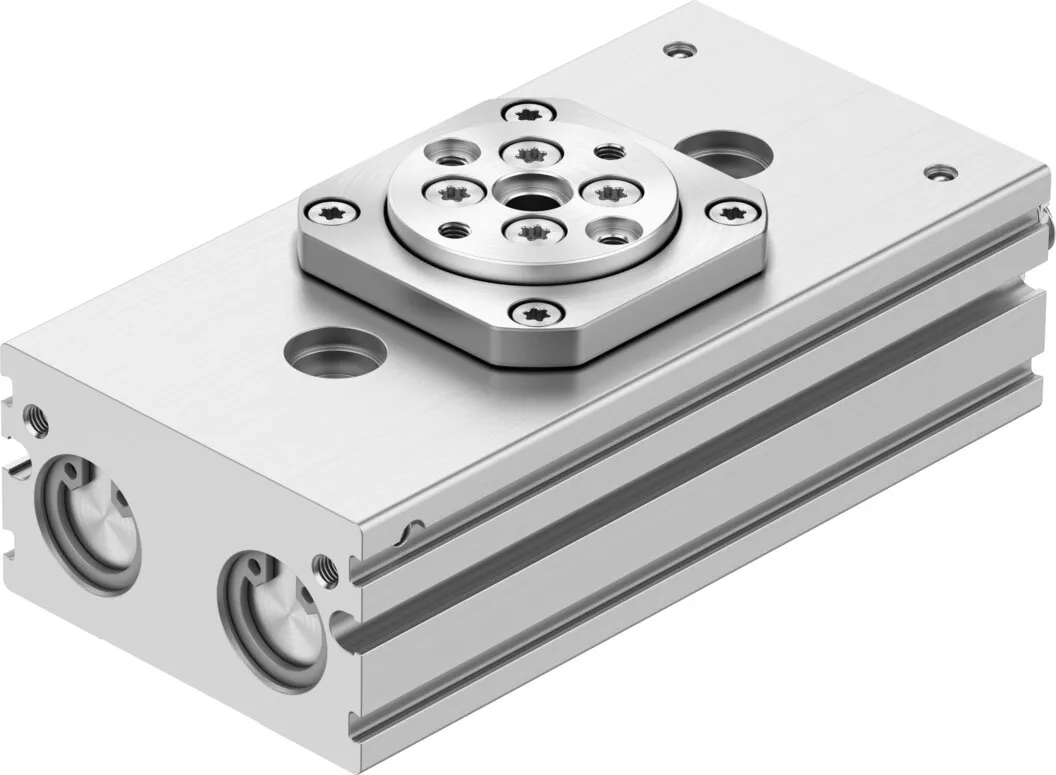

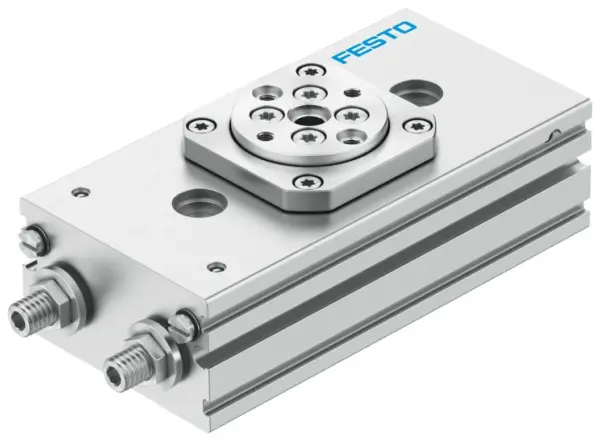

Festo DRRS-12-180-FH-PA
Twin-piston drive, power transmission via rack and pinion principle , Attractively priced semi-rotary drive for standard energy consumption (load capacity + speed) , For torque requirements up to 33 N…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Twin-piston drive, power transmission via rack and pinion principle , Attractively priced semi-rotary drive for standard energy consumption (load capacity + speed) , For torque requirements up to 33 Nm at 0.6 MPa , Recommended for production plants for manufacturing Li-ion batteries , Sustainable in production thanks to reduced use of materials
Specification
| Size |
12 |
|---|---|
| Cushioning angle |
23.5 deg |
| Setting range of swivel angle for each end position |
+10/-100 deg |
| Axial eccentricity poppet valve |
0.05 mm |
| Swivel angle |
180 deg |
| Min. swivel angle |
45 deg |
| Max. swivel angle |
200 deg |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Design |
Rack and pinion |
| Position detection |
Via proximity switch |
| Symbol |
00991265 |
| Operating pressure |
3, 8 bar |
| Repetition accuracy |
0.05 deg |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
1 – Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries |
Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom class |
Class 9 according to ISO 14644-1 |
| Storage temperature |
-20, 60 °C |
| Ambient temperature |
60 °C |
| Theoretical torque at 0.6 MPa (6 bar, 87 psi) |
0.9 Nm |
| Permissible mass moment of inertia |
0.005 kgm² |
| Max. bending moment |
2 Nm |
| Max. axial load static |
80 N |
| Product weight |
310 g |
| Type of mounting |
Via mounting kit, With through-hole, Via female thread |
| Pneumatic connection |
M3 |
| Note on materials |
RoHS-compliant |
| Material seals |
NBR, TPE-U(PU) |
| Material housing |
Anodised aluminium |
| Flange shaft material |
Wrought aluminium alloy |
| Pinion material |
Tempered steel |
