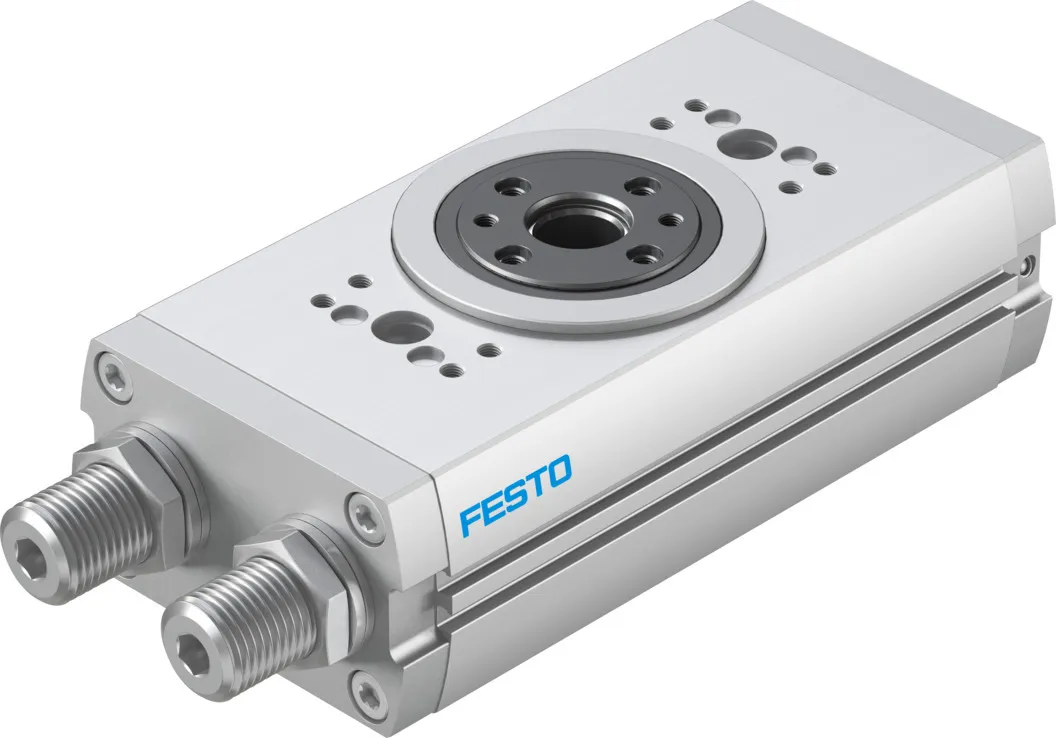

Festo DRRD-63-
Twin-piston drive, power transmission via rack and pinion principle , Premium drive for very high energy absorption (load capacity and speed) , Very high precision and long service life , Many additio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Twin-piston drive, power transmission via rack and pinion principle , Premium drive for very high energy absorption (load capacity and speed) , Very high precision and long service life , Many additional features such as mid-position or air and energy through-feed can be adapted , Sustainable thanks to extended life cycle and easier repairs , Sustainable in production thanks to reduced use of materials
Specification
| Size | 63 |
|---|---|
| Swivel angle | 180 deg |
| Cushioning | Internal hydraulic cushioning hard, External hydraulic cushioning, Internal hydraulic cushioning normal |
| Mounting position | optional |
| Design | Rack and pinion |
| Max. number of intermediate positions | 1 |
| Position detection | Via proximity switch |
| Symbol | 00991265 |
| Operating pressure | 2, 10 bar |
| Mode of operation | Double-acting |
| CE mark (see declaration of conformity) | To EU Explosion Protection Directive (ATEX) |
| UKCA marking (see declaration of conformity) | To UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB), EPL Gb (GB) |
| Explosion protection | Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| ATEX category gas | II 2G |
| ATEX category dust | II 2D |
| Explosion ignition protection type for gas | Ex h IIC T4 Gb |
| Explosion ignition protection type for dust | Ex h IIIC T120°C Db |
| Explosion ambient temperature | -10 °C <= Ta <= +60 °C |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | -10, 60 °C |
| Theoretical torque at 0.6 MPa (6 bar, 87 psi) | 112 Nm |
| Permissible mass moment of inertia | 4, 42 kgm² |
| Type of mounting | With through-hole, Via female thread |
| Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant |
| Material drive shaft | Tempered steel |
| Material cover | Aluminium, Anodised |
| Material seals | NBR, TPE-U(PU) |
| Material housing | Smooth anodised |
