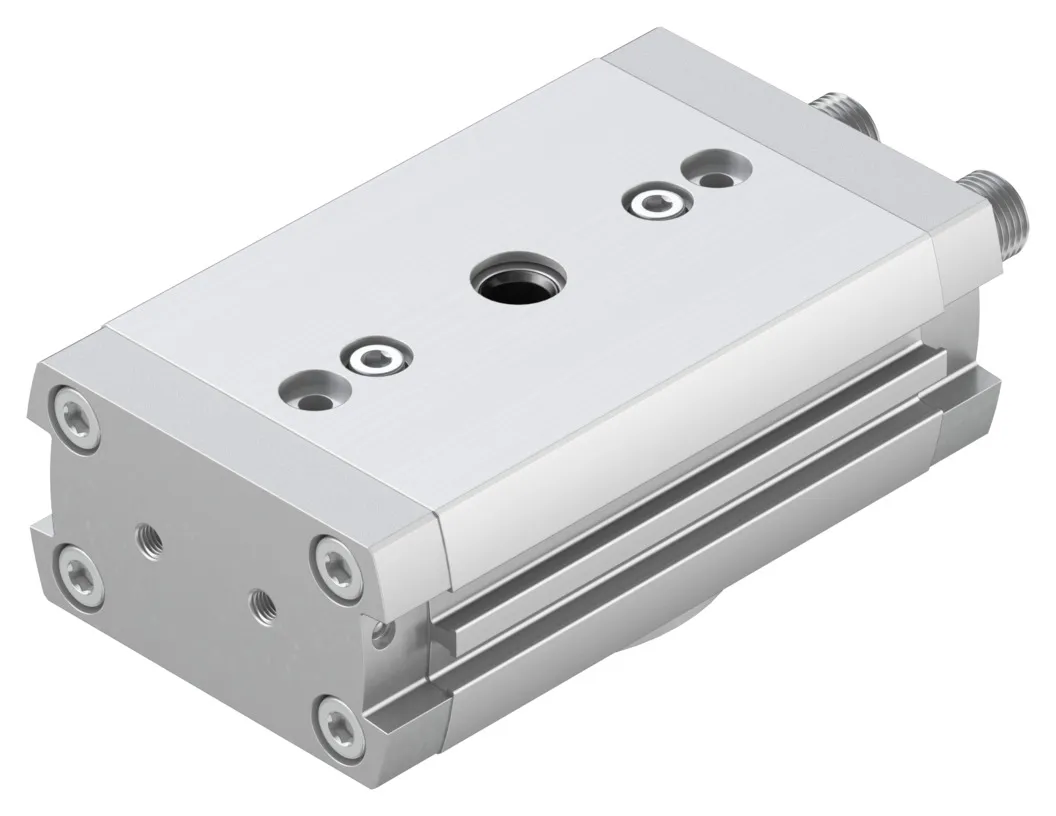

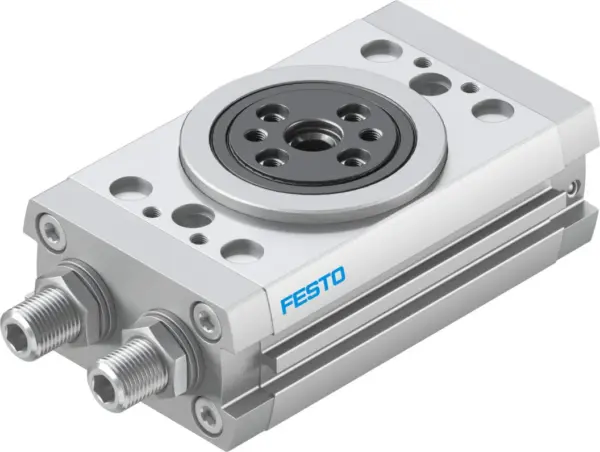

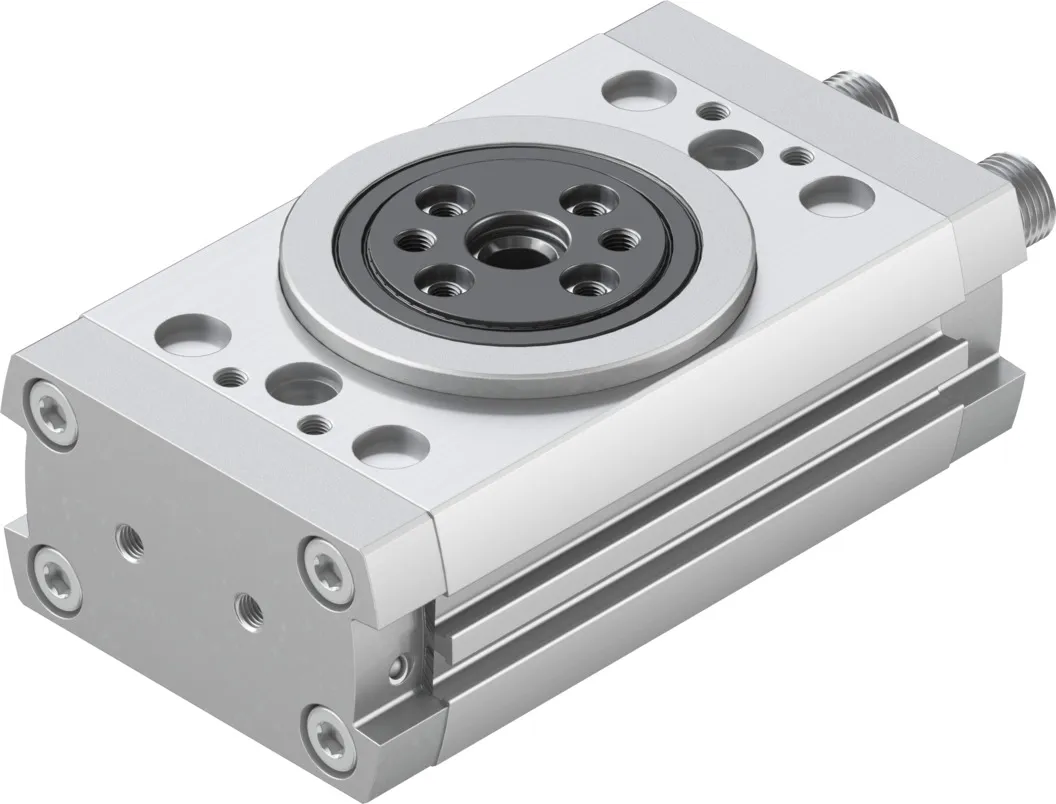

Festo DRRD-20-180-FH-PA
Twin-piston drive, power transmission via rack and pinion principle , Premium drive for very high energy absorption (load capacity and speed) , Very high precision and long service life , Many additio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Twin-piston drive, power transmission via rack and pinion principle , Premium drive for very high energy absorption (load capacity and speed) , Very high precision and long service life , Many additional features such as mid-position or air and energy through-feed can be adapted , Sustainable thanks to extended life cycle and easier repairs , Sustainable in production thanks to reduced use of materials
Specification
| Size |
20 |
|---|---|
| Cushioning angle |
45 deg |
| Setting range of swivel angle for each end position |
+10/-100 deg |
| Swivel angle |
180 deg |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Design |
Rack and pinion |
| Position detection |
Via proximity switch |
| Symbol |
00991265 |
| Operating pressure |
3, 8 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Cleanroom class |
Class 5 according to ISO 14644-1 |
| Ambient temperature |
-10, 60 °C |
| Theoretical torque at 0.6 MPa (6 bar, 87 psi) |
2.41 Nm |
| Permissible mass moment of inertia |
0.04 kgm² |
| Product weight |
839 g |
| Type of mounting |
With through-hole, Via female thread |
| Pneumatic connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material drive shaft |
Tempered steel |
| Material cover |
Wrought aluminium alloy, Anodised |
| Material seals |
NBR, TPE-U(PU) |
| Material housing |
Smooth anodised |
