Festo DPZJ-32-80-P-A-S2
Twin pistons provide twice the force in half the space , Plain or recirculating ball bearing guide , Precision stroke adjustment in the end position
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Twin pistons provide twice the force in half the space , Plain or recirculating ball bearing guide , Precision stroke adjustment in the end position
Specification
| Stroke | 80 mm |
|---|---|
| Adjustable end-position range/length | 10 mm |
| Piston diameter | 32 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Guide | Plain-bearing guide |
| Design | Guidance |
| Position detection | Via proximity switch |

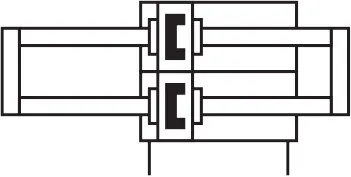

| Symbol | 00991243 |
| Variants | Through piston rod |
| Operating pressure | 1, 10 bar |
| Max. speed | 1 m/s |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20, 80 °C |
| Impact energy in end positions | 0.5 J |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 724 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 724 N |
| Alternative connections | See product drawing |
| Pneumatic connection | G1/8 |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
