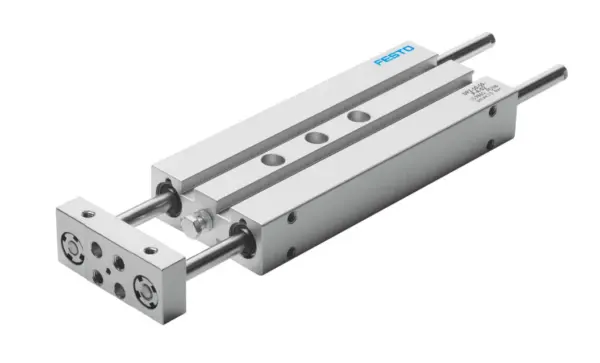

Festo DPZ-25-25-P-A-S2
Twin pistons provide twice the force in half the space , Plain or recirculating ball bearing guide , Precision stroke adjustment in the end position
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Twin pistons provide twice the force in half the space , Plain or recirculating ball bearing guide , Precision stroke adjustment in the end position
Specification
| Stroke |
25 mm |
|---|---|
| Adjustable end-position range/length |
10 mm |
| Piston diameter |
25 mm |
| Operating mode, drive unit |
Yoke |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Guide |
Plain-bearing guide |
| Design |
Guidance |
| Position detection |
Via proximity switch |

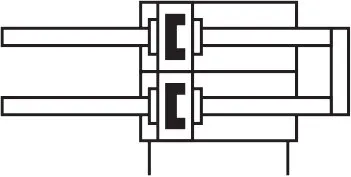

| Symbol |
00991915 |
| Variants |
Through piston rod |
| Operating pressure |
1, 10 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Ambient temperature |
-20, 80 °C |
| Impact energy in end positions |
0.3 J |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
452 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
452 N |
| Alternative connections |
See product drawing |
| Pneumatic connection |
M5 |
| Material cover |
Wrought aluminium alloy |
| Material seals |
NBR |
| Material housing |
Wrought aluminium alloy |
| Material piston rod |
High-alloy stainless steel |
