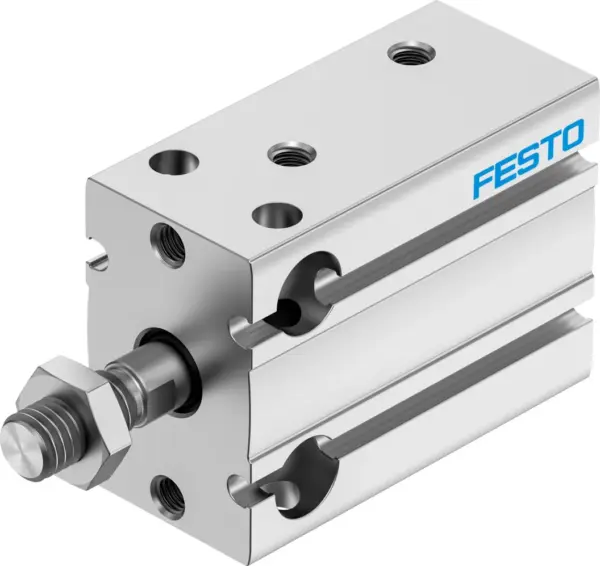

Festo DPDM-…-20- –
Mounting using through-hole and female thread , Compact design , Piston rod variants , For position sensing , Sustainable in production thanks to reduced use of materials
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mounting using through-hole and female thread , Compact design , Piston rod variants , For position sensing , Sustainable in production thanks to reduced use of materials
Specification
| Stroke | 5, 50 mm |
|---|---|
| Piston diameter | 20 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Mode of operation | Double-acting, Pushing, Single-acting, Pulling |
| Design | Piston, Piston rod, Profile barrel |
| Position detection | Via proximity switch |
| Variants | Through piston rod, Through, hollow piston rod, Heat-resistant seals max. 120°C, Piston rod at one end |
| Protection against torque/guide | Guide rod with yoke |
| Operating pressure | 1, 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 0 – No corrosion stress, 1 – Low corrosion stress, 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10, 120 °C |
| Theoretical force at 0.6 MPa (6 bar, 87 psi) | 158, 188 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 158 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 158, 188 N |
| Type of mounting | With through-hole, Via female thread |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material housing | Anodised wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
