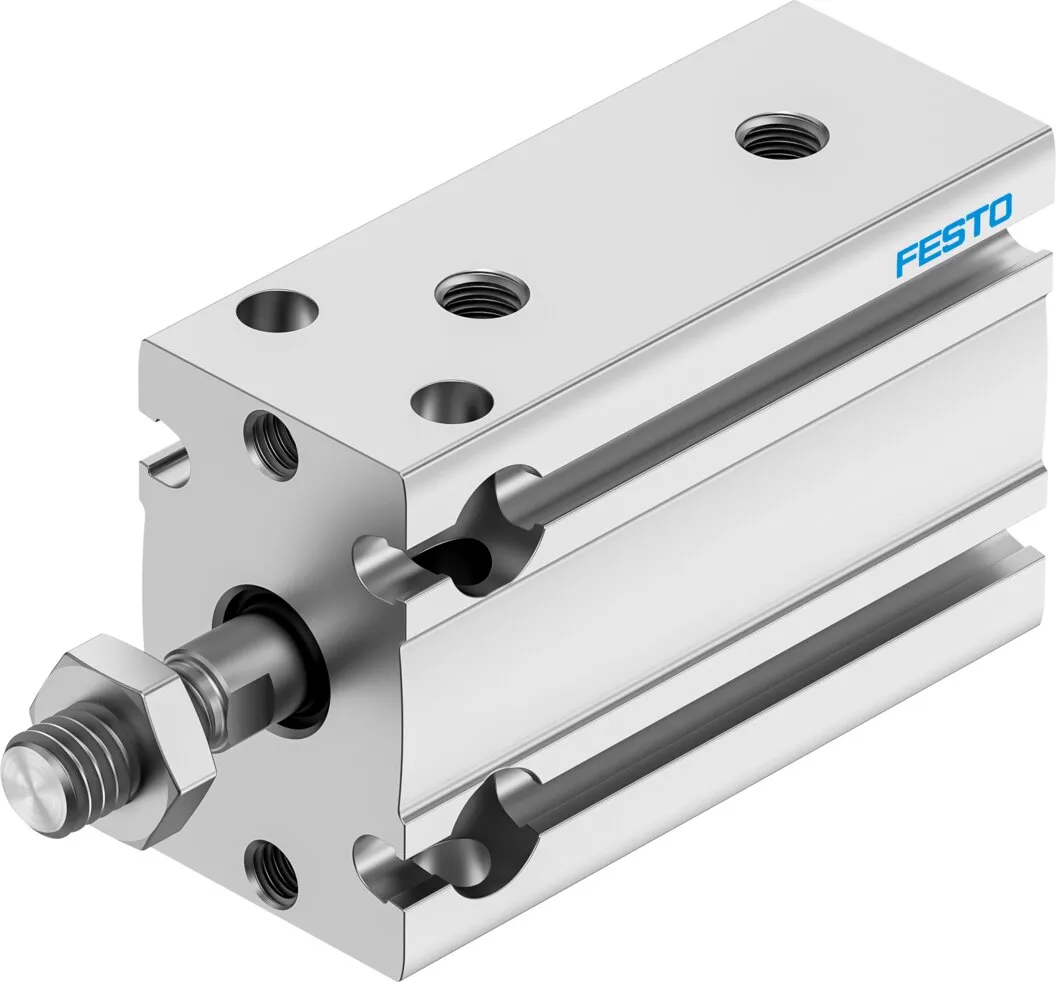

Festo DPDM-…-16- –
Mounting using through-hole and female thread , Compact design , Piston rod variants , For position sensing , Sustainable in production thanks to reduced use of materials
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mounting using through-hole and female thread , Compact design , Piston rod variants , For position sensing , Sustainable in production thanks to reduced use of materials
Specification
| Stroke |
5, 50 mm |
|---|---|
| Piston diameter |
16 mm |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Mode of operation |
Double-acting, Pushing, Single-acting, Pulling |
| Design |
Piston, Piston rod, Profile barrel |
| Position detection |
Via proximity switch |
| Variants |
Through piston rod, Through, hollow piston rod, Heat-resistant seals max. 120°C, Piston rod at one end |
| Protection against torque/guide |
Guide rod with yoke |
| Operating pressure |
1.5, 8 bar |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
0 – No corrosion stress, 1 – Low corrosion stress, 2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries |
Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom class |
Class 6 according to ISO 14644-1 |
| Ambient temperature |
-10, 120 °C |
| Theoretical force at 0.6 MPa (6 bar, 87 psi) |
104, 121 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
104 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
104, 121 N |
| Type of mounting |
With through-hole, Via female thread |
| Pneumatic connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material cover |
Wrought aluminium alloy |
| Material housing |
Anodised wrought aluminium alloy |
| Material piston rod |
High-alloy stainless steel |
