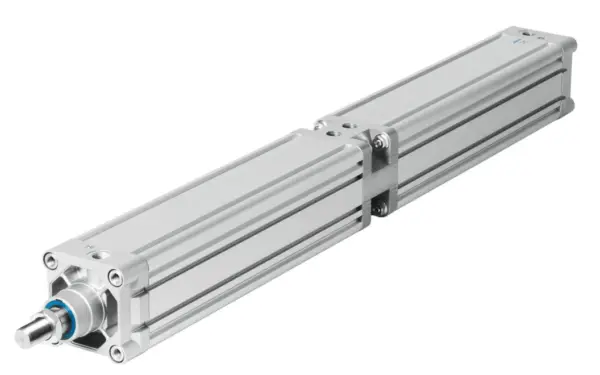

Festo DNCT-40- -PPV-A-S6
Max. 2 cylinders can be combined , Thrust and return force increase , Piston rod with male thread , For position sensing , Mounting hole pattern to ISO 15552
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Max. 2 cylinders can be combined , Thrust and return force increase , Piston rod with male thread , For position sensing , Mounting hole pattern to ISO 15552
Specification
| Stroke | 2, 500 mm |
|---|---|
| Piston diameter | 40 mm |
| Based on standard | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Mode of operation | Double-acting |
| Piston-rod end | Male thread |
| Design | Piston, Piston rod, Profile barrel |
| Position detection | Via proximity switch |

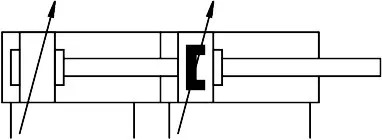

| Symbol | 00995911 |
| Variants | Heat-resistant seals max. 120°C |
| Operating pressure | 0.6, 10 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -20, 120 °C |
| Impact energy in end positions | 0.2 J |
| Cushioning length | 20 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 1266 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 1387 N |
| Type of mounting | With accessories |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium |
| Material seals | FPM |
| Material housing | Smooth anodised |
| Material piston rod | High-alloy steel |
