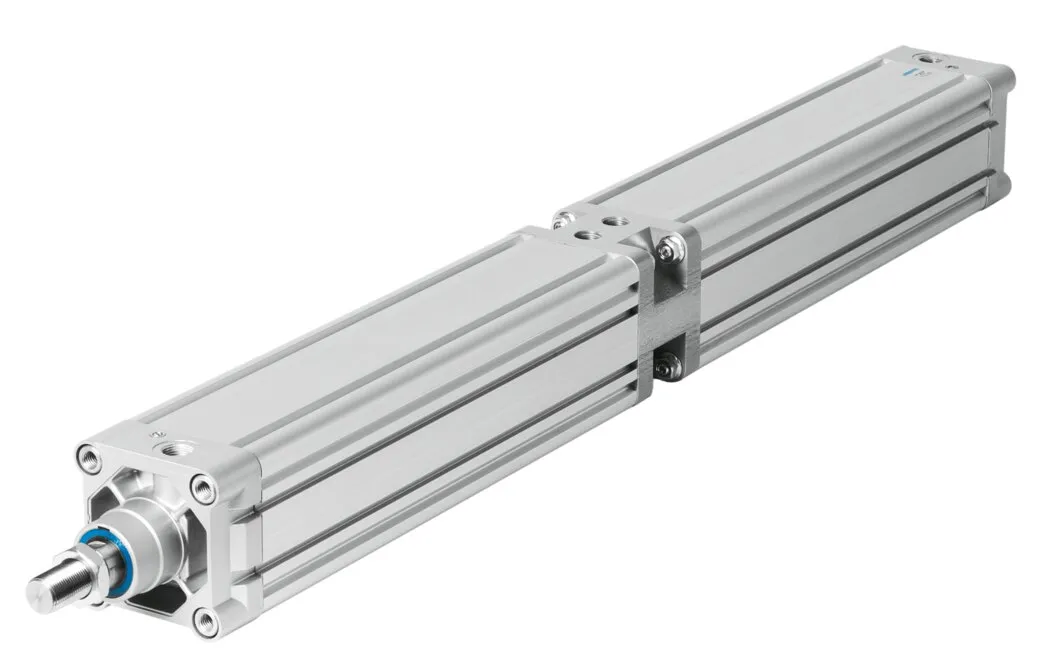

Festo DNCT-100- -PPV-A
Max. 2 cylinders can be combined , Thrust and return force increase , Piston rod with male thread , For position sensing , Mounting hole pattern to ISO 15552
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Max. 2 cylinders can be combined , Thrust and return force increase , Piston rod with male thread , For position sensing , Mounting hole pattern to ISO 15552
Specification
| Stroke |
3, 500 mm |
|---|---|
| Piston diameter |
100 mm |
| Based on standard |
ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Cushioning |
Pneumatic cushioning, adjustable at both ends |
| Mounting position |
optional |
| Mode of operation |
Double-acting |
| Piston-rod end |
Male thread |
| Design |
Piston, Piston rod, Profile barrel |
| Position detection |
Via proximity switch |

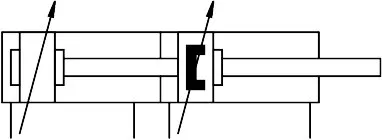

| Symbol |
00995911 |
| Variants |
Piston rod at one end |
| Operating pressure |
0.6, 10 bar |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Ambient temperature |
-20, 80 °C |
| Impact energy in end positions |
1.2 J |
| Cushioning length |
32 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
8836 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
9130 N |
| Type of mounting |
With accessories |
| Pneumatic connection |
G1/2 |
| Note on materials |
RoHS-compliant |
| Material cover |
Die-cast aluminium |
| Material seals |
NBR, TPE-U(PU) |
| Material housing |
Smooth anodised |
| Material piston rod |
High-alloy steel |
