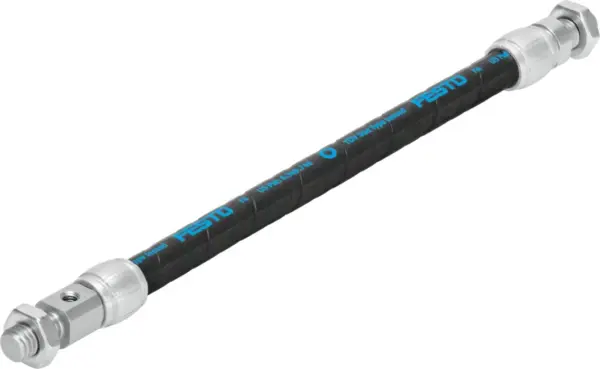

Festo DMSP-5-50N-RM-CM
Single-acting, pulling , 10 times the initial force of a comparable pneumatic cylinder , Friction-free movement: no stick-slip effect , Hermetically sealed design offers protection against dust, dirt…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Single-acting, pulling , 10 times the initial force of a comparable pneumatic cylinder , Friction-free movement: no stick-slip effect , Hermetically sealed design offers protection against dust, dirt and moisture , Outstanding force/weight ratio
Specification
| Size |
5 |
|---|---|
| Diameter increase with max. contraction |
12 mm |
| Stroke |
12.5 mm |
| Max. contraction |
20% of nominal length |
| Max. initial tension |
1% of nominal length |
| Nominal length |
50 mm |
| Repetition accuracy muscle |
<= 1% of nominal length, cyclical |
| Permissible parallelism tolerance |
± 0.5% up to nominal length of 400 mm |
| Permissible angle tolerance |
1 deg |
| Mounting position |
optional |
| Design |
Contracting diaphragm |
| Symbol |
00991121 |
| Operating pressure |
6 bar |
| Mode of operation |
Single-acting, Pulling |
| Approval |
German Technical Control Board (TÜV) |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Ambient temperature |
-5, 60 °C |
| Max. working load freely suspended |
5 kg |
| Theoretical Fluidic Muscle force at max. operating pressure |
140 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi) |
140 N |
| Pneumatic connection |
M3 |
| Note on materials |
RoHS-compliant |
| Material flange |
Wrought aluminium alloy, Colourless anodised |
| Material sleeve |
Colourless anodised |
| Material membrane |
AR, Chloroprene rubber |
| Material nut |
Steel, Galvanised |
