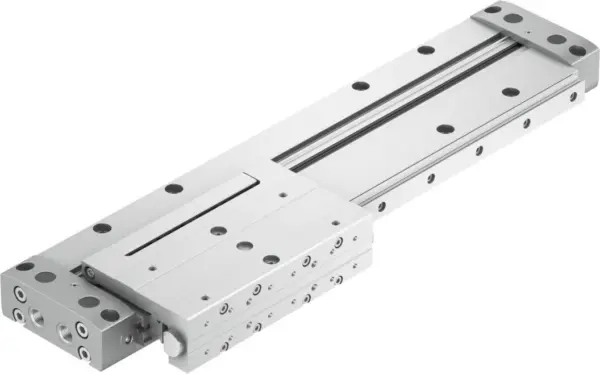

Festo DLGF-KF-20-250-PPSA
Extremely flat design , Choice of two types of cushioning: self-adjusting pneumatic end-position cushioning or external hydraulic shock absorbers , Supply port on the left or right or at both ends or…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Extremely flat design , Choice of two types of cushioning: self-adjusting pneumatic end-position cushioning or external hydraulic shock absorbers , Supply port on the left or right or at both ends or alternatively from below , Loads and devices can be directly mounted on the slide , Basic design DLGF-G without external guide for simple drive functions in small installation spaces , Recirculating ball bearing guide DLGF-KF with a standard recirculating ball bearing guide for high torques and heavy loads , Sustainable thanks to extended life cycle and easier repairs
Specification
| Stroke | 250 mm |
|---|---|
| Piston diameter | 20 mm |
| Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | optional |
| Guide | Recirculating ball bearing guide |
| Coupling design | Positive-locking (slot) |
| Position detection | Via proximity switch |
| Symbol | 00991254 |
| Operating pressure | 2, 8 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | 60 °C |
| Cushioning length | 9.6 mm |
| Max. force Fy | 600 N |
| Max. force -Fz (towards drive) | 700 N |
| Max. force +Fz (away from drive) | 400 N |
| Max. moment Mx | 5.4 Nm |
| Max. moment My | 15 Nm |
| Max. moment Mz | 15 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 188 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 188 N |
| Moving mass | 470 g |
| Product weight | 1901 g |
| Alternative connections | See product drawing |
| Type of mounting | Direct mounting via through-hole, With accessories |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant, Free of copper |
| Material cover | Cast aluminium, coated |
| Material seals | NBR, TPE-U(PU) |
| Material housing | Anodised aluminium |
