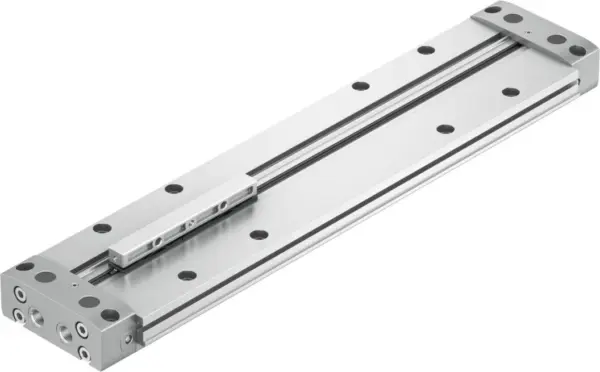

Festo DLGF-G-32-300-PPSA
Extremely flat design , Choice of two types of cushioning: self-adjusting pneumatic end-position cushioning or external hydraulic shock absorbers , Supply port on the left or right or at both ends or…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Extremely flat design , Choice of two types of cushioning: self-adjusting pneumatic end-position cushioning or external hydraulic shock absorbers , Supply port on the left or right or at both ends or alternatively from below , Loads and devices can be directly mounted on the slide , Basic design DLGF-G without external guide for simple drive functions in small installation spaces , Recirculating ball bearing guide DLGF-KF with a standard recirculating ball bearing guide for high torques and heavy loads , Sustainable thanks to extended life cycle and easier repairs
Specification
| Stroke | 300 mm |
|---|---|
| Piston diameter | 32 mm |
| Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | optional |
| Guide | Basic guide |
| Coupling design | Positive-locking (slot) |
| Position detection | Via proximity switch |
| Symbol | 00995280 |
| Operating pressure | 1.5, 8 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | 60 °C |
| Cushioning length | 11.6 mm |
| Max. force -Fz (towards drive) | 276 N |
| Max. force +Fz (away from drive) | 138 N |
| Max. moment Mx | 1.8 Nm |
| Max. moment My | 7.6 Nm |
| Max. moment Mz | 2.9 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 483 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 483 N |
| Moving mass | 208 g |
| Product weight | 3349 g |
| Alternative connections | See product drawing |
| Type of mounting | Direct mounting via through-hole, With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant, Free of copper |
| Material cover | Cast aluminium, coated |
| Material seals | NBR, TPE-U(PU) |
| Material housing | Anodised aluminium |
