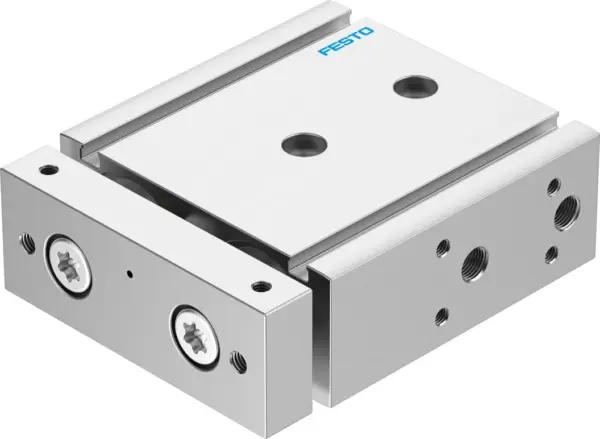

Festo DGTZ-GF-32-20-P-A
Minimal space requirement , Minimal mounting time , High resistance to torques and lateral forces , High rigidity thanks to its guide rods with large diameter and two plain-bearing bushes , Wide range…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Minimal space requirement , Minimal mounting time , High resistance to torques and lateral forces , High rigidity thanks to its guide rods with large diameter and two plain-bearing bushes , Wide range of mounting options , Drive and guide unit in a single housing , Plain bearing
Specification
| Stroke |
20 mm |
|---|---|
| Adjustable end-position range/length |
10 mm |
| Piston diameter |
32 mm |
| Operating mode, drive unit |
Yoke |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Guide |
Plain-bearing guide |
| Design |
Guidance |
| Position detection |
Via proximity switch |
| Symbol |
00991249 |
| Operating pressure |
1, 8 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
1 – Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Cleanroom class |
Class 5 according to ISO 14644-1 |
| Ambient temperature |
-10, 80 °C |
| Impact energy in end positions |
0.4 J |
| Max. effective load dependent upon stroke at defined distance xs |
29.3 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
724 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
966 N |
| Moving mass |
1133 g |
| Product weight |
1133 g |
| Pneumatic connection |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material cover |
Wrought aluminium alloy |
| Material seals |
NBR |
| Material housing |
Anodised wrought aluminium alloy |
| Material piston rod |
High-alloy stainless steel |
