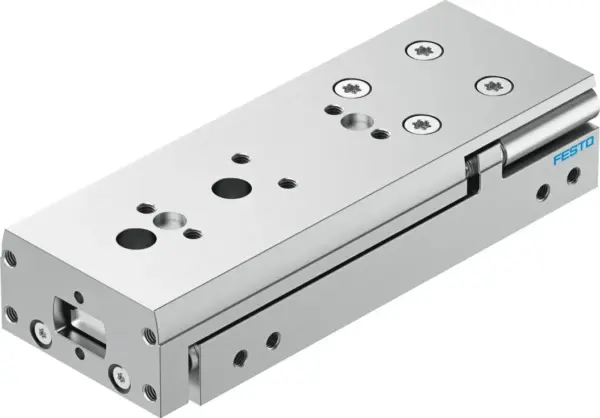

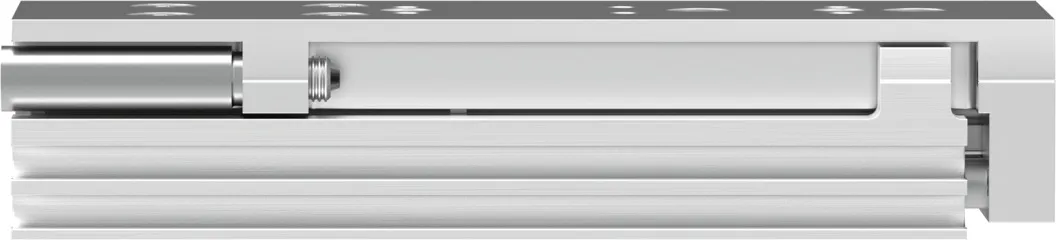

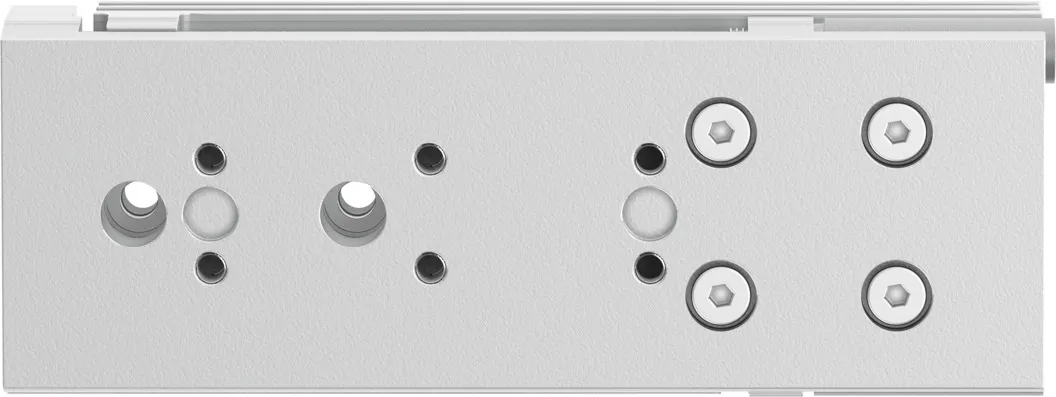

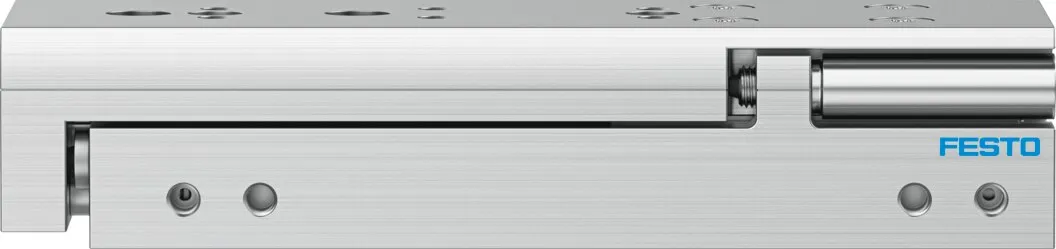

Festo DGST-8-20-PA
Powerful twin-piston drive , Shortest mini slide on the market , Precise recirculating ball bearing guide , Versatile mounting options , Version with mirrored supply port configuration and sensor slot…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Powerful twin-piston drive , Shortest mini slide on the market , Precise recirculating ball bearing guide , Versatile mounting options , Version with mirrored supply port configuration and sensor slots for compact assembly available to order using the configurator , Variants recommended for production systems for manufacturing lithium-ion batteries , Sustainable in production thanks to reduced use of materials
Specification
| Stroke | 20 mm |
|---|---|
| Adjustable end position range/length front | 16.3 mm |
| Adjustable end position range/length rear | 14.4 mm |
| Piston diameter | 8 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Guide | Recirculating ball bearing guide |
| Design | Twin piston, Yoke, Piston rod, Slide |
| Position detection | Via proximity switch |
| Symbol | 00991249 |
| Operating pressure | 21.75, 116 psi |
| Max. speed | 0.8 m/s |
| Repetition accuracy | <= 0.3 mm |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10, 60 °C |
| Impact energy in end positions | 0.05 J |
| Cushioning length | 1.5 mm |
| Max. force Fy | 275 N |
| Max. force Fz | 275 N |
| Max. moment Mx | 2 Nm |
| Max. moment My | 2 Nm |
| Max. moment Mz | 2 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 45 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 60 N |
| Moving mass | 88.4 g |
| Product weight | 170.8 g |
| Type of mounting | With through-hole |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | HNBR |
| Material guide | POM, TPE-E, High-alloy steel |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
