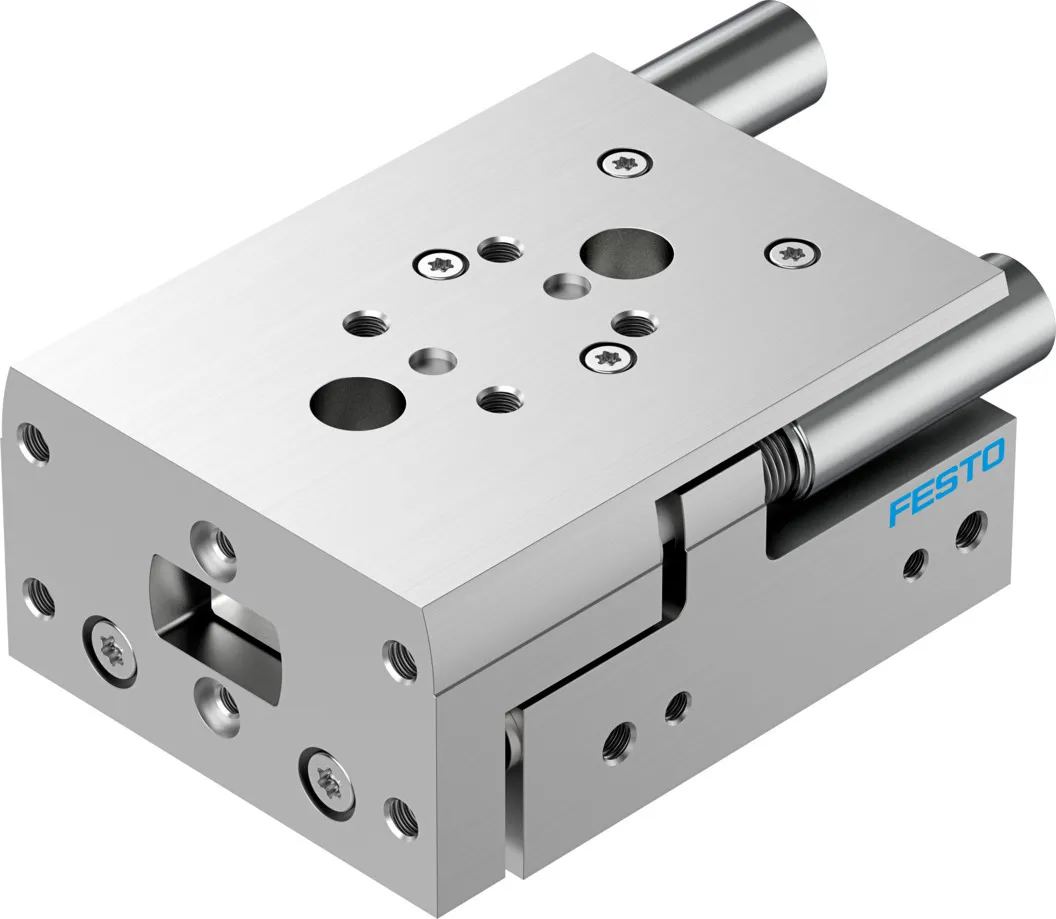

Festo DGST-16-30-Y12A
Powerful twin-piston drive , Shortest mini slide on the market , Precise recirculating ball bearing guide , Versatile mounting options , Version with mirrored supply port configuration and sensor slot…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Powerful twin-piston drive , Shortest mini slide on the market , Precise recirculating ball bearing guide , Versatile mounting options , Version with mirrored supply port configuration and sensor slots for compact assembly available to order using the configurator , Variants recommended for production systems for manufacturing lithium-ion batteries , Sustainable in production thanks to reduced use of materials
Specification
| Stroke |
30 mm |
|---|---|
| Adjustable end position range/length front |
16.9 mm |
| Adjustable end position range/length rear |
15.5 mm |
| Piston diameter |
16 mm |
| Operating mode, drive unit |
Yoke |
| Cushioning |
External hydraulic cushioning |
| Mounting position |
optional |
| Guide |
Recirculating ball bearing guide |
| Design |
Twin piston, Yoke, Piston rod, Slide |
| Position detection |
Via proximity switch |
| Symbol |
00991249 |
| Operating pressure |
14.5, 116 psi |
| Max. speed |
0.8 m/s |
| Repetition accuracy |
<= 0.02 mm |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
1 – Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Cleanroom class |
Class 6 according to ISO 14644-1 |
| Ambient temperature |
-10, 60 °C |
| Impact energy in end positions |
2 J |
| Cushioning length |
5 mm |
| Max. force Fy |
860 N |
| Max. force Fz |
860 N |
| Max. moment Mx |
11.3 Nm |
| Max. moment My |
7.5 Nm |
| Max. moment Mz |
7.5 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
207 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
241 N |
| Moving mass |
310 g |
| Product weight |
576 g |
| Type of mounting |
With through-hole |
| Pneumatic connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material cover |
Wrought aluminium alloy |
| Material seals |
HNBR |
| Material guide |
POM, TPE-E, High-alloy steel |
| Material housing |
Wrought aluminium alloy |
| Material piston rod |
High-alloy stainless steel |
