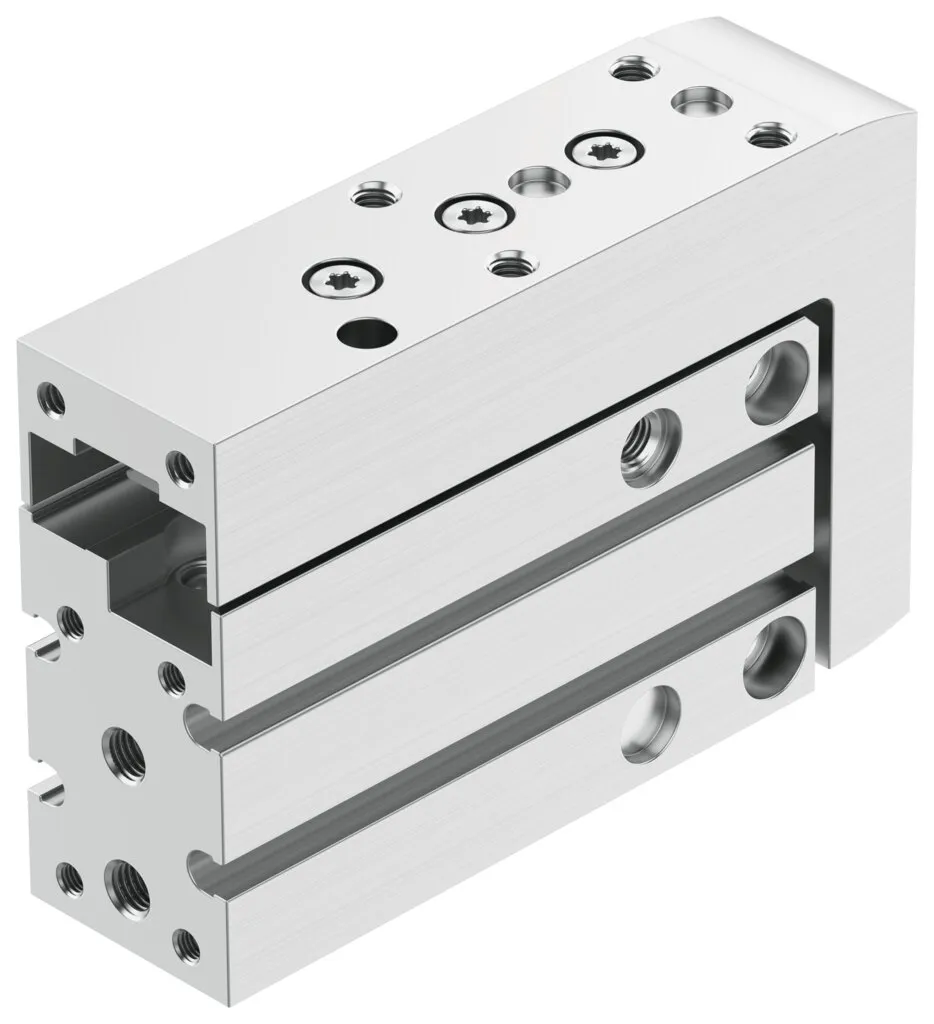

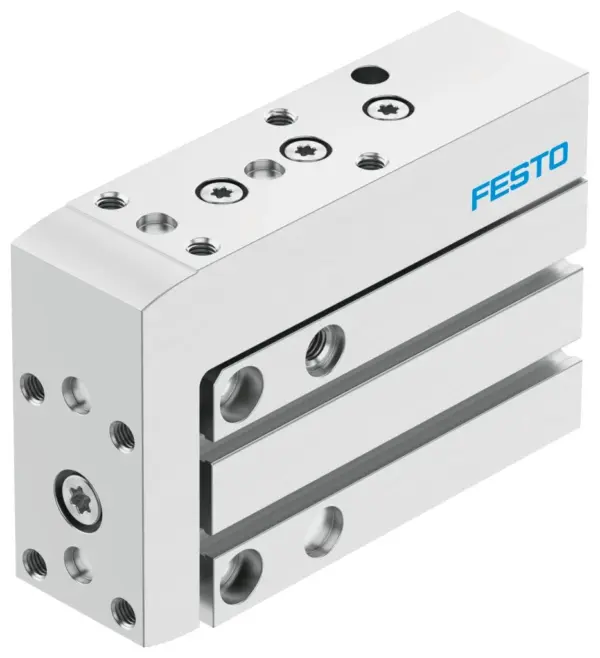

Festo DGSS-16-25-E1A
Slim design , Excellent positioning accuracy , Precise and resilient roller bearing guide , Optimum price/performance ratio , Slide and yoke plate from one component , Can be operated without addition…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Slim design , Excellent positioning accuracy , Precise and resilient roller bearing guide , Optimum price/performance ratio , Slide and yoke plate from one component , Can be operated without additional cushioning elements , Optional: stroke adjustment and external cushioning using accessories , Recommended for production systems for manufacturing lithium-ion batteries
Specification
| Stroke |
25 mm |
|---|---|
| Size |
16 |
| Piston diameter |
16 mm |
| Cushioning |
Elastomer cushioning, double-sided, stroke not adjustable |
| Mounting position |
optional |
| Guide |
Recirculating ball bearing guide |
| Design |
Yoke, Piston rod, Slide |
| Position detection |
Via proximity switch |
| Symbol |
00991737 |
| Operating pressure |
14.5, 116 psi |
| Max. speed |
0.5 m/s |
| Repetition accuracy |
<= 0.3 mm |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
1 – Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries |
Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom class |
Class 6 according to ISO 14644-1 |
| Ambient temperature |
-10, 60 °C |
| Impact energy in end positions |
0.03 J |
| Cushioning length |
0.65 mm |
| Max. force Fy |
859 N |
| Max. force Fz |
859 N |
| Max. moment Mx |
4 Nm |
| Max. moment My |
2.4 Nm |
| Max. moment Mz |
2.4 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
104 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
121 N |
| Moving mass |
109 g |
| Product weight |
241 g |
| Type of mounting |
With through-hole, Via female thread |
| Pneumatic connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material cover |
Wrought aluminium alloy |
| Material seals |
NBR, PU |
| Material guide |
NBR, PA, High-alloy steel |
| Material housing |
Wrought aluminium alloy |
| Material piston rod |
High-alloy stainless steel |
