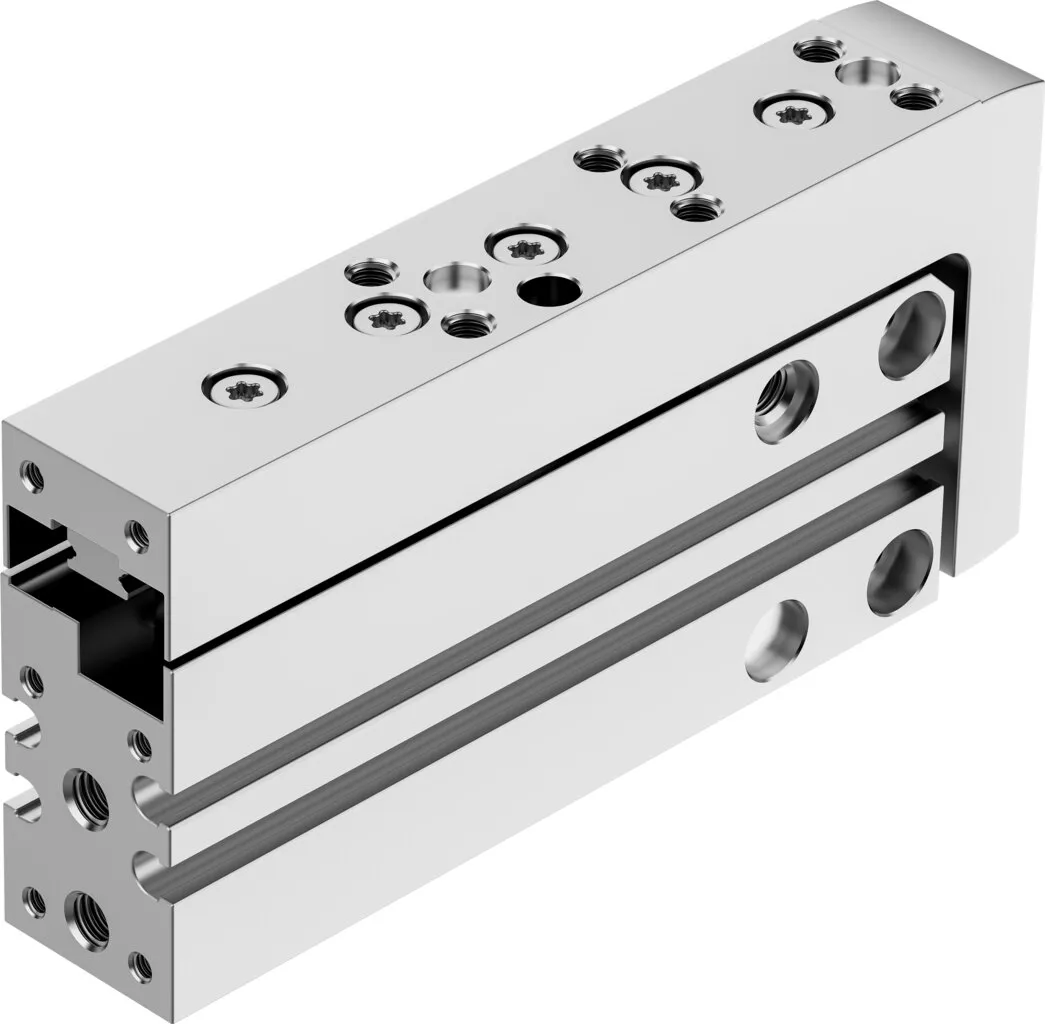

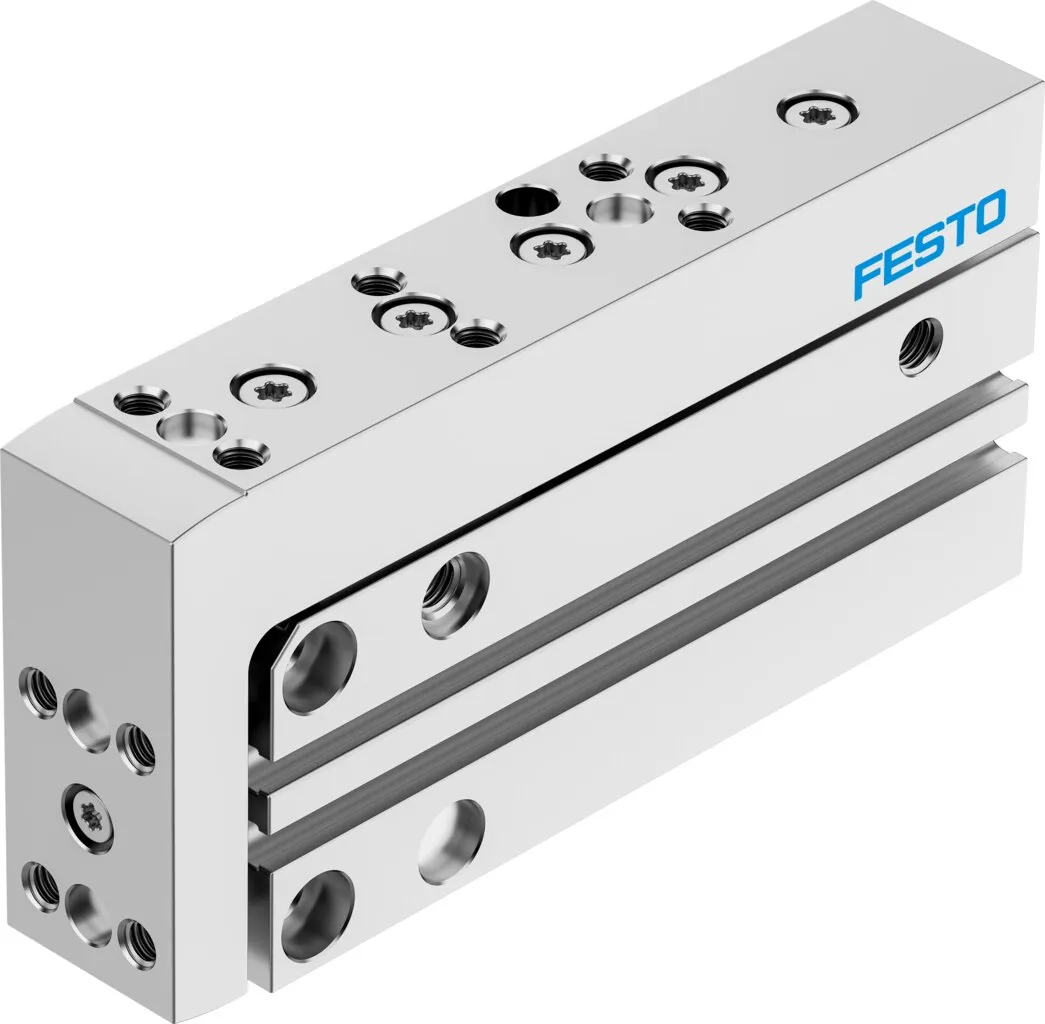

Festo DGSS-10-50-E1A
Slim design , Excellent positioning accuracy , Precise and resilient roller bearing guide , Optimum price/performance ratio , Slide and yoke plate from one component , Can be operated without addition…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Slim design , Excellent positioning accuracy , Precise and resilient roller bearing guide , Optimum price/performance ratio , Slide and yoke plate from one component , Can be operated without additional cushioning elements , Optional: stroke adjustment and external cushioning using accessories , Recommended for production systems for manufacturing lithium-ion batteries
Specification
| Stroke | 50 mm |
|---|---|
| Size | 10 |
| Piston diameter | 10 mm |
| Cushioning | Elastomer cushioning, double-sided, stroke not adjustable |
| Mounting position | optional |
| Guide | Recirculating ball bearing guide |
| Design | Yoke, Piston rod, Slide |
| Position detection | Via proximity switch |
| Symbol | 00991737 |
| Operating pressure | 14.5, 116 psi |
| Max. speed | 0.5 m/s |
| Repetition accuracy | <= 0.3 mm |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10, 60 °C |
| Impact energy in end positions | 0.018 J |
| Cushioning length | 1.5 mm |
| Max. force Fy | 608 N |
| Max. force Fz | 608 N |
| Max. moment Mx | 2.2 Nm |
| Max. moment My | 1.9 Nm |
| Max. moment Mz | 1.9 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 39 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 47 N |
| Moving mass | 84 g |
| Product weight | 202 g |
| Type of mounting | With through-hole, Via female thread |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR, PU |
| Material guide | NBR, PA, High-alloy steel |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
